7.3.7 Data Edit Mode.
DATA
ANGL
SPNO
D-No
PARM
ABN
DATA 2 DATA 3
DATA 4
DATA 1

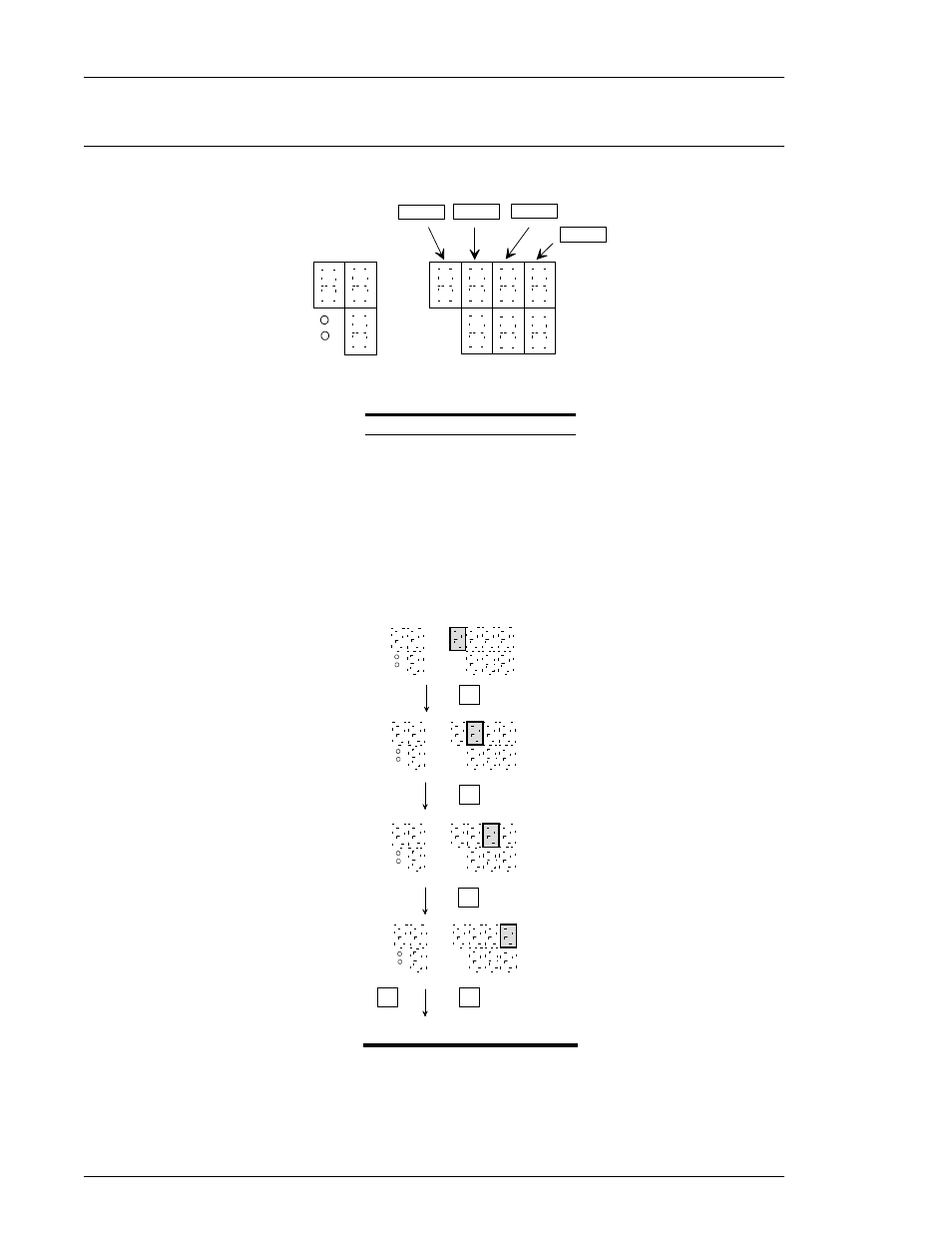

FIG. 7-3-7a Data edit positions
The cursor will appear in the [DATA] display when the machine is in DATA EDIT mode. In
the DATA EDIT mode the MODE key is used as the cursor key. When the MODE key is
pressed, the cursor moves from the 1st data field (at the left) to the 4th data field (right). The
[
↓↓↓↓ ] and [ ↑↑↑↑ ] keys can be used at any position to change or enter data. Once the cursor is in the
last data field (4th), pressing the MODE key returns the system to the PARAMETER
SELECTION mode without finalizing the data. Data that has been entered in DATA EDIT
mode and confirmed with the [SET] key will be displayed.
DATA
ANGL
SPNO
D-No
PARM
ABN
DATA
ANGL
SPNO
D-No
PARM
ABN
DATA
ANGL
SPNO
D-No
PARM
ABN
DATA
ANGL
SPNO
D-No
PARM
ABN
PARAMETER SELECTION MODE
MODE
KEY
MODE
MODE SET
MODE
KEY
KEY KEY
KEY
DATA SAVE NO DATA SAVE
FIG. 7-3-7b Data edit operation
Values in the DATA fields can be changed from 0~9 in the DATA EDIT mode using the [ ↓↓↓↓ ]
and [ ↑↑↑↑ ] keys. Once the values have been selected, pressing the [SET] key saves them and
returns you to PARAMETER CHANGE mode.
