D-NO DATA
OR
_
(DISPLAY [D-No] DISPLAYS THE FOLLOWING DATA
00
10
11
12
.
.
.
.
PARA 0 TORQUE UNIT
PARA 0 TOOL #
PARA 0 TOOL CALIBRATION TORQUE
PARA 0 FEC USE ONLY
PARA 1 ~ PARA 8
54 PARA 8 REVERSE SPEED
60
PARA 8 FREE RUN BOLT THREAD COUNT
COMPANY'S DATA

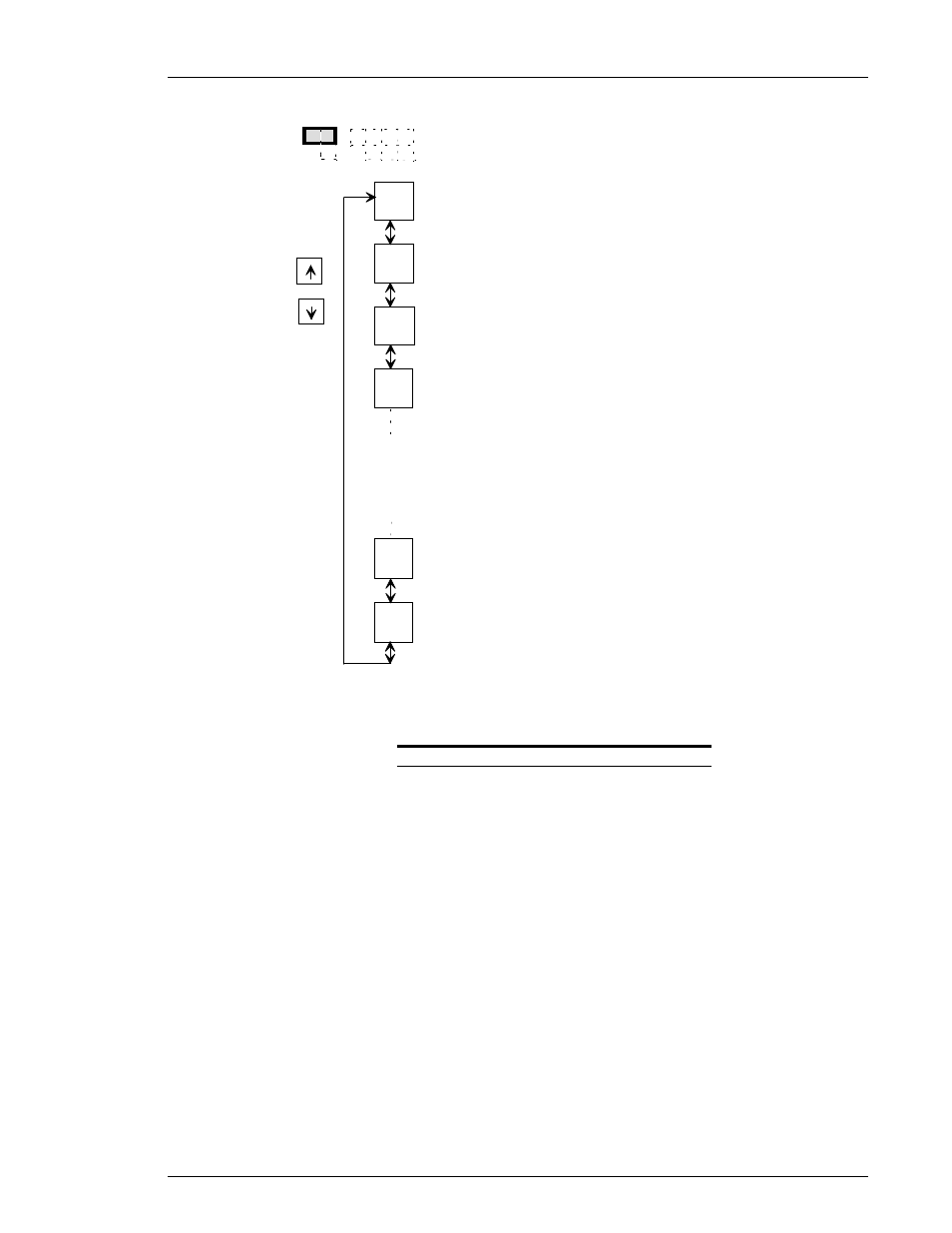

FIG. 7-2-4b Parameter display D-No selection
When parameter display mode is on, the [D-No] display will show 2 digits (00-60) representing the
preset data number. The [DATA] display will show the corresponding preset data value and the
parameter display [PARM] will indicate the parameter number (from 0 ~ 8). Use the [
↓↓↓↓ ] and [ ↑↑↑↑ ] keys
to change the preset data number [D-NO]. If the [D-NO] display is showing the number 60 of the
parameter number 1, pressing the [
↑↑↑↑ ] key will change the [D-NO] display to the number 00 of the
parameter number 2.
You can verify the fastening parameters by pressing the [ ↓↓↓↓ ] and [ ↑↑↑↑ ] keys. It is not possible to alter
these settings (RUN state).
