Oxygen Monitor System 3 Installation
Teledyne Analytical Instruments 23

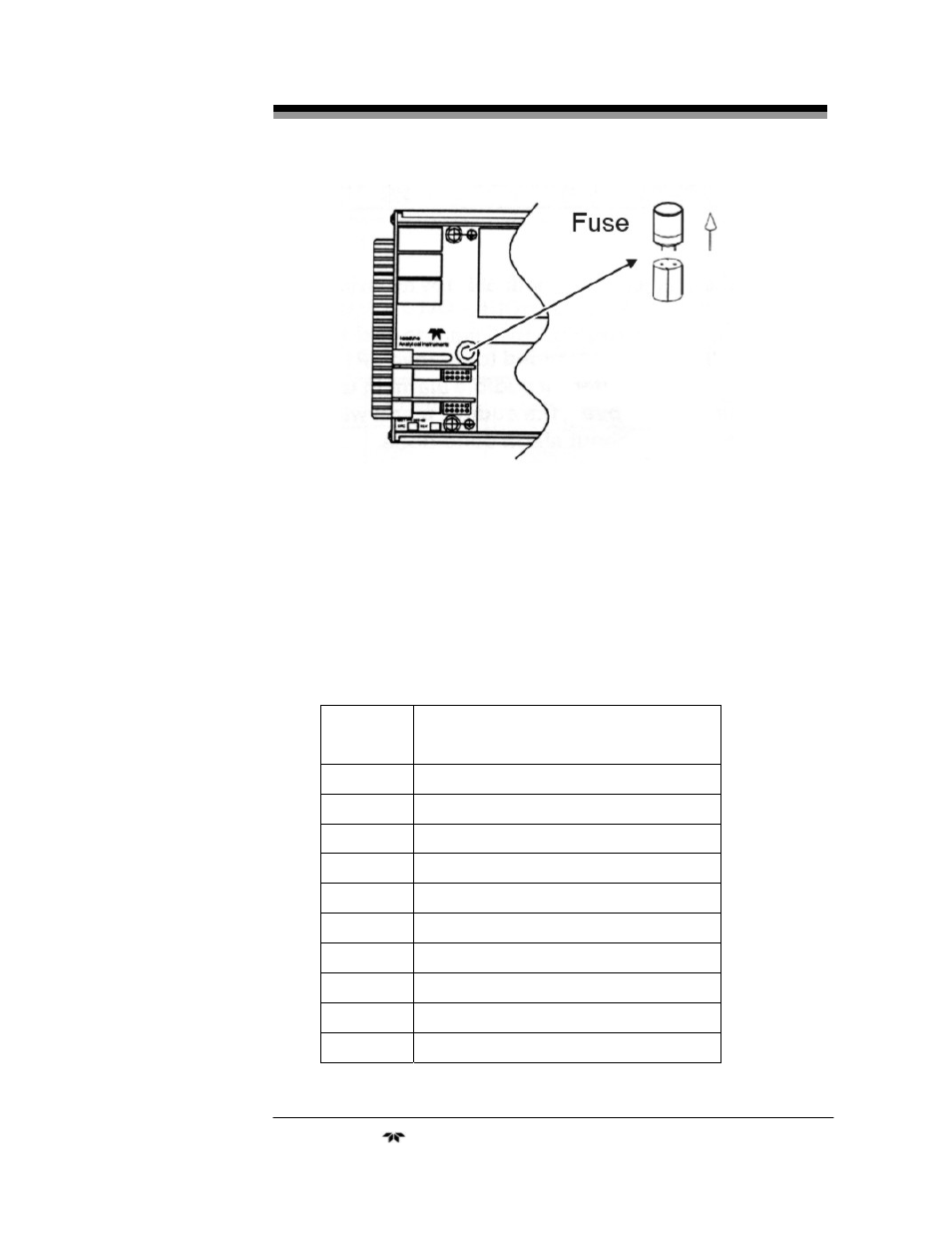

Figure 3-2: Fuse Location
3.7.3 Configuring the Internal Jumper Connections
The Channel Module outputs may be configured by setting the
internal jumpers. In addition there are several factory preset jumpers
configured as shown in the following table. Changing the internal
jumpers requires removing the channel module cover as in section 3.7.1.
Table 3-6: Channel Module Internal Jumper Settings
Standard Jumper Settings
(Factory Preset)
JP8 On (Analog/Digital GND)
JP9 On (Analog/Digital GND)
JP10 Pins 2 & 3 (Model Select)
JP11 Pins 2 & 3 (Model Select)
JP12 Pins 2 & 3 (Model Select)
JP13 Pins 2 & 3 (Model Select)
JP15 On (Mode Control)
JP16 On (Mode Control)
JP17 On (Chassis/Digital GND)
JP18 On (Chassis/Analog GND)
