- 5 -
Inverex S 5KVA
AC I/P
AC O/P
To Primary System Ground
AC Loads
Battery Bank
Vent
（ outlet）
Vent
（ inlet）
Wind
Photovoltaic
Hydro
DC Diversion Load
(for Wind Generator)
Diversion Load
Controller
DC
Disconnect
DC Combiner Box
DC Disconnect
and PVGFP
DC Charger
Controller
DC
Disconnect
DC Diversion Load
(for Hydro Generator)
Diversion Load
Controller
DC Disconnect
Conduit
(if used)
AC Generator
Generator
Disconnect
Battery Enclosure
(if used)

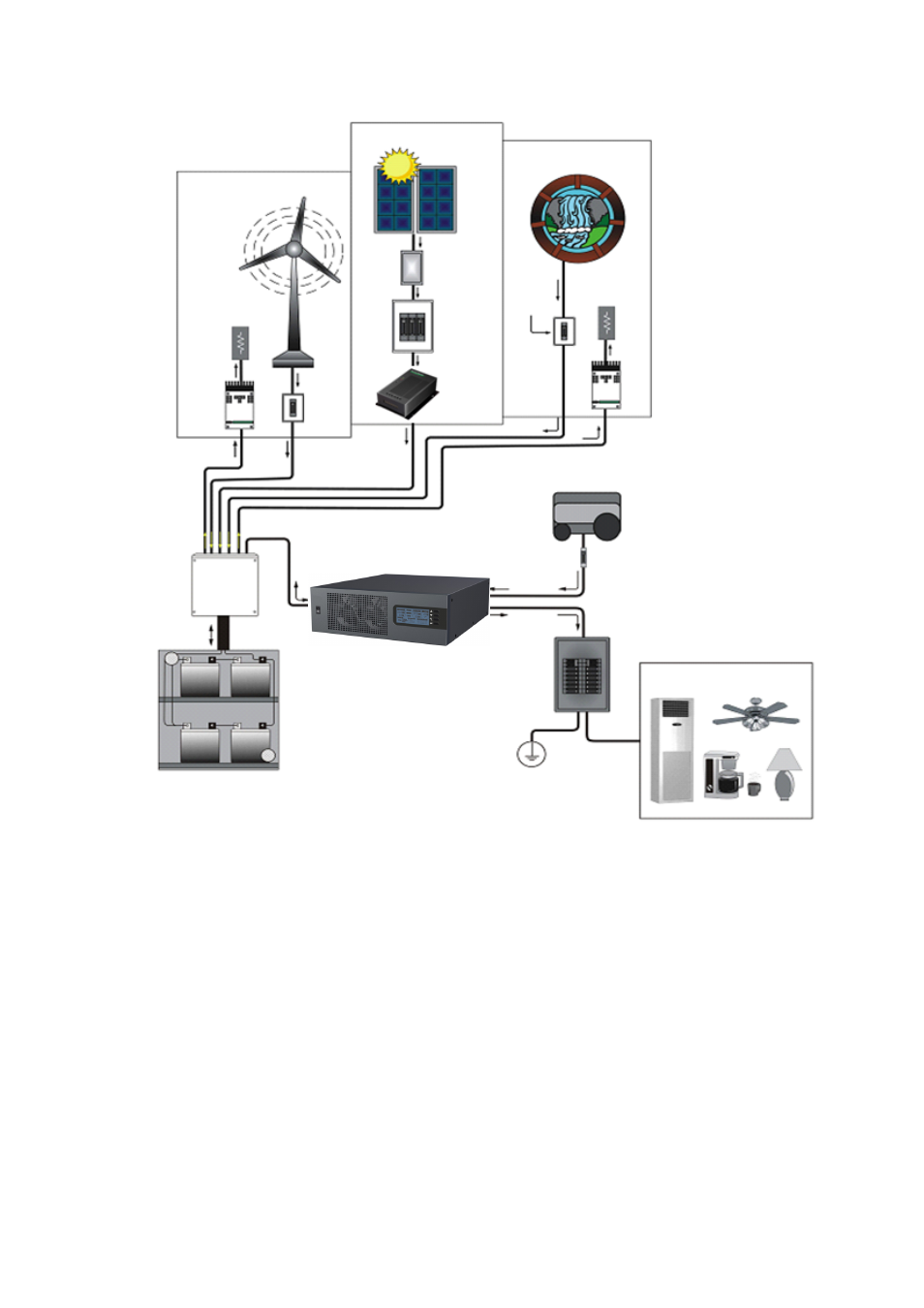

Figure 1-2 Renewable Energy Source
IPS5000 5KVA Inverter can feeds almost all kinds of appliances from home to office environment,
including motor characteristic appliances like tube light, fan, refrigerator and Air conditioner.
Note: Appliances like Air conditioner needs at least 3 minutes to restart in case of a power shortage
occurs in a way that the power turns off then back on again rapidly (time is required to balance
the refrigerant gas in inside circuit); so in order to protect your Air conditioner, please consult
the Air conditioner manufacturer whether they have already provided time delay function
before installing. Otherwise, Inverter will trig overload fault and shut off its output to protect
your appliance but sometimes it is not enough and your Air conditioner can be damaged
internally beyond repair.
