PROLiNK ® PWH2004 User Manual www.prolink2u.com
Revision 1.0 (Aug’09) 4

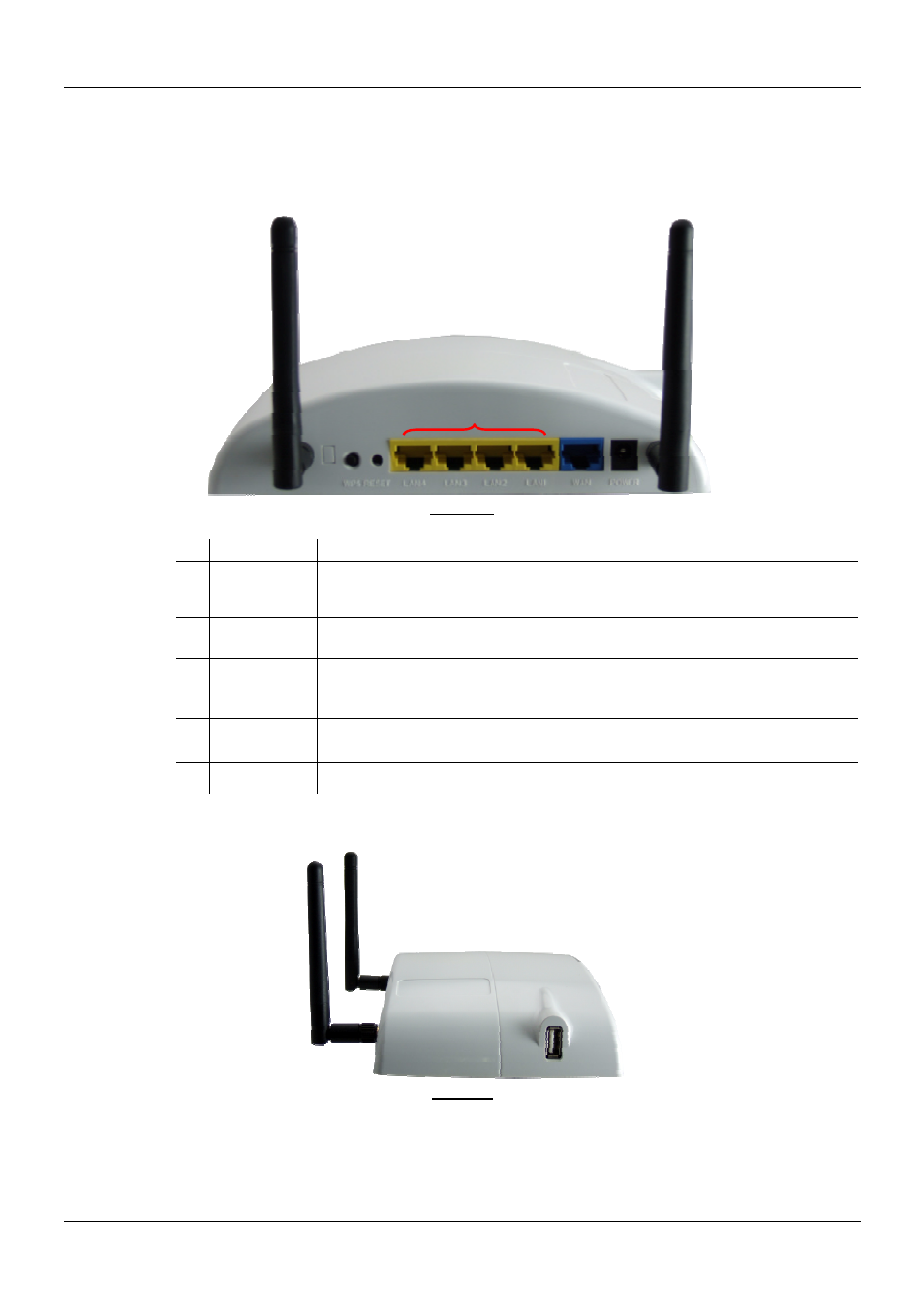

2.1.2 Rear View
Rear View
Port / Button Indication
n WPS
To enable the WPS function via web configuration (Wireless f WPS), then press the WPS
button once on the Wireless Router; the WPS LED will start to flash. To make a connection with
other WPS supported device within 3 minutes.
o RESET
Keep on pressing the Reset button more than 3 seconds, the Wireless Router will set all setting
back to factory default values.
p LAN 1~4
Use standard LAN cables (RJ45 connectors) to connect your PCs to the port. If required, any
port can be connected to another hub. Any LAN port will automatically function as an "Uplink"
port when necessary.
q WAN
Connect the ADSL or Cable Modem here with RJ45 cable. If your modem came with a cable,
use the supplied cable, otherwise, use a standard LAN cable.
r POWER
2.1.3 Side
View
Side View
n USB 2.0 Port Insert the USB 3.5G card that provided by your ISP (Internet Service Provider) here.
n o p q r
n
