PROLiNK ® PWH2004 User Manual www.prolink2u.com
Revision 1.0 (Aug’09) 34

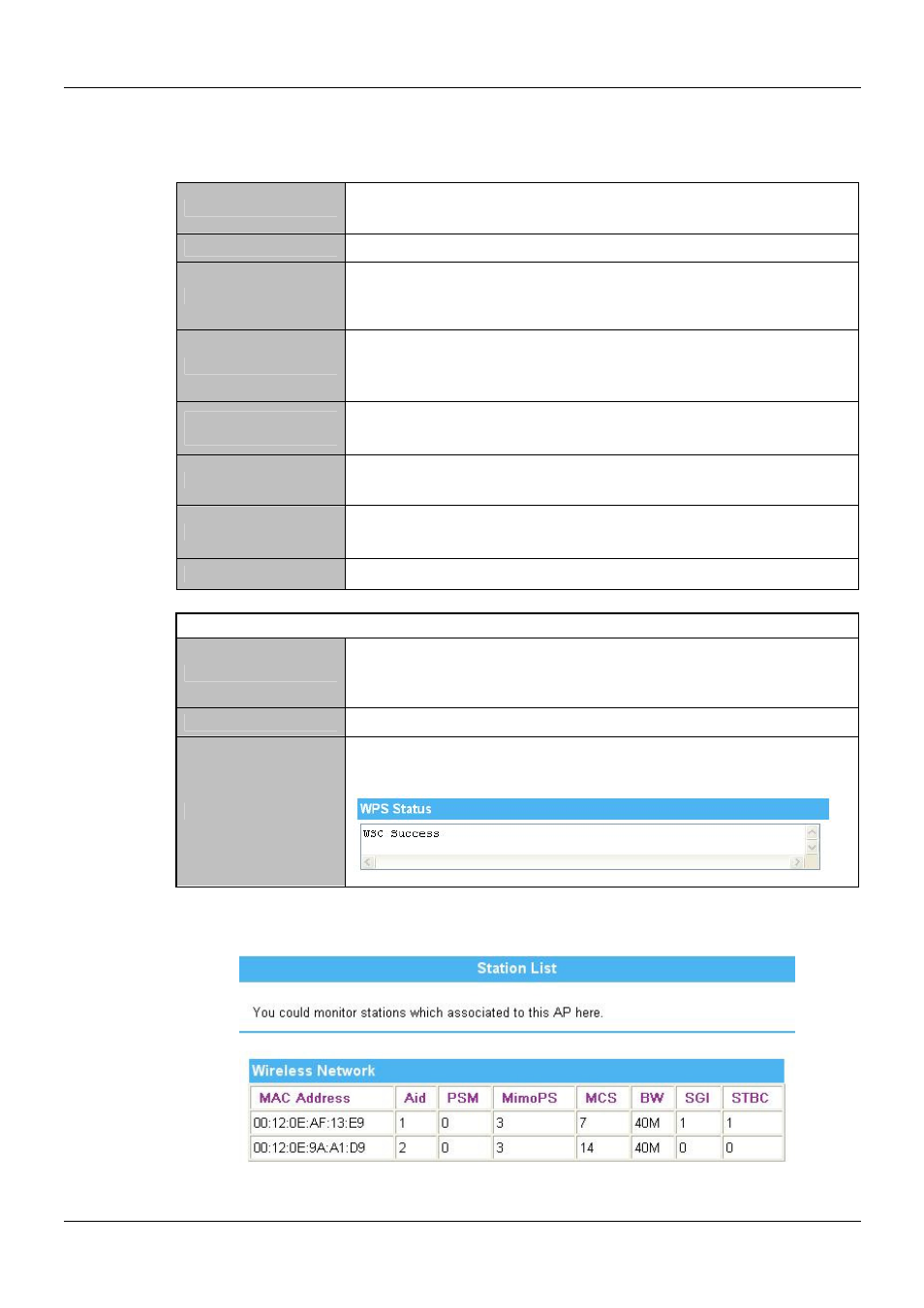

WPS Configured
Trigger WPS AP to do simple config with WPS Client. If WPS configured, here
shows Yes, otherwise, NO.
WPS SSID Shows the Wireless Router network name.
WPS Auth Mode
The WPS authentication type supports Open, Shared, WEP Auto, WPA-PSK,
WPA2, WPA2-PSK, WPA-PSK/ WPA2-PSK. Please go to the configuration
page Wireless SettingsfSecurity to set up the WPS security.
WPS Encrypt Type
For Open authentication mode, the selection of encryption type are NONE and
WEP. For WPA-PSK, WPA2-PSK and WPA-PSK/ WPA2-PSK authentication
mode, the encryption type supports TKIP, AES and TKIP/AES.
WPS Default Key
Index
Shows the WEP default key (1~4).
WPS Key(ASCII)
Shows the WPS security keys (ASCII). The key can be used to ensure the
security of the wireless network.
AP PIN
Here shows the AP’s PIN code (Personal Identification Number) that the
enrollee should enter the registrar’s PIN code to make a connection.
Reset OOB Reset WPS AP to the OOB (out-of-box) configuration.
WPS Process
WPS mode
PIN: Personal Identification Number. Select PIN then click Apply to make
a WPS connection. BC: Push Button Communication. Select PBC then click
Apply to make a WPS connection.
PIN Number Personal Identification Number. Input Enrollee’s Pin Code to AP-Registrar.
WPS Status
Here shows the current status of the WPS. If there is connection the status
shows WSC Success, otherwise, the status shows Idle.
4.6.5. Station List
Here shows the station information that connected with the Wireless Router.
