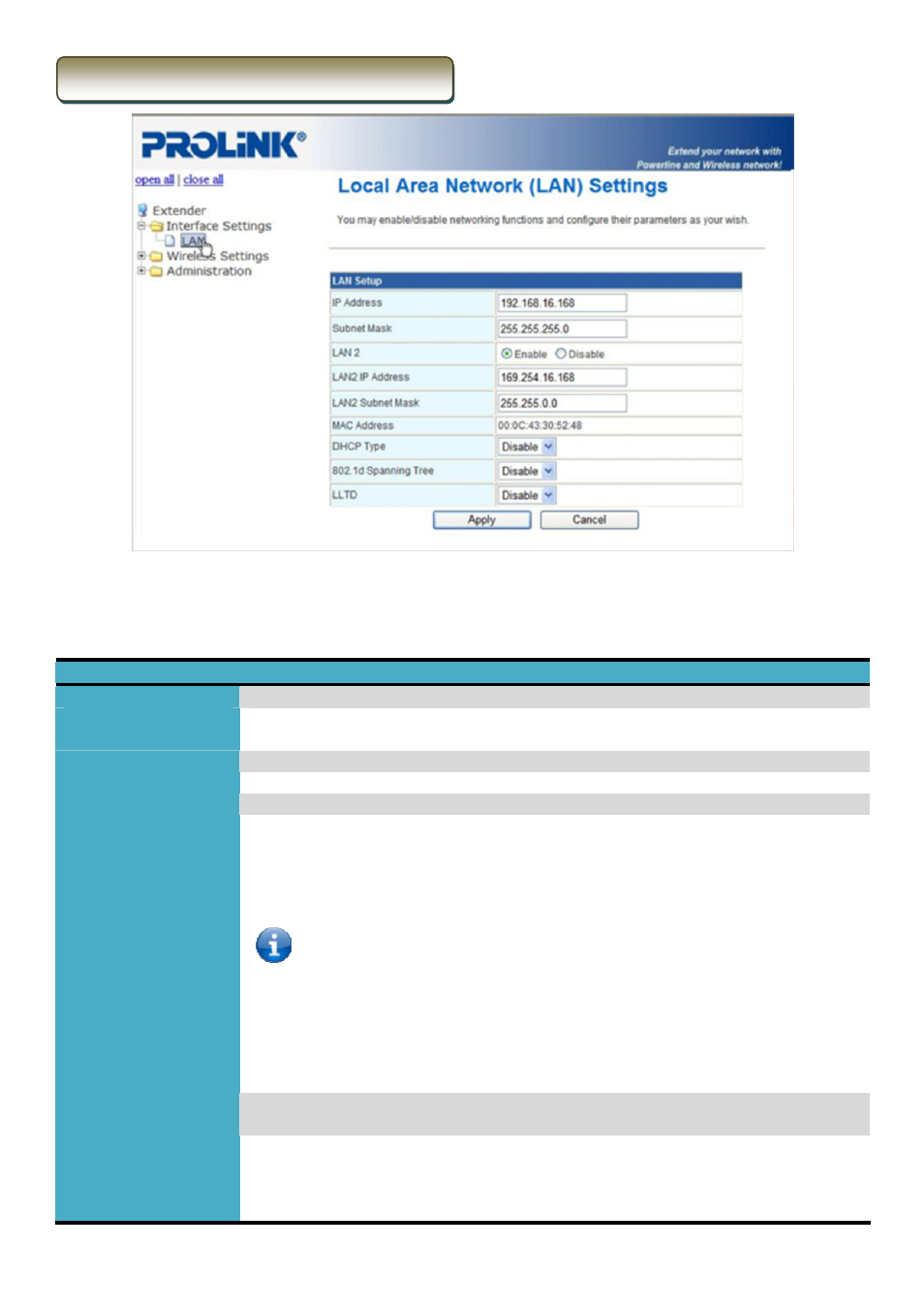

To set up the configuration of LAN interface, private IP of your router LAN port and subnet mask for your LAN
segment. Default IP is 192.168.16.168.
Functions Descriptions/Details
IP Address The IP of the device’s LAN port (default 192.168.16.168).
Subnet Mask Subnet Mask of you LAN (default 255.255.255.0). All devices on the network must have the same
subnet mask to communicate on the network.
LAN2 Enable / Disable LAN 2.
LAN2 IP The IP address of LAN2. (default 169.254.16.168
LAN2 Subnet Mask Subnet Mask of LAN2.
DHCP Type To give your LAN Client an IP, you have to enable DHCP server. If not, manual setting up your client
IP is necessary when you want to use the router as your client’s default gateway.
Start IP Address: Specify the DHCP Client start IP address.
End IP Address: Specify the DHCP Client End IP address.
NOTE:
The number of the “End IP” must be greater than “Start IP”, and cannot be the same as the
router’s IP address.
DHCP Lease Time: Choose the length of the time for the device to recycle and give out the IP
addresses to the devices in your network (default 86400).
Statically Assigned: Can statically assigned the client MAC and IP address. There are three IP can
assign.
802.1d Spanning Tree Enable/Disable. The Spanning Tree Protocol is an OSI layer-2 protocol that ensures a loop-free
topology for any bridged LAN.
LLTD Enable/Disable. Link Layer Topology Discovery (LLTD) is a proprietary Link Layer protocol for
network topology discovery and quality of service diagnostics. It was developed by Microsoft as
part of the Windows Rally set of technologies. The LLTD protocol operates over both wired (IEEE
802.3 Ethernet) as well as wireless (IEEE 802.11) networks.
3.3.1 Management LAN IP
