Arctic Cat CargoCaddy
TM
Installation Instructions for Part No. 13732
NOTE: This instruction sheet #PP5042 is for Arctic Cat snowmobiles that utilize the 2000 and newer ZR chassis with a
500 or 600 engine. Older Arctic Cat snowmobiles like the 1997 and older ZR chassis and all ZRT chassis should use the
universal instruction sheet #PP5011.
HARDWARE INLCUDED: TOOLS REQUIERED: OTHER AVAILABLE MODELS:
Qty Description Power Drill Part No. Description
1 CargoCaddy 7/32” & 3/16” Drill Bit 13730 Universal
3 Dividers Pop Rivet Gun 13731 Polaris Edge Chassis
5 Foam Top Pads Center Punch 13733 Ski-Doo MXZ Chassis
1 Foam Bottom Scissors
2 Spare Belt Clips Tape
12 3/16” Pop Rivets
2 Mounting Brackets
WARNING: Read all instruction prior to installation. Never work on a snowmobile while snowmobile is running.
Before any drilling is done to your snowmobile, take adequate precautions to be sure no debris will end up in your
clutches or any other areas that may cause damage or injury. If possible, remove the clutch guard from the
snowmobile before drilling any holes or doing any riveting, this will make installation cleaner and easier.

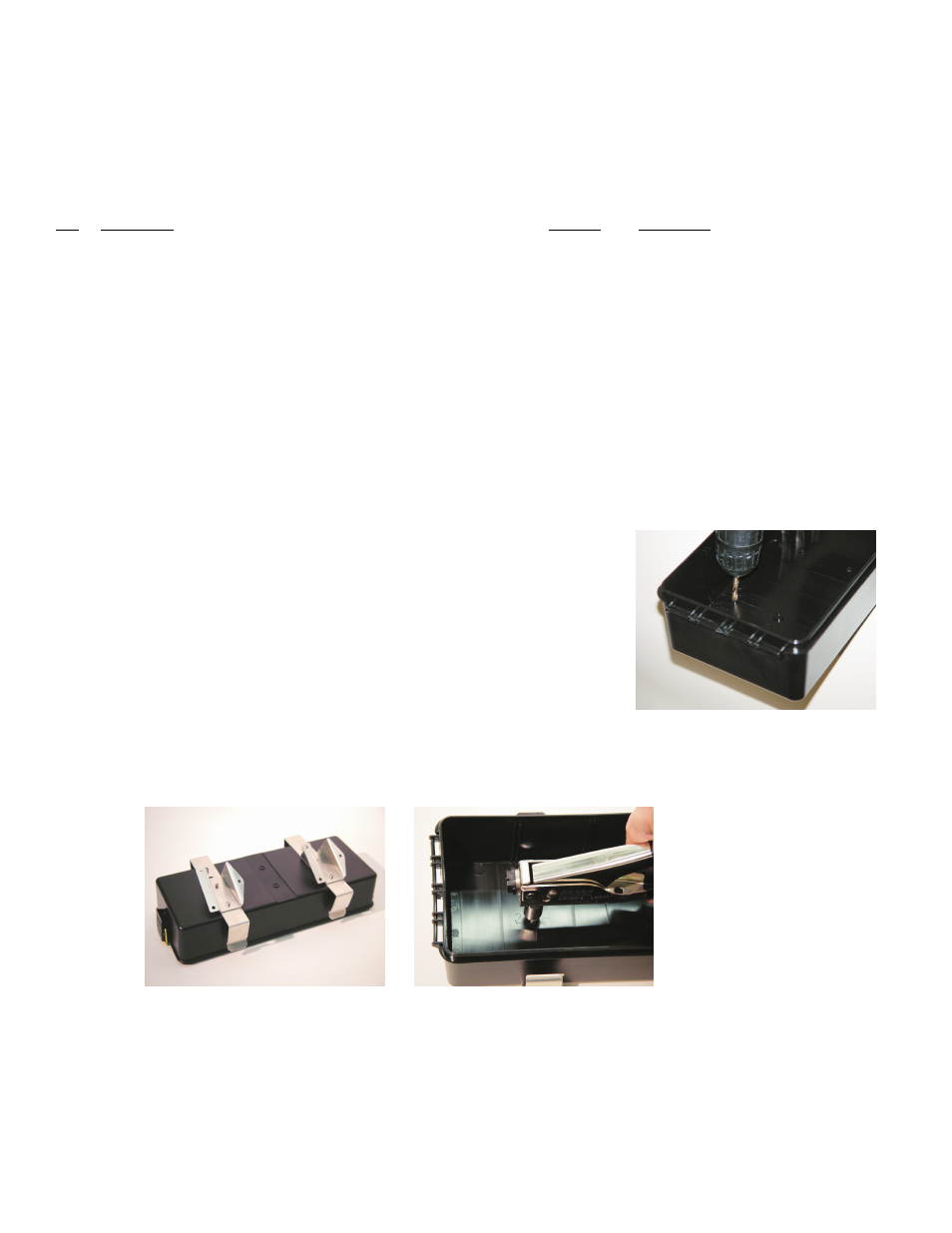

Step 1: Drill through the bottom of the CargoCaddy from inside at all six
numbered bosses with a 7/32” drill bit.
Step 2: Sandwich the belt clips between the bottom of the CargoCaddy and the top of the brackets and fasten using
six rivets as shown in the picture.
Step 3: Remove any previously installed spare spark plug or drive belt holders from the top of the clutch guard that
will interfere with the CargoCaddy.
