® Power-Lift
Installation Instructions for Part No. 13515
UNASSEMBLED PARTS: TOOLS REQUIERED:
Qty Description 12mm Wrench
1 Base 13mm Wrench
1 Center Post 14mm Wrench
1 Lynch Pin
1 Handle Assembly
2 Bolt
2 Nut
WARNING: The lynch pin in the handle linkage needs to be
removed to operate the lift, but should be installed while the
snowmobile is lifted to ensure that someone doesn’t lower the
snowmobile at the wrong time or by accident.
LIMITED WARRANTY
P
OWER
M
ADD warrants this product to be free from defects in material
and workmanship under use for the purpose it was intended.
P
OWER
M
ADD shall not be liable for damage or injury caused by
defective materials or workmanship. P OWER M ADD may elect to repair
or replace this product, but is the sole judge of any defects in their
product. This warranty does not cover any labor costs to remove or
reinstall this product and is effect for one year from the original
purchase date.

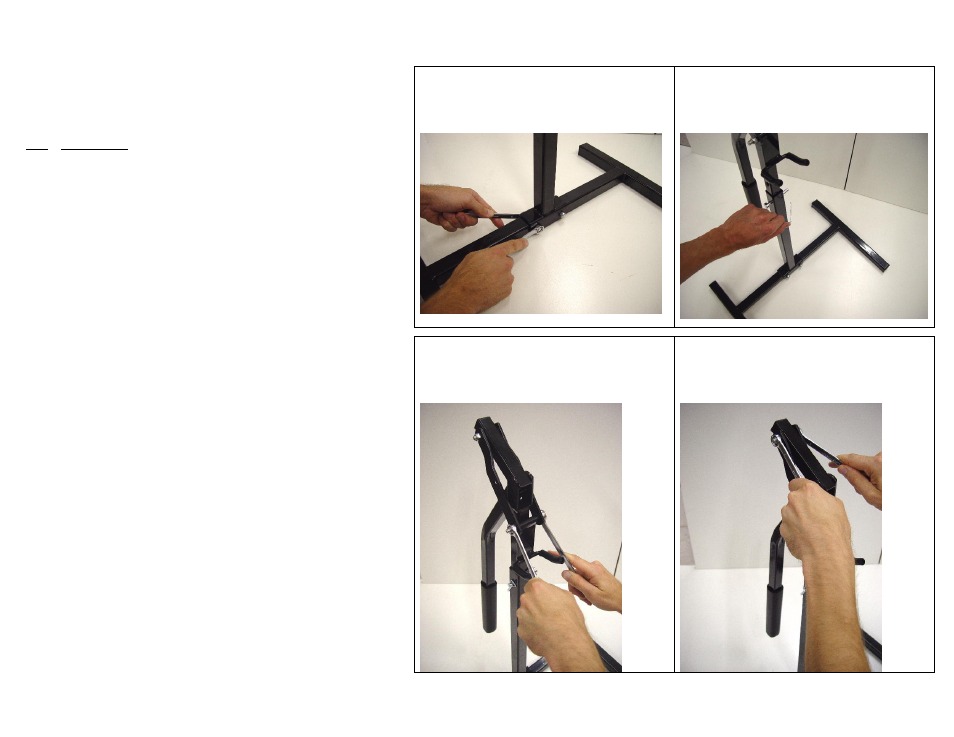

STEP 1: Attach the center post to the
base using the bolts and nuts supplied.
Tighten them until there is no movement
between the base and the center post.
STEP 2: Slide the handle assembly into
the center post and install the lynch pin
through the hole to achieve the desired lift
height.
STEP 3: Tighten the bolt that goes
through the hook and linkage until the
hook doesn’t pivot, then back the nut off
1/2 turn so the hook pivots freely.
STEP 4: Tighten the bolt that goes
through the handle and linkage until the
linkage doesn’t pivot, then back the nut
off 1/4 turn so the linkage pivots freely.
