4.

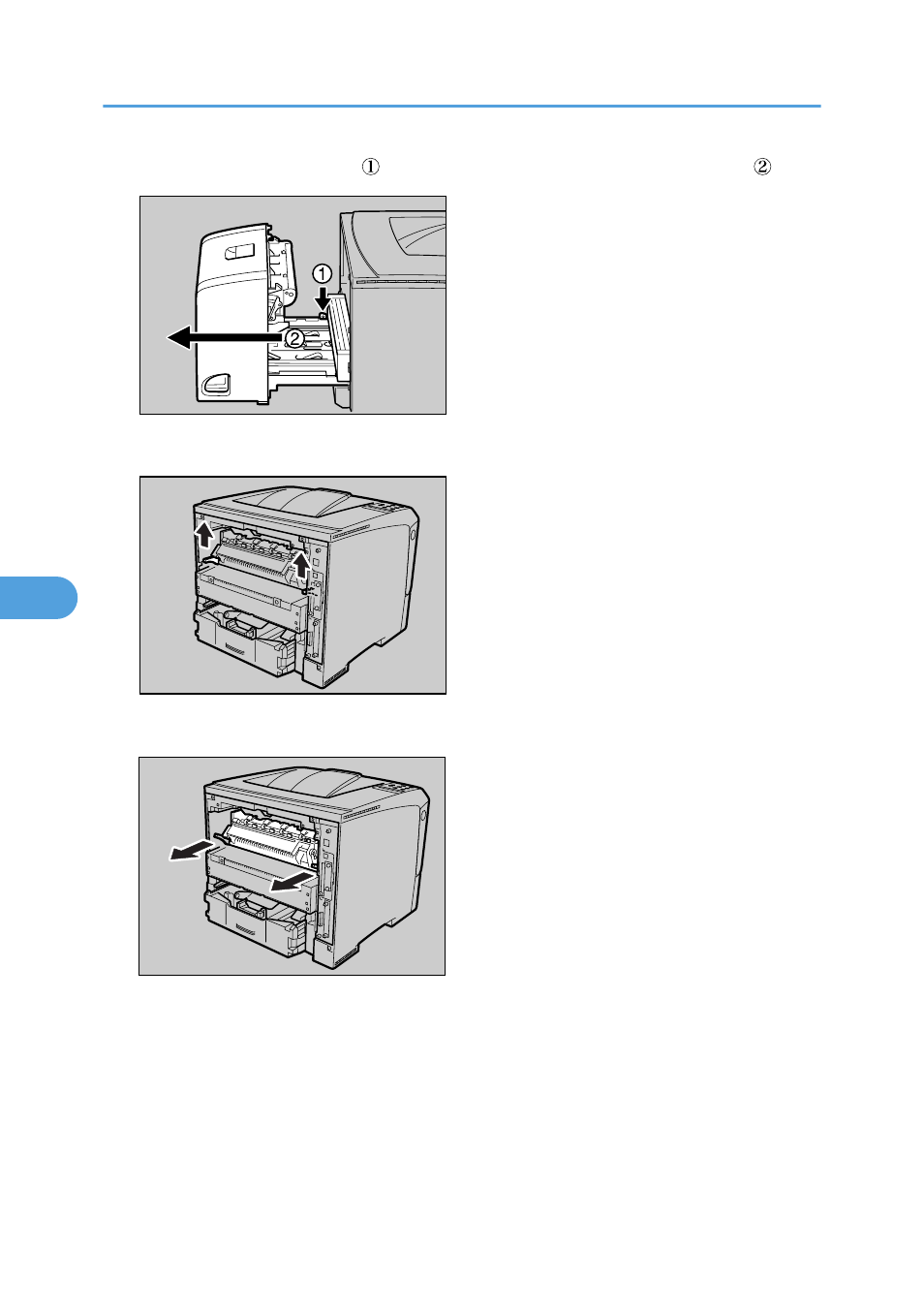

Push the under board levers ( ), and then pull the duplex unit out of the printer ( ).

AUB319S

5.

Lift the lock levers of the fusing unit as shown in the illustration.

AUB311Sz

6.

Pull the fusing unit out.

AUB312S

6. Replacing Consumables and Maintenance Kit

124

6
