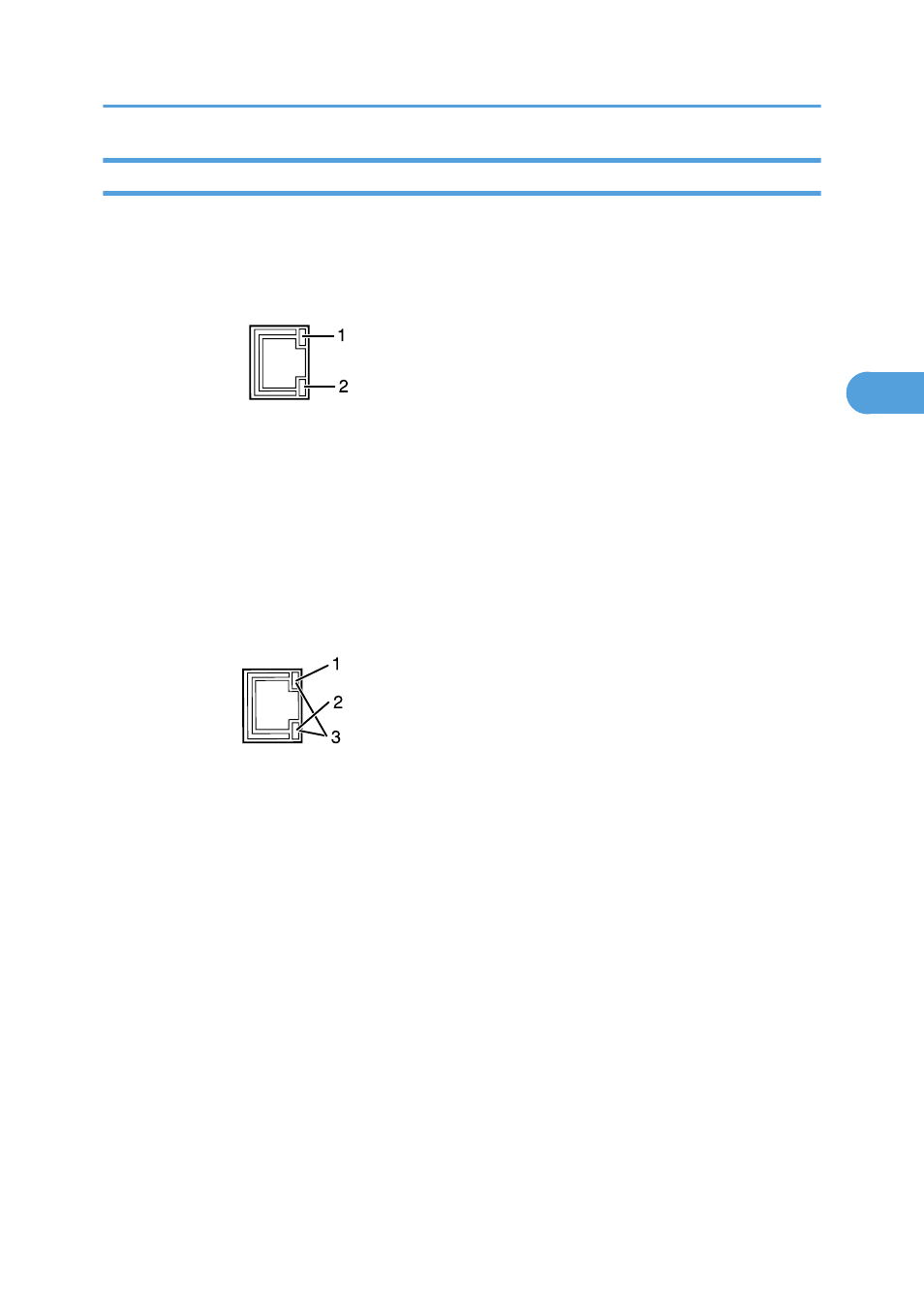

Reading the LED Lamps
For the standard Ethernet port
AUB065S
1. Yellow: comes on when 100BASE-TX is being used. It comes off when 10BASE-T is being used.
2. Green: comes on when the printer is properly connected to the network.
For the Gigabit Ethernet board
AUB066S
1. Yellow: comes on 100BASE-TX is being used.
2. Green: comes on when 10BASE-T is being used.
3. Green and yellow lamps come on when 1000BASE-T is being used.
Network Connection
49
