I n s t r u c t i o n S h e e t
0 12 - 07 5 3 9 B
Ring Launcher
EM-8661
800-772-8700
+1 916-786-3800
Equipment
Recommended
Ring Launcher Accessory: EM-8662, includes the following:
•
Copper Ring: 2.5 cm inside diameter, 2.5 cm long, 48.6 g
•
Split Aluminum Ring: 2.5 cm inside diameter, 2.4 cm length,
12.9 g
•
Small Aluminum Ring: 2.5 cm inside diameter, 1.2 cm
length, 6.8 g
•
Induction Coil and Bulb: tungsten filament light bulb in a
plastic holding base (6.5 by 4 cm) with a copper induction
coil
Introduction
The EM-8661 Ring Launcher is used for demonstrating the prin-
ciples of electromagnetic induction and magnetic force. It is an
electrically powered projectile launcher. Using a conducting but
non-magnetic aluminum ring (included), you can show how the
alternating current in the electromagnetic coil induces an alter-
nating current in the aluminum ring, which produces a magnetic
field opposed to the field of the electromagnetic coil. As a result,
the aluminum ring is pushed upward.
The optional Ring Launcher Accessory (EM-8862) includes a
heavy copper ring, a lightweight aluminum ring, a split alumi-
num ring with a gap, and a small light bulb connected to a copper
coil that can be used for more demonstrations of electromagnetic
induction and magnetic force.
Setup
Connect to an Electrical Receptacle
1.
Plug the Ring Launcher power cord into a grounded 110V
electrical receptacle.
•
When the power is on, the green power light is lit.

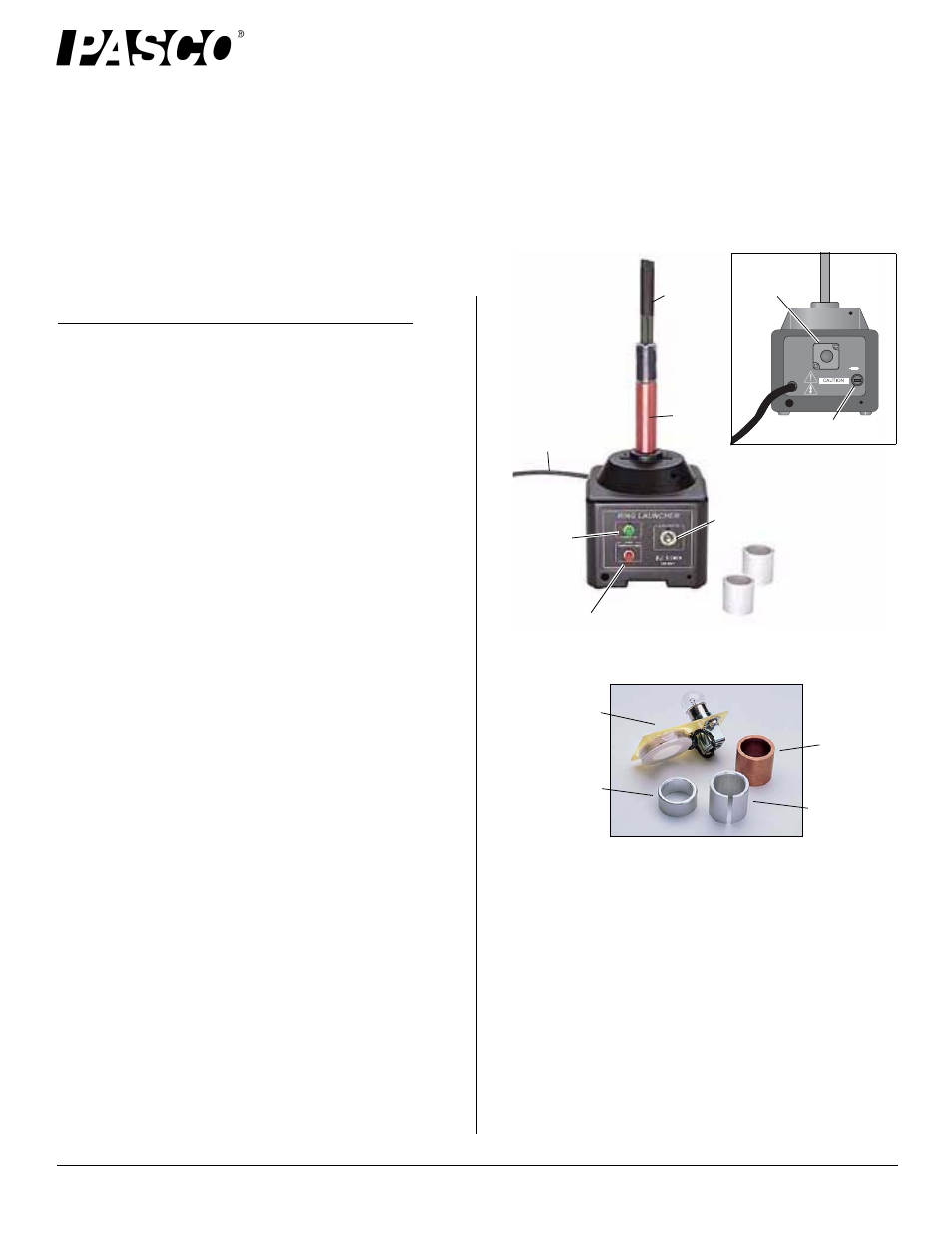

Included
Ring Launcher
Aluminum RIngs (2), 2.5 cm diameter
Iron
Rod
Copper
Wire
Coil
Power
Cord
Power
Light
High
Temperature
Warning Light
Launch
Switch
Aluminum
Rings
RISK OF ELECTRIC SHOCK
DO NOT OPEN
DISCONNECT
INPUT
POWER
BERFORE REPLACING FUSE
FOR CONTINUED FIRE
PROTECTION. REPLACE
ONL
Y
WITH 8A, 250V
,
TYPE F FUSE,
(PER IEC 127-2/III)
TO
A
VIOD
E
LECTRIC
SHOCK
THE
POWER
CORD GROUNDING CONDUCT
OR MUST
BE
CONNECTED
TO
GROUND.
DO NOT
REMOVE COVER REFER
SER
V
ICING
TO
QUALIFIED PERSONNEL.
Fuse
Rod
Clamp
Rear
view
EM-8662 Ring Launcher Accessory
(not included)
EM-8661 Ring Launcher
Copper
Rings
Split
Aluminum
Ring
Small
Aluminum
Rings
Induction
Coil and
Bulb
