Model No. ET-8593

Energy Transfer - Solar

7

Suggested Experiments

Experiment 1: Solar Heating and the Greenhouse Effect

Part I: Solar Heating

1. Mount the box with plate

to a rod stand, such that
the Sun's angle is
perpendicular to the
aluminum plate and the
white plastic knob has no
shadow. Keep the black
side of the aluminum
plate facing up (See
Figure 4).

2. Use a PS-2000 Xplorer

or a laptop computer for
data collection. Set the sample rate in either Xplorer or DataStudio
for 2 Hz.

3. Have a piece of cardboard available to shade the box while setting

up.

4. In DataStudio, click the Start button to begin data collection and

remove the cardboard shade.

5. With the plastic cover on, take a run of data in DataStudio. Let the

box heat until the temperature levels off. (The approximate
duration is 10 to 30 minutes, depending on the outside temperature
and the intensity of the sunlight.)

Equipment Required

Energy Transfer - Solar (ET-8593)

Temperature Sensor (PS-2125)
or Thermistor Sensor (CI-6527A)
or an Ohmmeter/Multimeter

Rod Stand (ME-9355)

PASPORT Xplorer (PS-2000) or
laptop computer

Piece of cardboard

Temperature vs. Resistance
Chart (See Appendix A)

DataStudio Software

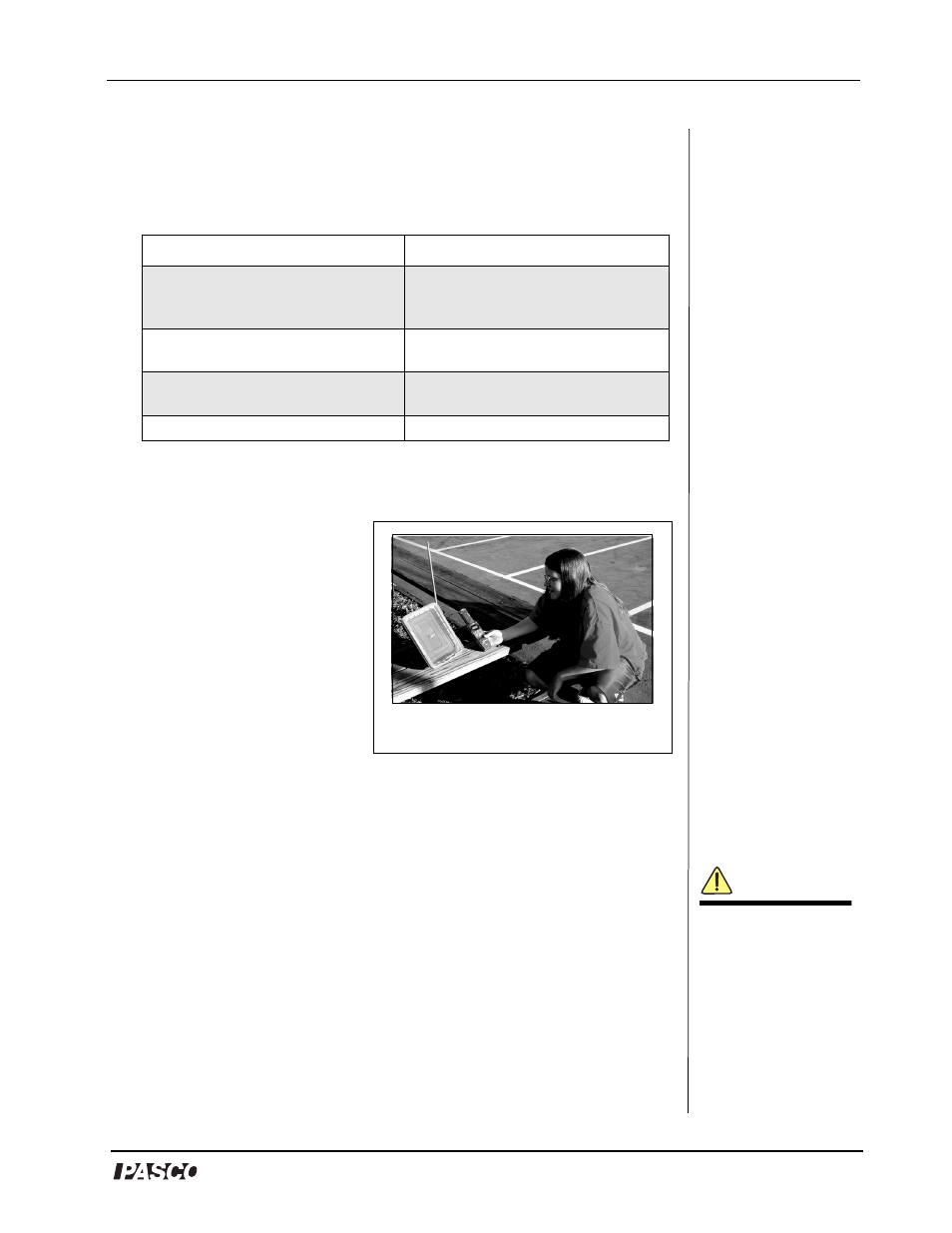

Figure 4: Setup for Solar
Heating Experiment

CAUTION: Overheating
the box may permanently
damage the thermistor
and the plastic lid. The
thermistor’s maximum
temperature capacity is

135

o

C.
