Assembly, Laser alignment, Set up projectile launcher as required – PASCO OS-8527A LASER SIGHT ACCESSORY User Manual

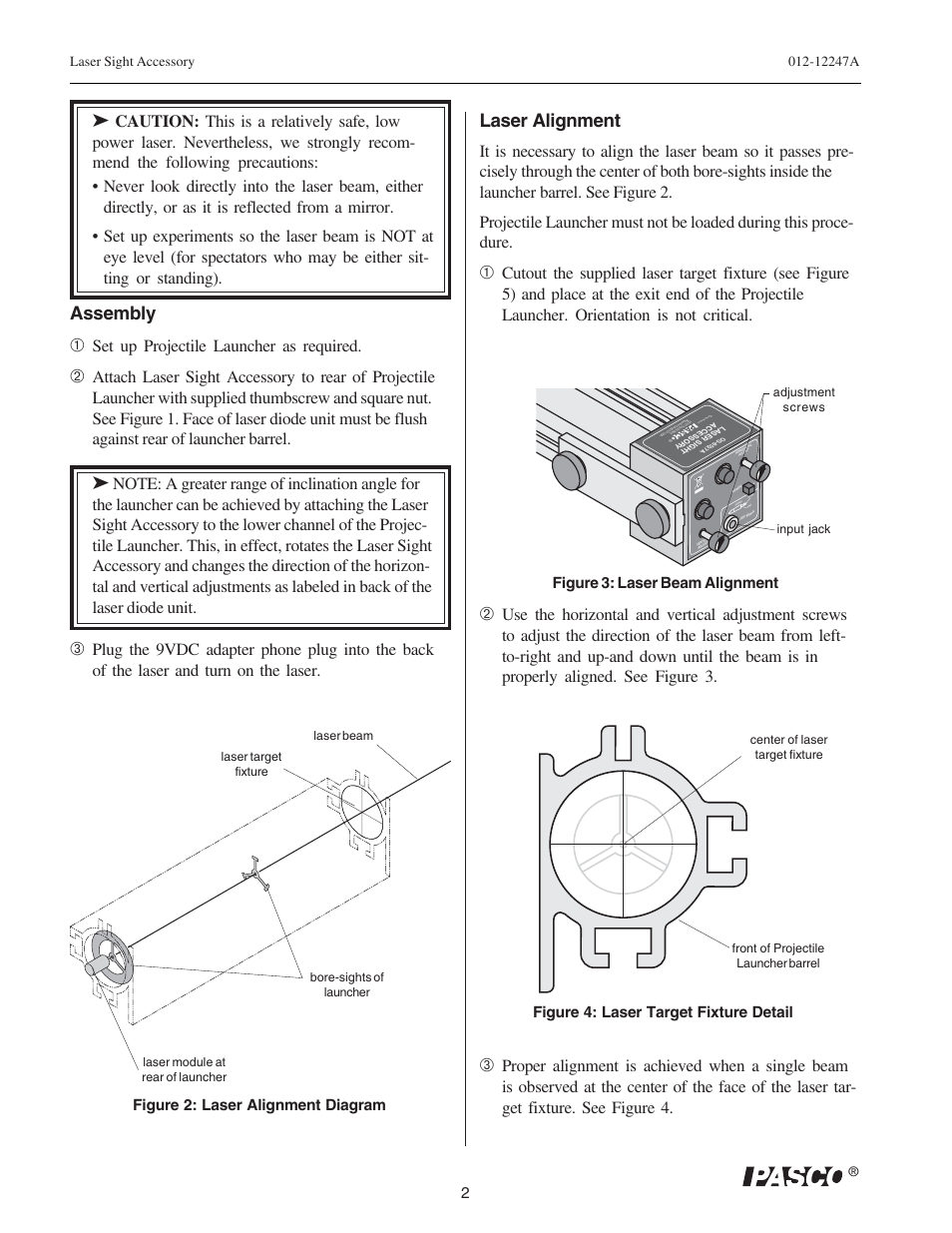

Page 2: Figure 2: laser alignment diagram, Figure 3: laser beam alignment, Figure 4: laser target fixture detail
