PASCO OS-8527A LASER SIGHT ACCESSORY - Manual

RED DIODE LASER 003-10496
AVOID EXPOSURE
LASER LIGHT IS EMITTED FROM
THIS APER
TURE
®
OS
-8527A
LASER SIGHT
AC
CESSOR
Y
Man ufactured
by: 1010 1 Fo
othill B
lvd.
Ros eville , CA
957 47 U SA
®
Complies with FDA
performance st
andards for
laser product
s except for
deviations
pursuant
to Laser
Notice No. 50, dated June 24, 2007
LASER LIGHT
DO NOT ST
ARE
INT
O
BEAM
CLASS 2 LASER PRODUCT 650nm, <1mW CW (Red) CLASSIFIED 60825-1 2007
9 VD C 500m A GND 3.5m m
HOR IZONTAL ADJUST
VERTICAL ADJU ST
ON
OFF
POW ER
+9VDC
OS-8527A
LASER SIGHT ACCESSOR
Y
Manu facture d by: 1010 1 Foo thill Blvd.
Rose ville, CA 95 747 U SA
®
DIODE LASE 0496
®
10101 Foothill Blvd.
Rose
ville
, CA.
95747 USA
Mfg. I.D. Label

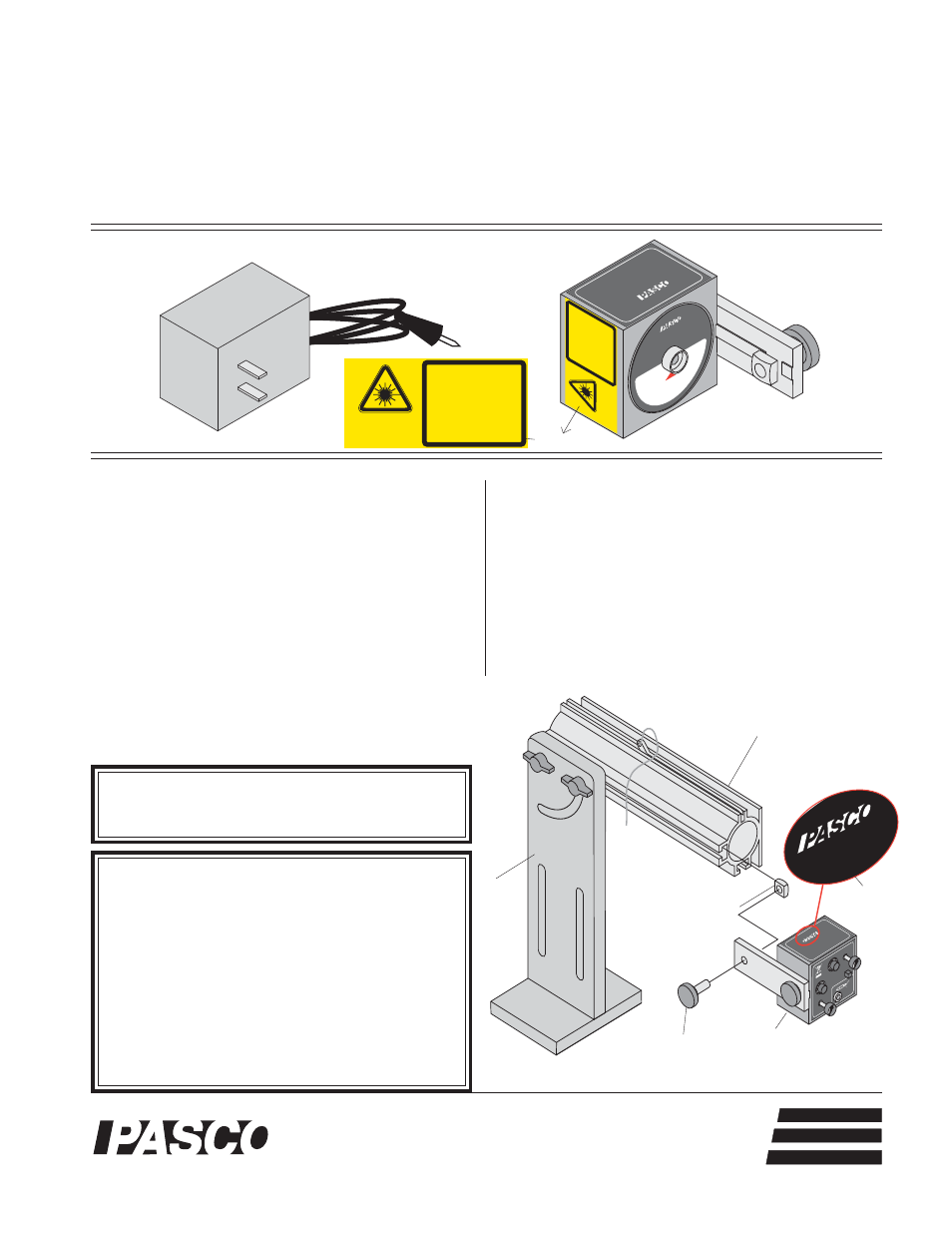

Instruction Sheet
for the PASCO
Model OS-8527A
LASER SIGHT ACCESSORY
Introduction
The OS-8527A Laser Sight Accessory is designed for
use with PASCO projectile launchers and is an effec-
tive accompaniment to Shoot-the-Target experiments.
Equipment
– Laser Sight Accessory
– 9VDC adapter
Additional equipment recommended:
– PASCO ME-6800 (short range) or ME-6801
(long range) Projectile Launcher
– PASCO ME-6853 Shoot-the-Target
➤
WARNING: Always wear safety goggles
when you are in a room where the Projectile
Launcher is being used.
➤
CAUTION - use of controls or adjustments
or performance of procedures other than those
specified herein may result in hazardous radia-
tion exposure.
• LASER LIGHT - DO NOT STARE INTO BEAM.
• CLASS 2 LASER PRODUCT
• This Laser Product is designated as Class 2
during all procedures of operation.
• Do not point the laser or allow the laser to be
directed or reflected toward people or animals.
square nut
ME-6800 or ME-6801
Projectile Launcher
(not included)
OS-8527A Laser
Sight Accessory
launcher
base
The base of the Projectile Launcher must be clamped
to a sturdy surface using the clamp of your choice.
Please refer to the instruction manual for your PASCO
Projectile Launcher for more information.
Replacement parts:
Description PASCO part no.
Laser Sight Mount 648-06147
long thumbscrew 617-002
short thumbscrew 617-015
thumbscrew
Figure 1: Laser Sight Accessory Setup
Warning Label
Complies with FDA
performance standards for
laser products except for
deviations pursuant to Laser
Notice No. 50, dated June 24, 2007
LASER LIGHT
DO NOT STARE
INTO BEAM
CLASS 2 LASER PRODUCT
650nm, <1mW CW (Red)
CLASSIFIED 60825-1 2007
Phone (916) 786-3800 • FAX (916) 786-8905 • web: www.pasco.com
10101 Foothills Blvd. • Roseville, CA 95678-9011 USA ®
better
teach science
ways to
012-12247A
