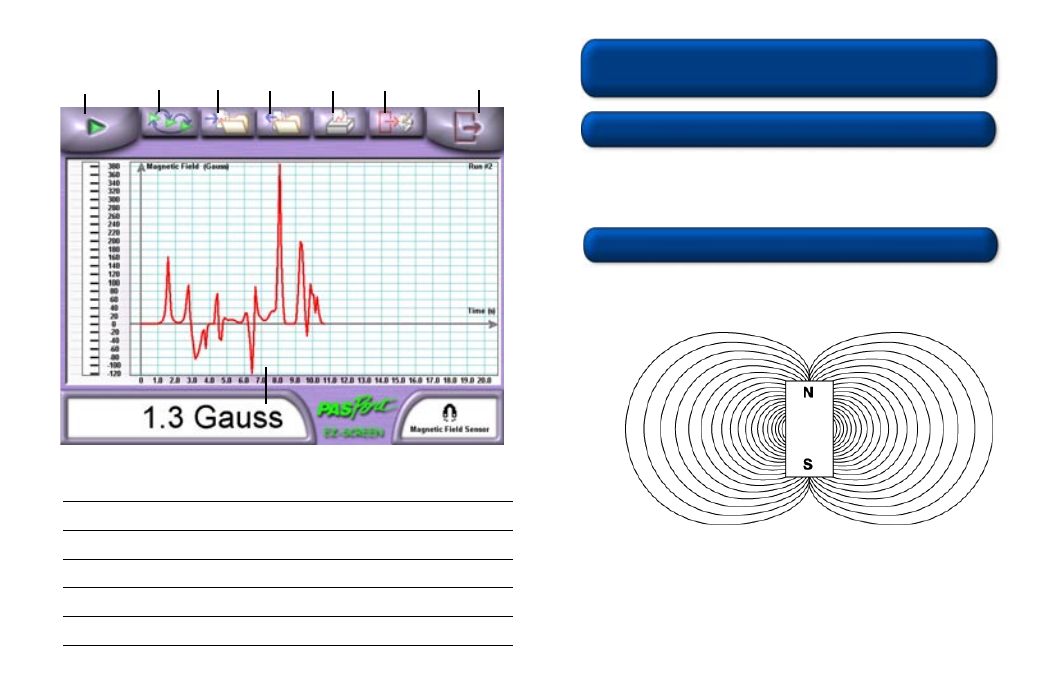

Magnetic Field EZscreen
EZscreen Activity
1. To make a spot measurements of Magnetic Fields in your
classroom, click EZscreen in the PASPORTAL window.
2. Click the Start button to record data.
EZscreen Specifications
EZscreen Range: -1,000 to + 1,000 gauss
Recording Time: up to 2 hours
Scale-to-Fit: Double-click the Graph to scale data
Information Tool: Displays X,Y coordinate and slope for a point on graph
Export to DataStudio: Click Exit to DataStudio button
Toggle
Data
Runs
Save
Data Open
Data Print
Graph Quit
EZscreen
Magnetic Field Reading
Exit to
DataStudio
Using DataStudio, the Magnetic Field Sensor can be used to map the
flux field produced by a magnet.
Magnetic Flux Field
DataStudio Activity
Click the Start
Button to
Record Data
