PASCO PS-2112 Magnetic Field Sensor User Manual
Magnetic field sensor, Magnetic field quick start
®
PS-2112
The PS-2112 Magnetic Field Sensor measures magnetic field flux density in gauss or
militesla.
Magnetic Field Quick Start
Additional Equipment Needed
•
PASPORT Link Device (USB Link, Xplorer, etc.)
•
EZscreen or DataStudio
TM
software (version 1.5 or later)

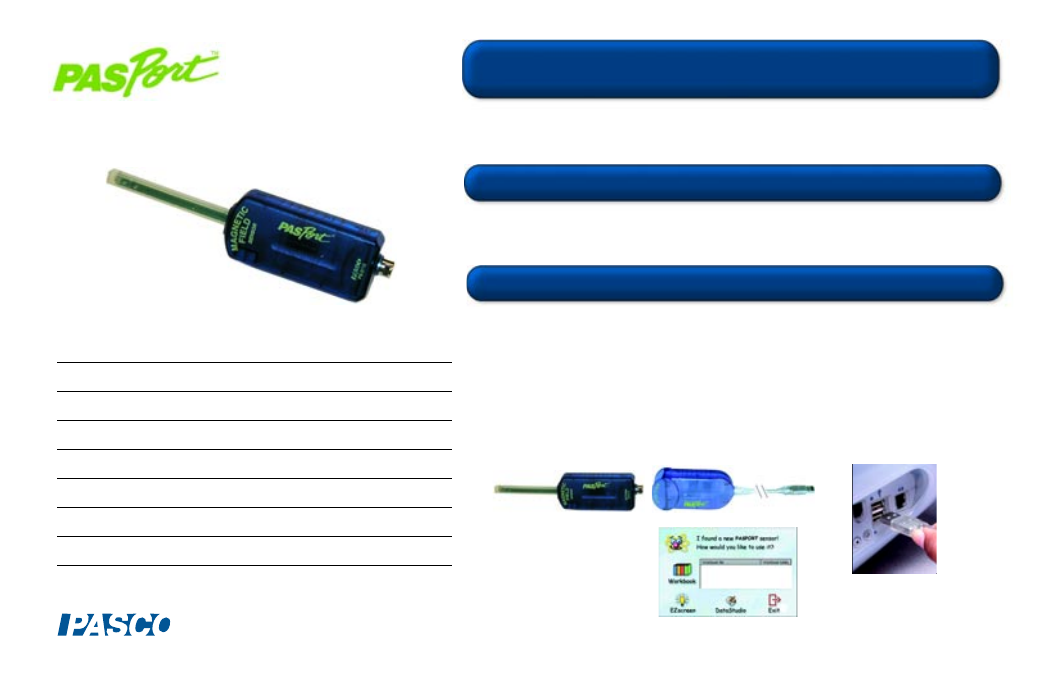

Equipment Setup
1. Connect the PASPORT Link Device to a USB port on your computer or
USB hub.
2. Connect the sensor to a PASPORT Link Device.
3. The software launches when it detects a PASPORT sensor. From the
PASPORTAL screen, select a point of entry:
• an activity in the Workbook window,
• EZscreen, or
• DataStudio.
Sensor Specifications
Sensor Range:
±1,000 gauss
Accuracy:
± 3 gauss @ 25°C (after 4 min warmup)
Resolution:
0.01 % of full scale
Max Sample Rate:
20 sps
Default Sample Rate:
10 sps
Operating Temperature:
0
–
40
°
C
Relative Humidity Range:
5
–
95%, non-condensing
800-772-8700 • 916-786-3800 • [email protected] • www.pasco.com
012-07738A
2
1
3
Magnetic Field Sensor
