F o r c e A c c e s s o r y B r a c k e t C I- 6 5 4 5
3
Magnetic Bumper The magnetic bumper can be used for
elastic collisions. For example, if the force sensor is mounted on
the bracket in the low position, and the magnetic bumper is
attached to the force sensor, the bumper will repel a dynamics
cart that has magnets in its end cap.
The magnetic bumper has a small pin next to the screw. This pin
fits into the small hole next to the threaded hole on the end stop
of the bracket or on the end of the force sensor. The pin keeps the
bumper from rotating during collisions.
Screwdriver Use the screwdriver to attach a large-format
force sensor (such as CI-6537) to a cart.
Parts Storage

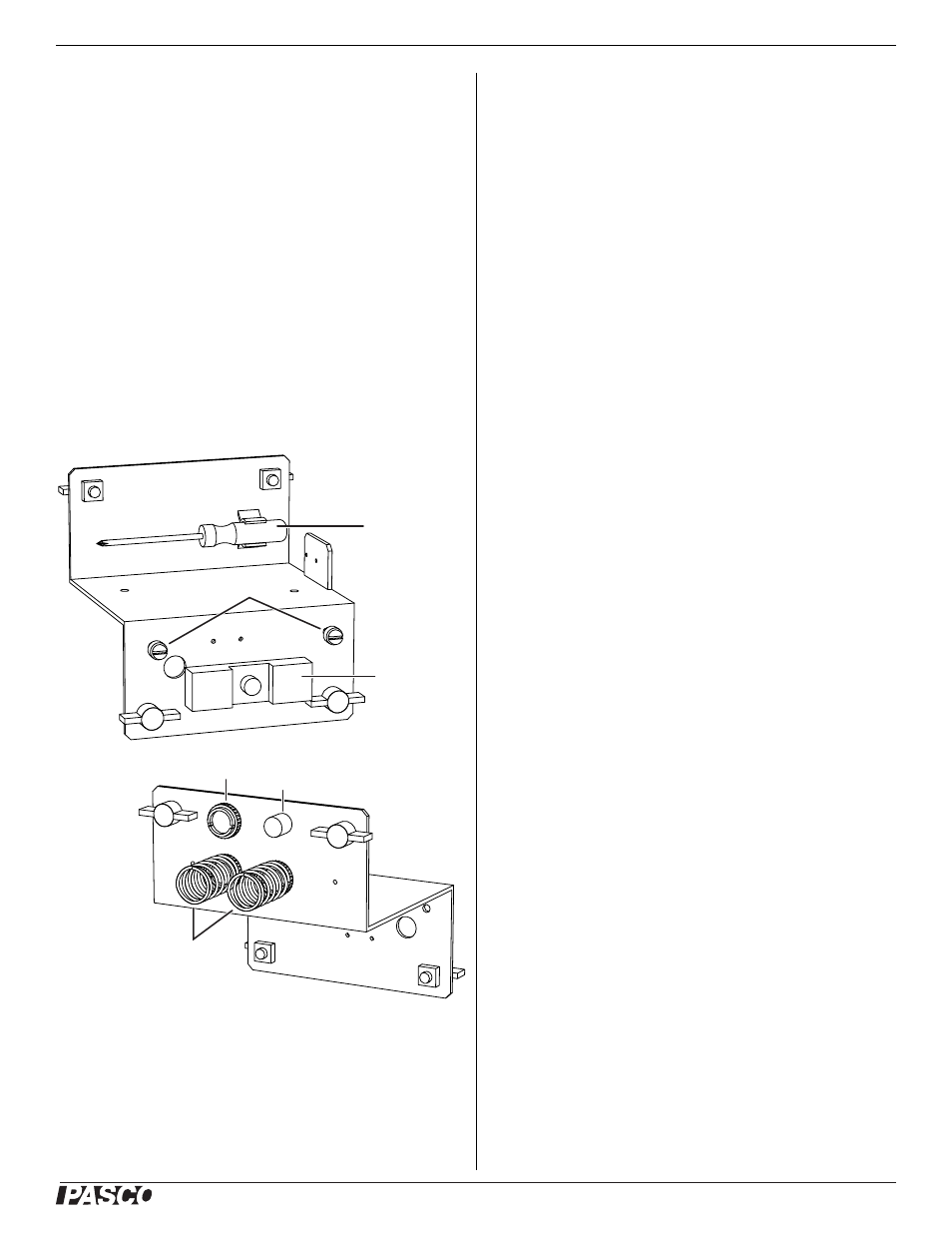

When not in use, the various parts can be attached to the bracket
as illustrated.
Technical Support
For assistance with any PASCO product, contact PASCO at:
Limited Warranty For a description of the product warranty, see the
PASCO catalog.
Copyright
The PASCO scientific 012-05835B Force Accessory Bracket
Instruction Sheet is copyrighted with all rights reserved. Permission is
granted to non-profit educational institutions for reproduction of any part of
this manual, providing the reproductions are used only in their laboratories
and classrooms, and are not sold for profit. Reproduction under any other
circumstances, without the written consent of PASCO scientific, is prohib-
ited.
Trademarks
PASCO, PASCO scientific, DataStudio, ezSample,
PASPORT, and Xplorer GLX are trademarks or registered trademarks of
PASCO scientific, in the United States and/or in other countries. All other
brands, products, or service names are or may be trademarks or service
marks of, and are used to identify, products or services of, their respective
owners. For more information visit www.pasco.com/legal.
Clay Holder
Screwdriver
Magnetic
Bumper
Rubber Bumper
Spring Bumpers
Thumbscrews
