Dings Dynamics Group 50 Series48C frame User Manual
Page 3

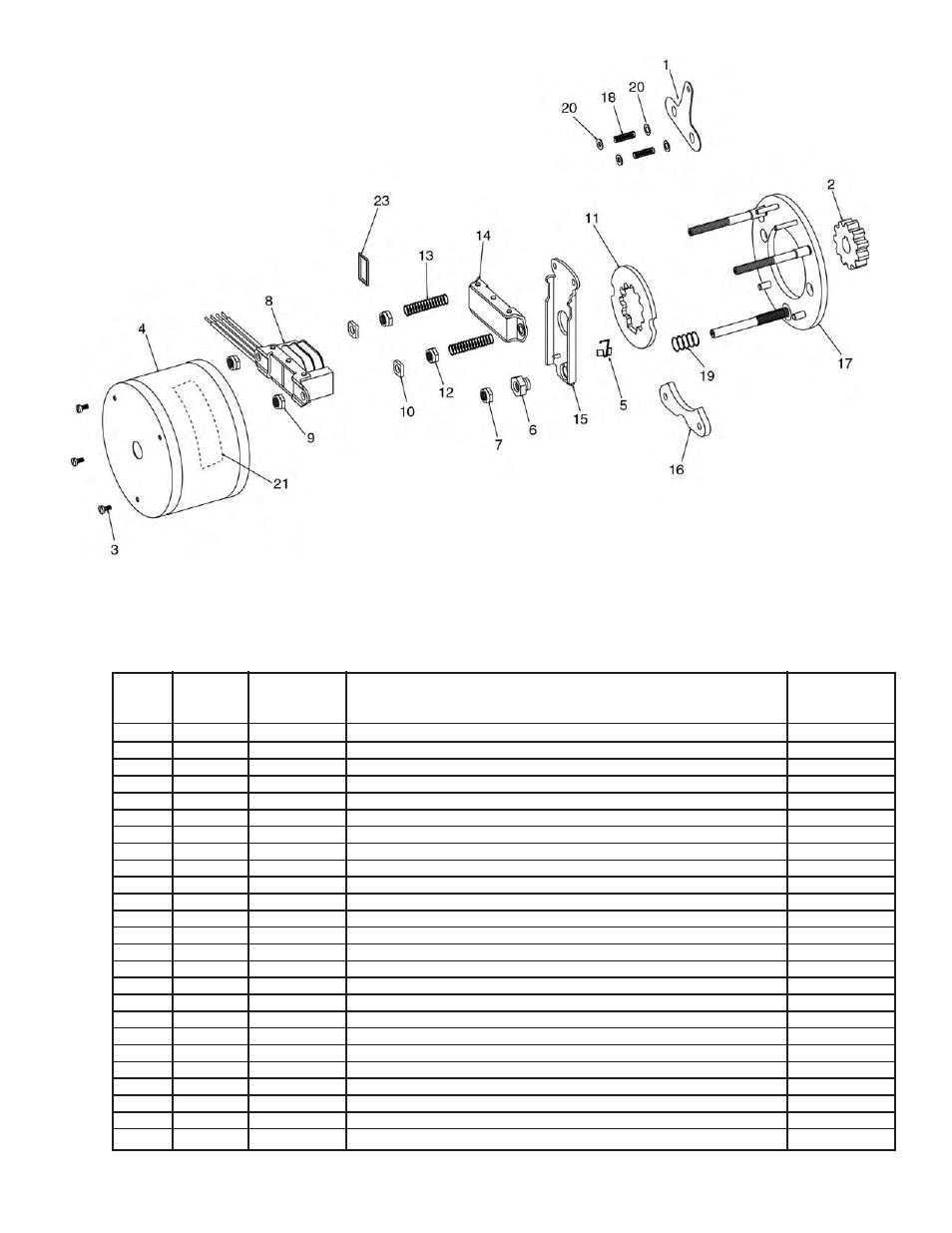

Figure 5. Exploded View of Brake
ITEM
PIECES
NET WT.
DESCRIPTION
PART NO.
NO.
REQ’D
PER PIECE
1
1
1 oz.
RELEASE LEVER
G050073-001
2
1
4 oz.
SPLINED HUB W/ SET SCREWS (SPECIFY BORE & KEYWAY)
H050038
3
3
1 oz.
MACHINE SCREW, PAN HD. WITH LOCKWASHER
W001006-022
4
1
12 oz.
COVER
K050043-004
5
1
1 oz.
ANTI-BACKLASH SPRING
H060466-001
6
1
1 oz.
PIVOT NUT
G060267-001
7
1
1 oz.
LOCKNUT
W003001-018
8
1
21 oz.
MAGNET ASSEMBLY (INCLUDES ITEM 23)
Specify voltage
9
2
1 oz.
LOCKNUT
W003001-015
10
2
1 oz.
RUBBER WASHER
G060310-001
11
1
2 oz.
ROTATING DISC
H050028-001
12
2
1 oz.
NUT, HEX
W003002-002
13
2
1 oz.
TORQUE SPRING - SILVER - (MODEL 2-51001-050)
G050076-001
13
2
1 oz.
TORQUE SPRING - BRONZE - (MODEL 2-51003-050)
G050077-001
13
2
1 oz.
TORQUE SPRING - OLIVE - (MODEL 2-51006-050)
G050078-001
14
1
5 oz.
ARMATURE ASSEMBLY
H050034-002
15
1
8 oz.
PRESSURE ARM ASSEMBLY
H050036-002
16
1
3 oz.
STATIONARY DISC
G050074-001
17
1
24 oz.
BRACKET ASSEMBLY
K050047-001
18
2
1 oz.
RETURN SPRINGS
G050075-001
19
1
1 oz.
COMPRESSION SPRING
G050107-001
20
4
1 oz.
BRASS WASHER
W004003-020
21
1
1 oz.
NAMEPLATE
K060210-001
22
1
1 oz.
SEAL (WHEN USED) - NOT SHOWN
G050111-001
23
1
1 oz.
SHADING COIL
G060346-001
Table 2. Parts List
