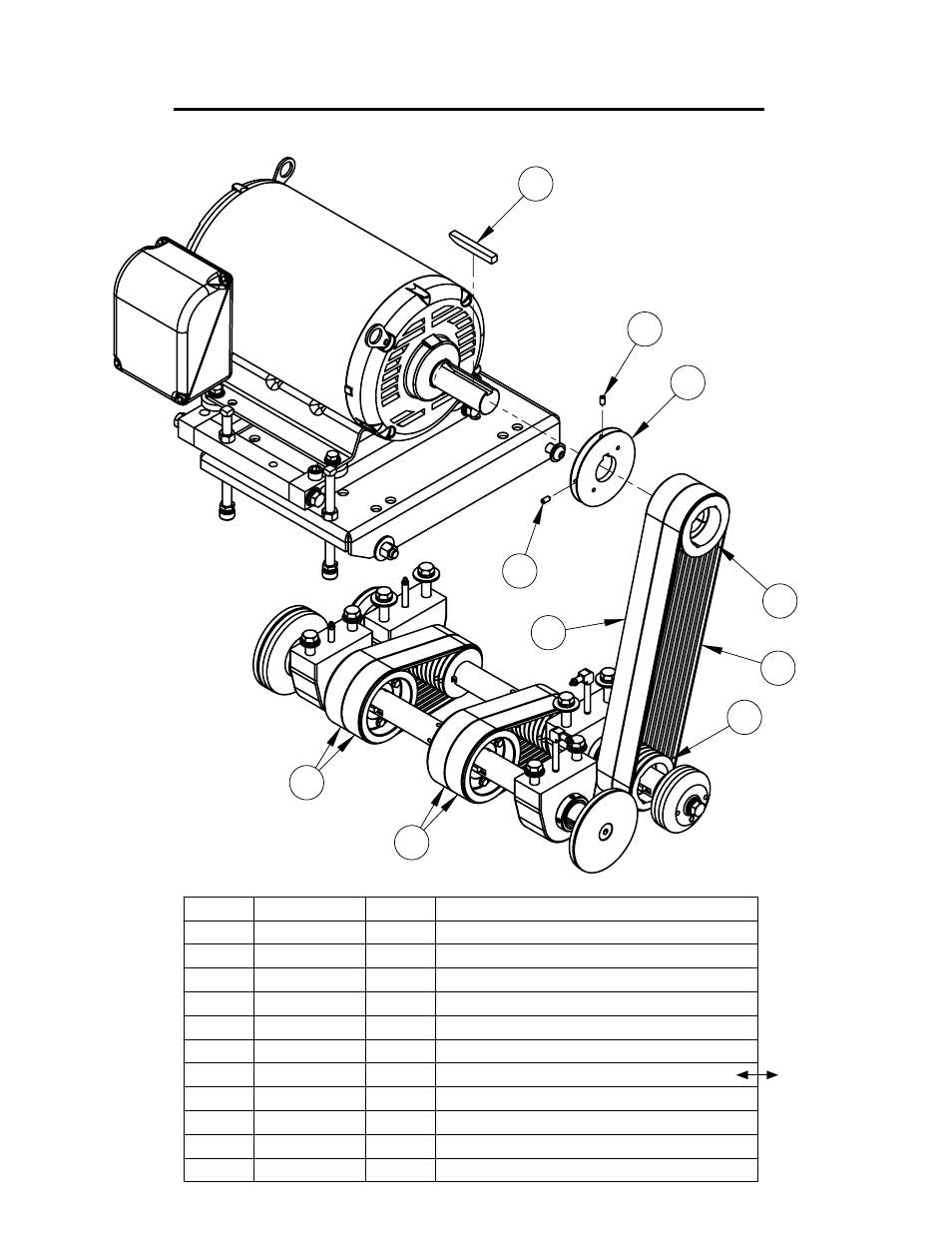

30hp Belt Drive Assembly #6012153B* (Blades 26" & 36")
Use #2501993
For saws prior
to May 2007:
*Use #6012121B for saws prior to May 2007
ITEM PART NO. QTY. DESCRIPTION
1 6012019 1 Pulley, Accessory Drive
2 6012104 1 Sheave, 4.5" x 8 Groove w/Bushing
2501383 1 Sheave, 4.5" x 8 Groove Taper Style
2501991 1 Taper Bushing, 1-7/8" w/Setscrews
3 6010161 1 Key, 1/2" Sq. x 4" Bevel End
4 2900418 2 Set Screw, Soc. Hd., 5/16-18 x 5/8"
5 2501911 4 Banded Belt, 4/3VX280 - 4 Strand
6 6012102 1 Sheave, 4" x 8 Groove w/Bushing
2501382 1 Sheave, 4" x 8 Groove Taper Style
2501410 1 Taper Bushing, 1-3/4" w/Setscrews
7 2500437 2 Banded Belt, 4/3VX500 - 4 Strand
