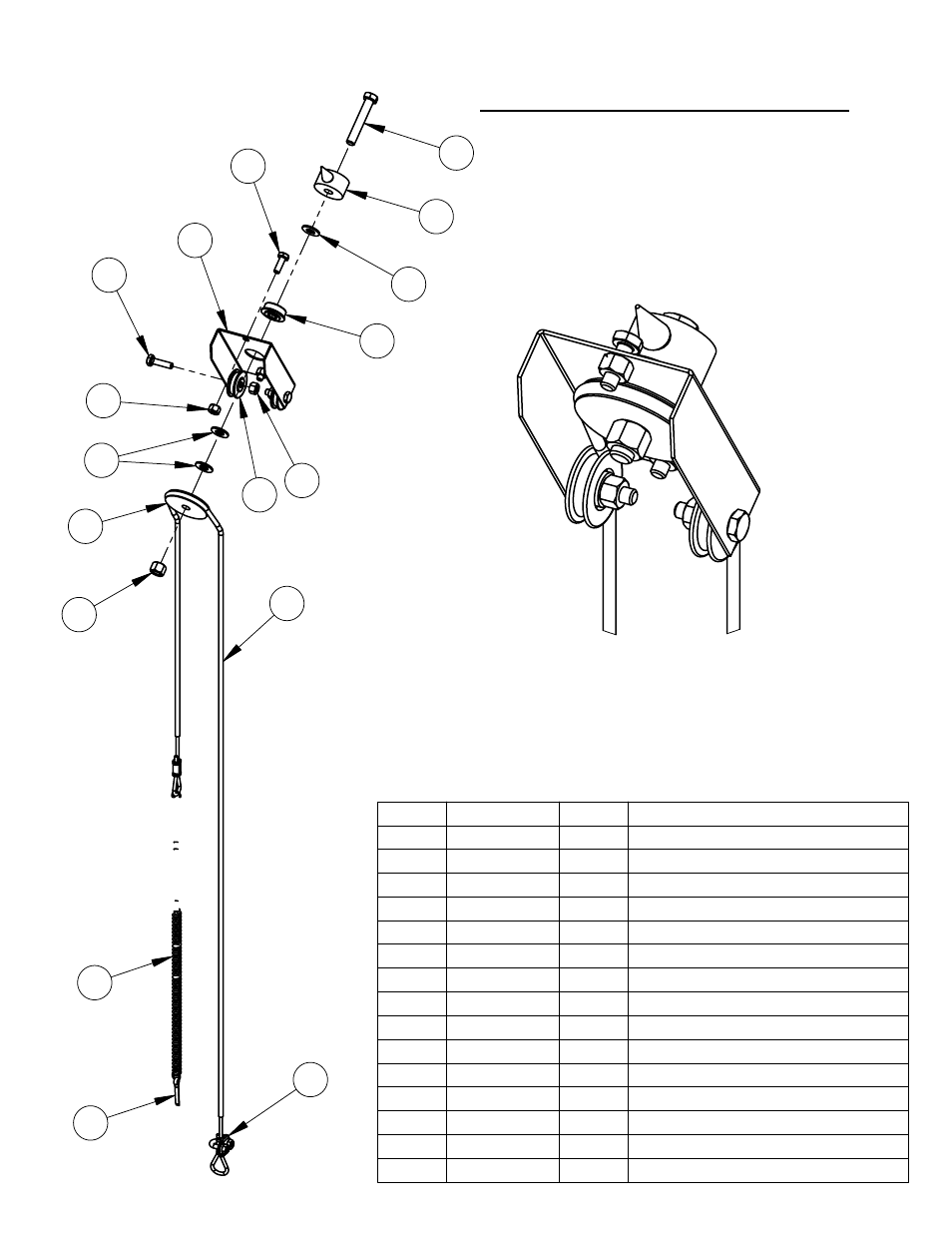

Depth Indicator Assembly #6010214
8
7
6
5
1
3
2
4
7
4
10
11
12
14
15
13
9
ITEM PART NO. QTY. DESCRIPTION
1 6010092 1 Depth Indicator Mount Bracket
2 2500155 2 Cable Pulley, 1-1/4"
3 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
4 2900010 4 Lock Nut, 1/4-20 Nylon
5 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
6 2500145 1 Flange Bearing, 3/8"
7 2900014 3 Flat Washer, 3/8" SAE
8 6010091 1 Depth Indicator Pointer
9 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
10 6010093 1 Cable Pulley, 2"
11 2900018 1 Lock Nut, 3/8-16 Nylon
12 6010094 1 Depth Indicator Cable with Crimp, 48"
13 2500196 1 Spring, 3/8" x 15"
14 2900055 1 Cotter Pin, 3/16" x 1"
15 2500214 1 Cable Clamp
