Diamond Products C740TE - Manual (Page 44)

4
1
4
6
3
8
7
5
8
5
2
to May 2007:
Use #2501993
For saws prior
*Use #6012121A for saws prior to May 2007

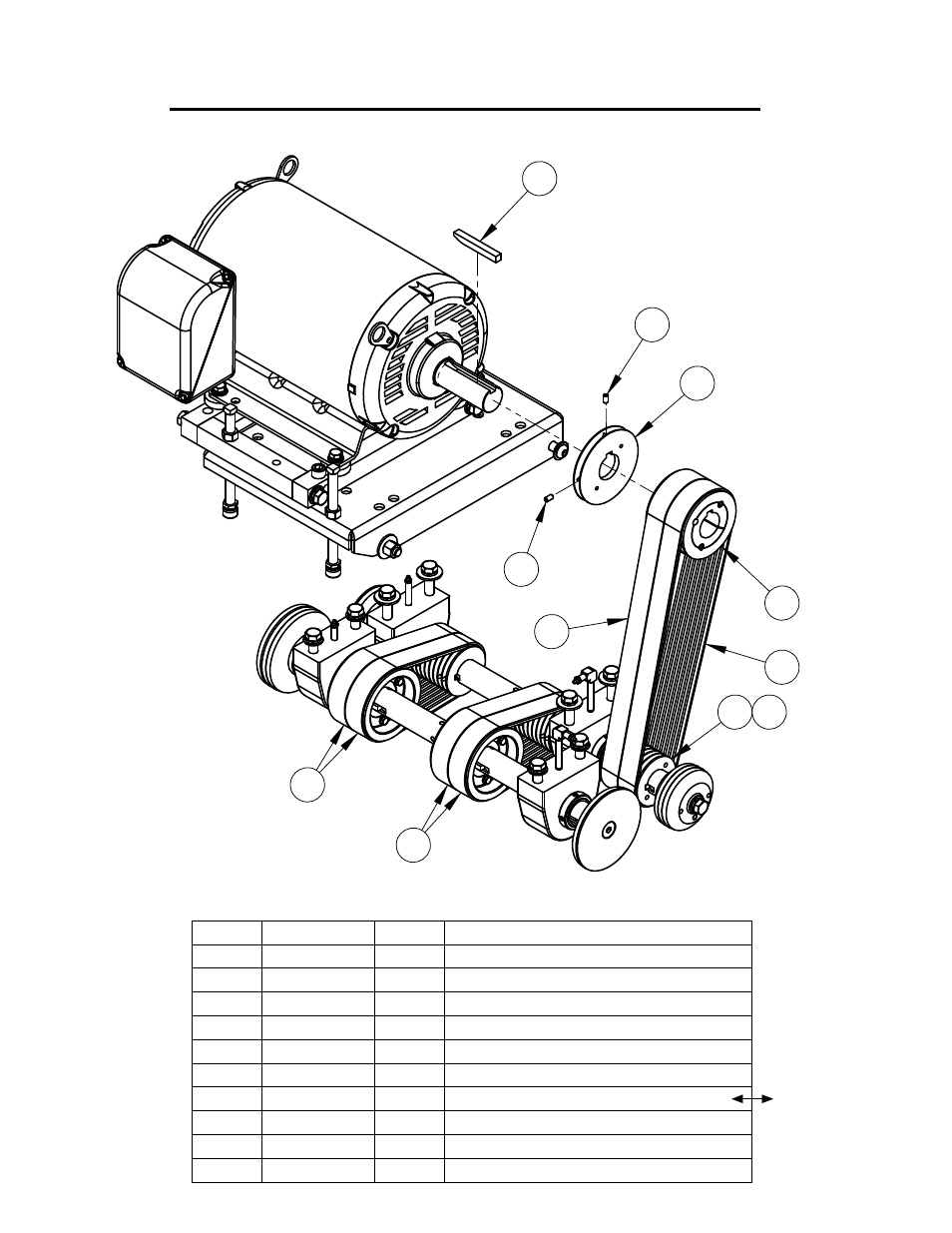

30hp Belt Drive Assembly #6012153A* (Blades 20" & 30")
ITEM PART NO. QTY. DESCRIPTION
1 6012019 1 Pulley, Accessory Drive
2 6010292 1 Sheave, 5" x 8 Groove w/Bushing
2500391 1 Sheave, 5" x 8 Groove Taper Style
2500392 1 Taper Bushing, 1-7/8" w/Setscrews
3 6010161 1 Key, 1/2" Sq. x 4" Bevel End
4 2900418 2 Set Screw, Soc. Hd., 5/16-18 x 5/8"
5 2501911 4 Banded Belt, 4/3VX280 - 4 Strand
6 6011139 1 Sheave, 3.65" x 8 Groove x 1-3/4" Bore
7 2900142 4 Set Screw, Soc. Hd., 5/16-18 x 3/8"
8 2500437 2 Banded Belt, 4/3VX500 - 4 Strand
