Battery assembly – Diamond Products C740TE User Manual
Page 14
12
17
15
21
19
13
18
16
7
8
10
3
4
5
6
4
5
3
4
2
9
3
1
14
18
19
20
21
9
20
11

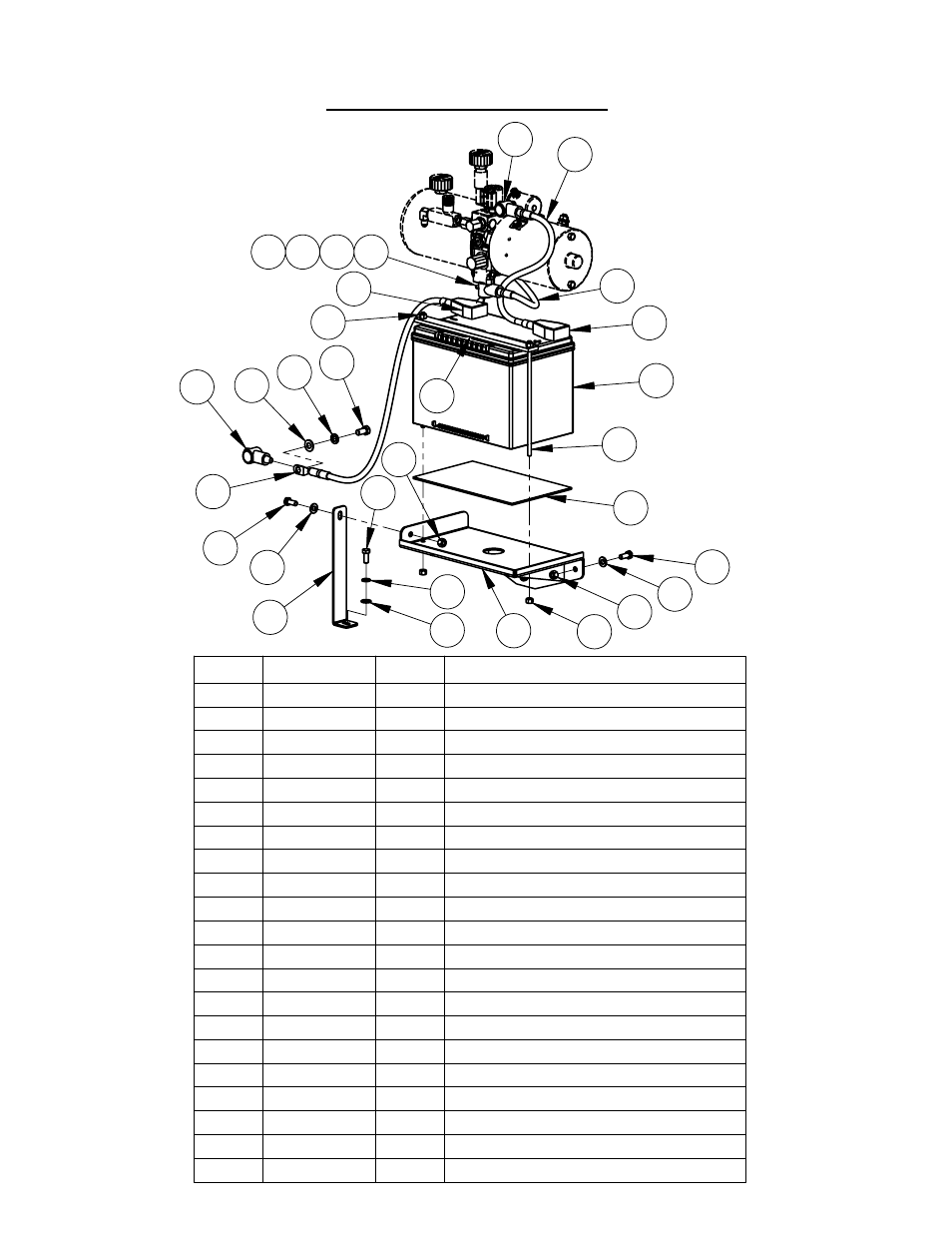

Battery Assembly #6012131
ITEM
PART NO.
QTY.
DESCRIPTION
1
6010670
1
Battery Platform
2
6010554
1
Battery Support Brace
3
2900019
5
Cap Screw, Hex Hd., 5/16-18 x 3/4"
4
2900022
5
Flat Washer, 5/16" SAE
5
2900039
4
Lock Nut, 5/16-18 Nylon
6
2900031
1
Lock Washer, 5/16" Split
7
6010017
1
Battery Top Brace
8
6010018
2
Rod, 1/4-20 x 8-1/2"
9
2900010
4
Lock Nut, 1/4-20 Nylon
10
6010016
1
Battery Pad
11
2700208
1
Battery, 12 Volt Group Size 34
12
2800071
1
Battery Cable, Positive (Red)
13
2800072
1
Battery Cable, Negative (Black)
14
2800182
1
Battery Cable, 14" Negative (Black)
15
2800256
1
Battery Boot, Large (Red)
16
2800257
1
Battery Boot, Large (Black)
17
2800197
1
Battery Boot, Small (Red)
18
2800198
2
Battery Boot, Small (Black)
19
2900014
2
Flat Washer, 3/8" SAE
20
2900006
2
Lock Washer, 3/8" Split
21
2900196
2
Cap Screw, Hex Hd., 3/8-16 x 3/4"
14
