Blade shaft assembly (front) – Diamond Products C740TE User Manual
Page 38
#6012105 for saws prior to May 2007

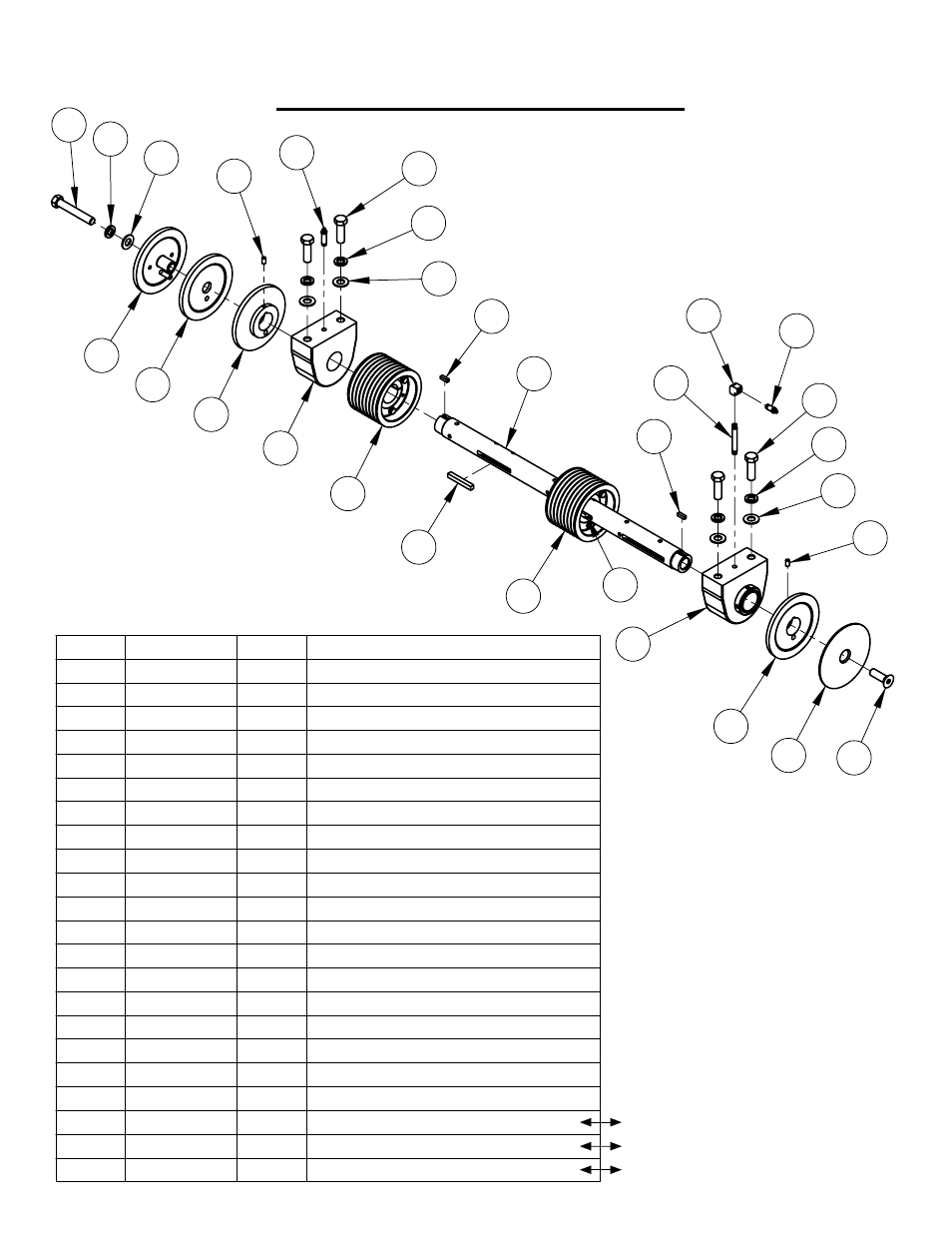

Blade Shaft Assembly #6012151* (Front)
#2500369 for saws prior to May 2007
#2500454 for saws prior to May 2007
*Use #6012112 for saws prior to May 2007
18
15
15
9
13
11
10
17
3
8
10
11
12
2
8
12
10
11
16
19
7
19
4
14
2
7
6
5
1
9
ITEM
PART NO.
QTY.
DESCRIPTION
1
6012101
1
Blade Shaft
2
2500151
2
Blade Shaft Bearing, 1-3/4"
3
2900264
1
Grease Fitting, 1/8" NPT x 1-3/4"
4
2900198
1
Grease Fitting, 1/8" NPT x 1-1/4"
5
3200154
1
Pipe Elbow, 1/8" NPT Female
6
3200179
1
Pipe Nipple, 1/8" NPT x 3"
7
6011058
2
Key, 3/8" Sq. x 2-3/4"
8
6010040
2
Key, 1/4" Sq. x 13/16"
9
2900418
2
Set Screw, Soc. Hd., 5/16-18 x 5/8"
10
2900002
5
Flat Washer, 5/8" SAE
11
2900113
5
Lock Washer, 5/8" Split
12
2900136
4
Cap Screw, Hex Hd., 5/8-11 x 2"
13
2900130
1
Cap Screw, Hex Hd., 5/8-11 x 4" LH
14
2900711
1
Cap Screw, Flat Hd., 5/8-11 x 2"
15
6010038
2
Inner Flange 6"
16
6010760C
1
Blade Spacer, 6" O.D.
17
6010039
1
Outer Flange 6" with Pin
2900197
1
Dowel Pin, 3/8" Dia. x 2"
18
6010765C
1
Flange Cover, 6" O.D.
19
6012053
2
Sheave, 5.3" x 8 Groove w/Bushing
2500390
1
Sheave, 5.3" x 8 Groove QD Style
2500176
1
QD Bushing, SK x 1-3/4" w/Fasteners
38
