Blade shaft assembly (rear) – Diamond Products C740TE User Manual
Page 39

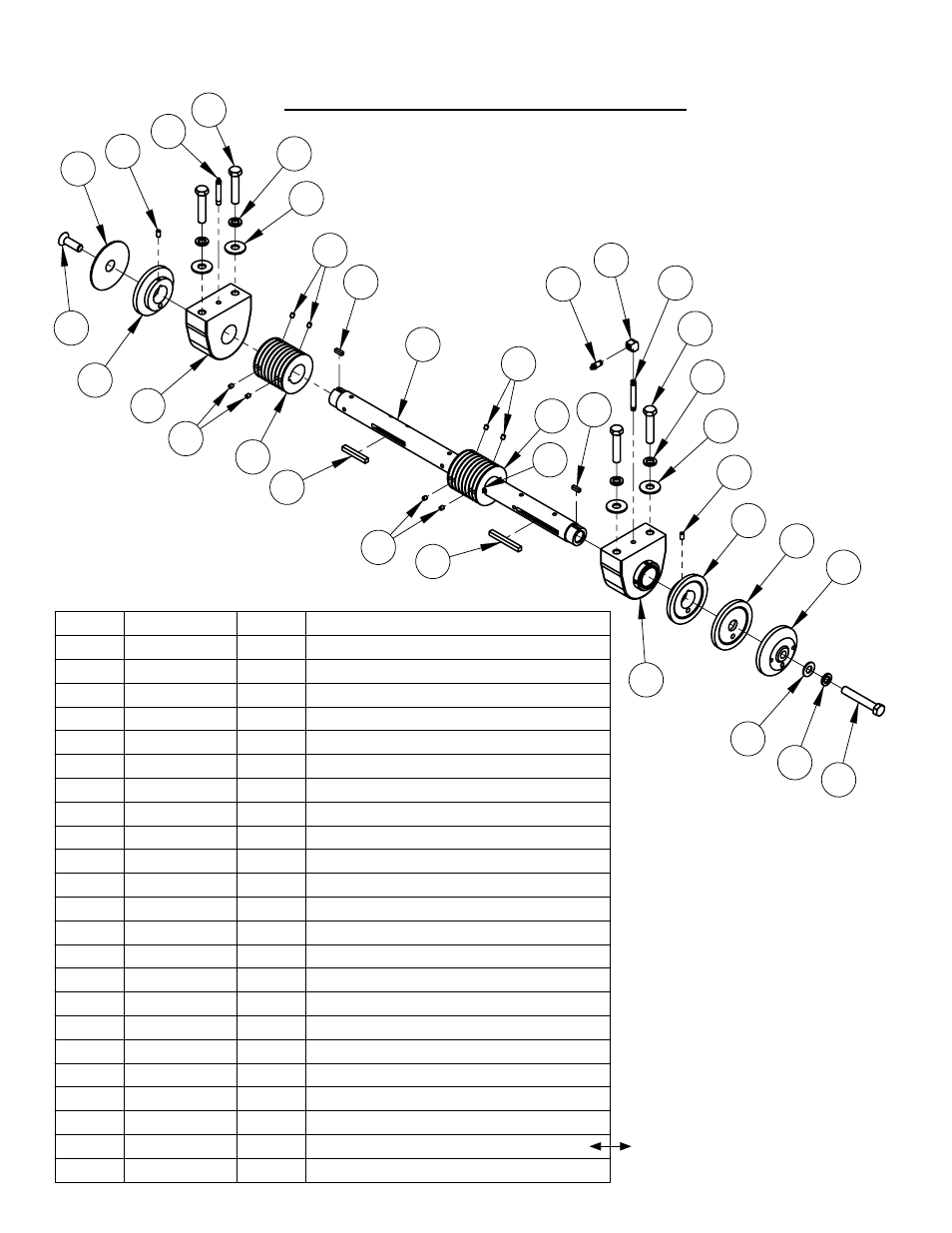

Blade Shaft Assembly #6012152* (Rear)
8
10
3
9
11
12
13
2
9
13
11
12
10
2
16
22
21
7
21
18
14
12
15
8
1
6
5
4
20
22
17
17
22
22
19
#6011009 for saws prior to May 2007
*Use #6012113 for saws prior to May 2007
ITEM
PART NO.
QTY.
DESCRIPTION
1
6012101
1
Blade Shaft
2
2500151
2
Blade Shaft Bearing, 1-3/4"
3
2900709
1
Grease Fitting, 1/8" NPT x 2-5/8"
4
2900198
1
Grease Fitting, 1/8" NPT x 1-1/4"
5
3200154
1
Pipe Elbow, 1/8" NPT Female
6
3200179
1
Pipe Nipple, 1/8" NPT x 3"
7
6012065
1
Key, 3/8" Sq. x 3-1/2"
8
6011058
2
Key, 3/8" Sq. x 2-3/4"
9
6010040
2
Key, 1/4" Sq. x 13/16"
10
2900418
2
Set Screw, Soc. Hd., 5/16-18 x 5/8"
11
2900721
4
Flat Washer, 5/8" USS Hardened
12
2900113
5
Lock Washer, 5/8" Split
13
2900195
4
Cap Screw, Hex Hd., 5/8-11 x 3"
14
2900002
1
Flat Washer, 5/8" SAE
15
2900146
1
Cap Screw, Hex Hd., 5/8-11 x 4"
16
2900712
1
Cap Screw, Flat Hd., 5/8-11 x 2" LH
17
6010036
2
Inner Flange 4-1/2"
18
6010760A
1
Blade Spacer, 4-1/2" O.D.
19
6010037
1
Outer Flange 4-1/2" with Pin
2900197
1
Dowel Pin, 3/8" Dia. x 2"
20
6010765A
1
Flange Cover, 4-1/2" O.D.
21
6011139
2
Sheave, 3.65" x 8 Groove x 1-3/4" Bore
22
2900142
8
Set Screw, Soc. Hd., 5/16-18 x 3/8"
39
