MP Series
Chart 5.1 • Parts List
5.0 Parts • Heater Components and Parts List
5.0 Parts

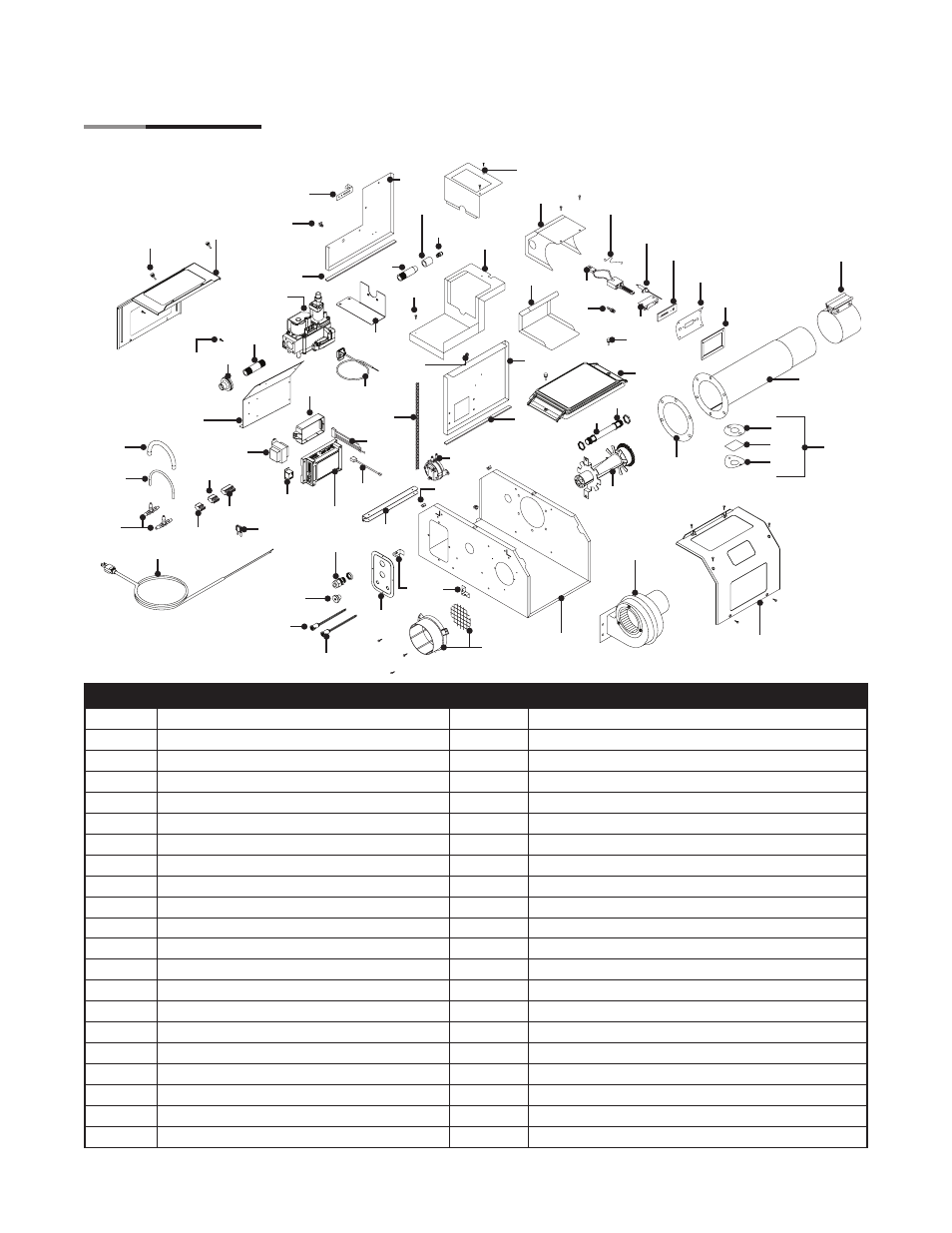

Figure 5.1 • Burner Assembly Components
Part # Description Part # Description
TP-5 Flange Gasket TP-76 3/8” Rubber Grommet
TP-9 3/4” EMT Conduit Coupling TP-82 Reflector Center Support (RCS)
TP-10A 3/4” x 4” EMT Conduit TP-105 Aluminum Reflector End Cap
TP-14 Sight Glass Gasket TP-106 Reflector End Cap Clips (8 pieces)
TP-15 Sight Glass TP-111 5 ft . x 4” Black Coated Aluminized Steel Tube
TP-16 Sight Glass Washer TP-112 5 ft . Polished Aluminum Reflector
TP-17 Sight Glass Kit TP-113 Reflector Tension Spring
TP-19B 4” Wire Hanger w/ Tension Spring TP-201B High BTU Burner (Color Code - TAN)
TP-20C 10 ft . Polished Aluminum Reflector TP-204 Gas Orifice (Consult Factory)
TP-20D 10 ft . Stainless Steel Reflector TP-205 Glo-Bar Holder
TP-21B 4” Standard Tube Clamp TP-206 Glo-Bar Holder Spring Clip
TP-26A 10 ft . Aluminized Radiant / Combustion Tube TP-212 1/2” N .P .T x 3” Pipe Nipple
TP-26B 10 ft . Titanium Stabilized Combustion Tube TP-217 Brass 1/8” N .P .T . Barb Fitting
TP-26D 10 ft . 304 Stainless Steel Radiant Tube TP-219 12” Pneumatic Tube for Pressure Switch
TP-26E 10 ft . 409 Stainless Steel Combustion Tube TP-220* Stainless Steel Tube Clamp
TP-31D Interlocking Mounting Bracket (Qty . 2) TP-221 Glo-Bar Holder Gasket
TP-50 Glo-Bar Igniter TP-222 Flame Rod
TP-65I 3 ft . Interlocking Turbulator Baffle TP-245 Plastic 1/8” N .P .T . 90° Barb Fitting
TP-68B 1/2” Strain Relief Bushing TP-249 3/16” Pneumatic Tee (Qty . 2)
TP-70 1/2” x 10” Control Box Gasket (Qty . 2) TP-264B Differential Pressure Switch
TP-70A 1” x 6” Manifold Gasket TP-264E Differential Pressure Switch
