Master heater slave heater premium user interface, Figure 2.2 • field wiring diagram “a – Detroit Radiant Products Company MP Series User Manual
Page 10
MASTER DIP SETTINGS
LEGEND
SLAVE DIP SETTINGS
FOR USE WITH TP-3228
NOTE: SHIELD GROUND MUST BE TIED TO GROUND, AS SHOWN
MASTER HEATER
SLAVE HEATER
PREMIUM
USER
INTERFACE
+15V
485-
485+
GND
CHASIS GND
485-
485+
GND
+15V
485-
485+
GND
CHASIS GND
485-
485+
GND
BK
10
MP
Series
2.0
Installation • Thermostat and Other Controls • Field Wiring

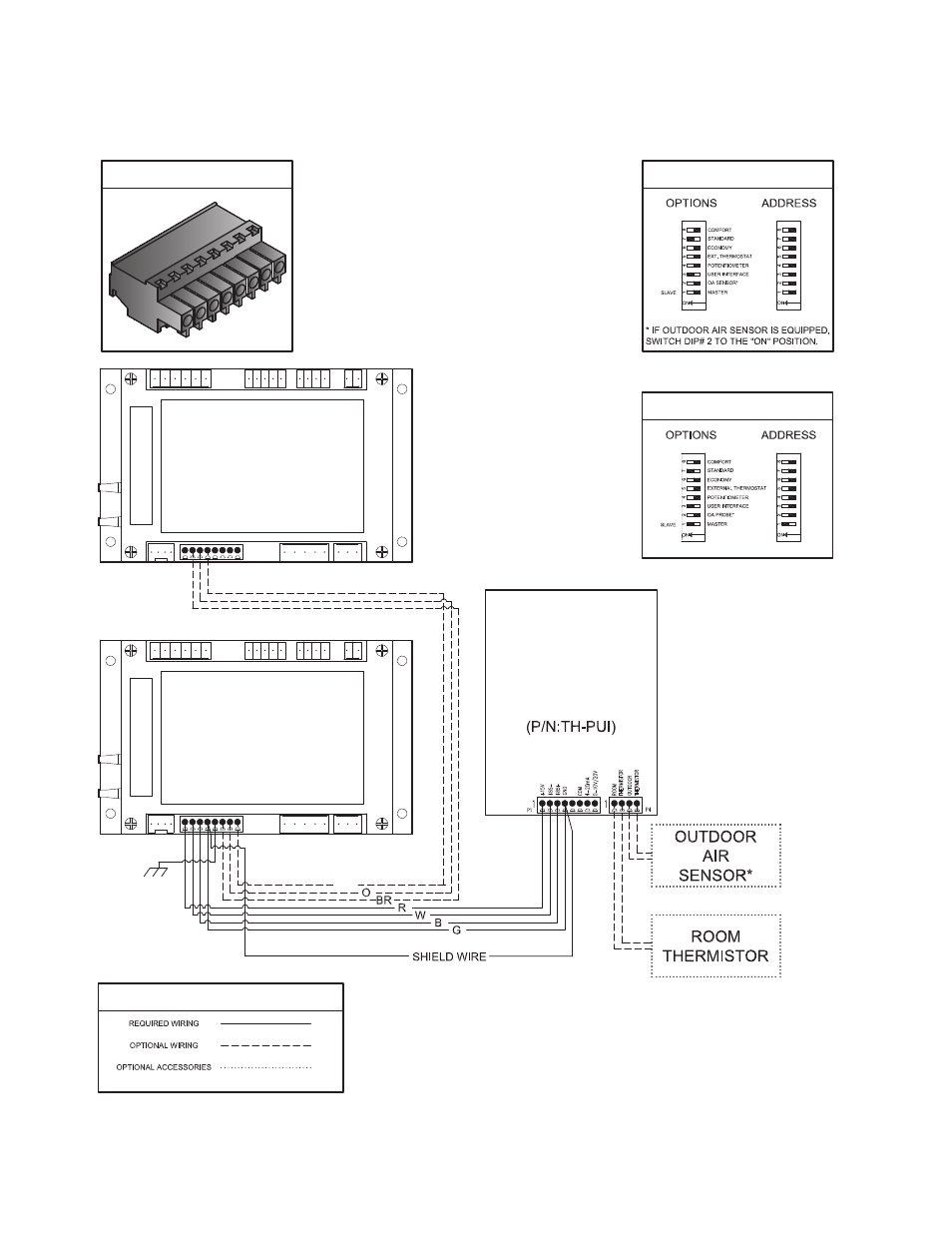

Figure 2.2
•
Field Wiring Diagram
“A”
A. Premium User Interface
