Cabling
For D0 IN and D0 OUT, and Analog Input A1 to A4 on the rear panel of the device you need
coaxial cable: Lemo cable with one head BNC connector, the other head "Lemo" connector.

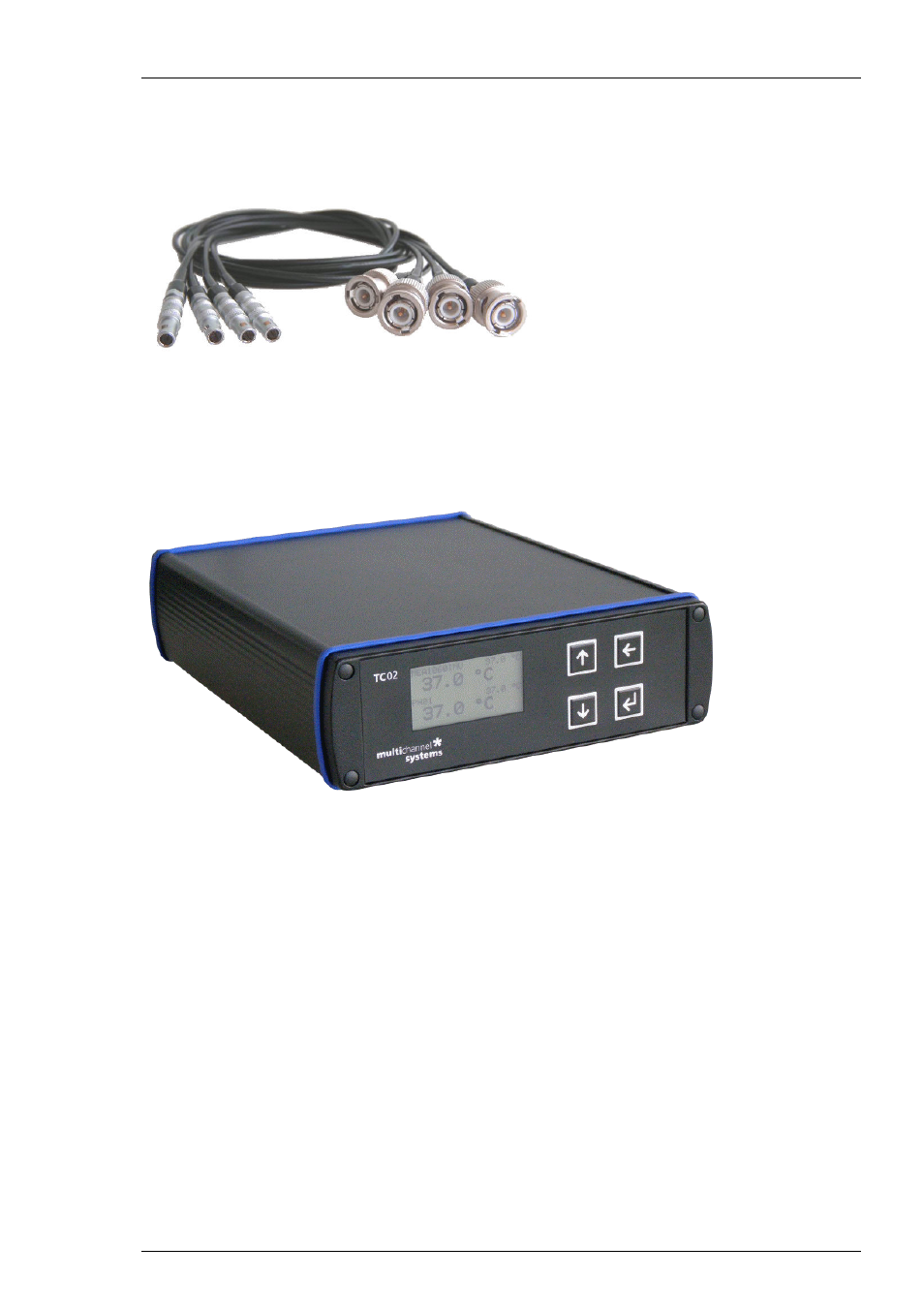

Please see the picture below.
Temperature Controller TC01 / 02
The USB-MEA256-System features a heating element with a PT100 temperature sensor.
If you connect a temperature controller TCX to the heating element via D-Sub 9 connector,
the heating element guarantees constant temperature conditions for the biological sample,
placed on the 256MEA.
