Mirion Technologies R600 Ventus Controller - Manual (Page 3)

QUADTEK
R600 VENTUS
1 High Temperature Camera or Probe ------------------------------------------------------------------------------------------------------------------------------ R600 Series
2 Gimbal Mounting Flange. ------------------------------------------------------------------------------------------------------------------------------------------ R600 Series
3 R600 Camera Interface. ------------------------------------------------------------------------------------------------------------------ Air cooled system - R600CIA03A
-------------------------------------------------------------------------------------------------------------------------------------------- Water cooled system - R640CIA03A
4 R600 Single Air Filter/Regulator. ---------------------------------------------------------------------------------------------------------------------------------- GAS.00160
5 R600 Camera Cable (5 metres long). --------------------------------------------------------------------------------------------------------------------------- R600CAB03A
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
6 R600 cooling hose; Aeroquip SH925 with 1/2" BSP fittings (5 metres) -------------------------------------------------------------------------------- R600CHB03A
6a R600 cooling hose; Aeroquip SH925 with 1/2" BSP fittings (5 metres) -------------------------------------------------------------------------------- R600CHA03A
7 R600 cooling hose Aeroquip SH925 with 1/2" BSP fittings (1 metre) ---------------------------------------------------------------------------------- R600CHB04A
7a R600 cooling hose Aeroquip SH925 with 1/2" BSP fittings (1 metre) ---------------------------------------------------------------------------------- R600CHB04A
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
8 R600 Control Box ------------------------------------------------------------------------------------------------------------------------------------ R600CBA03A (connector)
-------------------------------------------------------------------------------------------------------------------------------------------------------------- R600CBB03A (Glands)
----------------------------------------------------------------------------------------------------------------------------------------- R600CRA03A (19" rack mount version)
9 Colour monitor 14" screen; metal case, 110-260VAC, PAL/NTSC ---------------------------------------------------------------------------------------- MON.00460
10 Video coaxial cable RG59 ------------------------------------------------------------------------------------------------------------------------------------------- CAB.00420
11 Cross site cable composite video, power and alarms ----------------------------------------------------------------------------- R600CAB06A (for CBA and CRA)
------------------------------------------------------------------------------------------------------------------------------------------------------------- R600CAB07A (for CBB)
Please refer to IST technical datasheets for component specifications.
ALARM
OUTPUT MONITOR
~
VIDEO
~ 120V 50/60Hz (Std)
230V 50/60Hz (Optional)
CAMERA
CONTROL BOX
UP TO
250 METRES
WATER DRAIN
CAMERA INTERFACE
AIR FILTER/
REGULATOR
WATER INPUT
AIR INPUT
COOLANT SUPPLY
CAMERA/PROBE
GIMBAL MOUNTING
FLANGE
1
2
6a 6
5
6a
7 4
3
7a
11
8
9
10

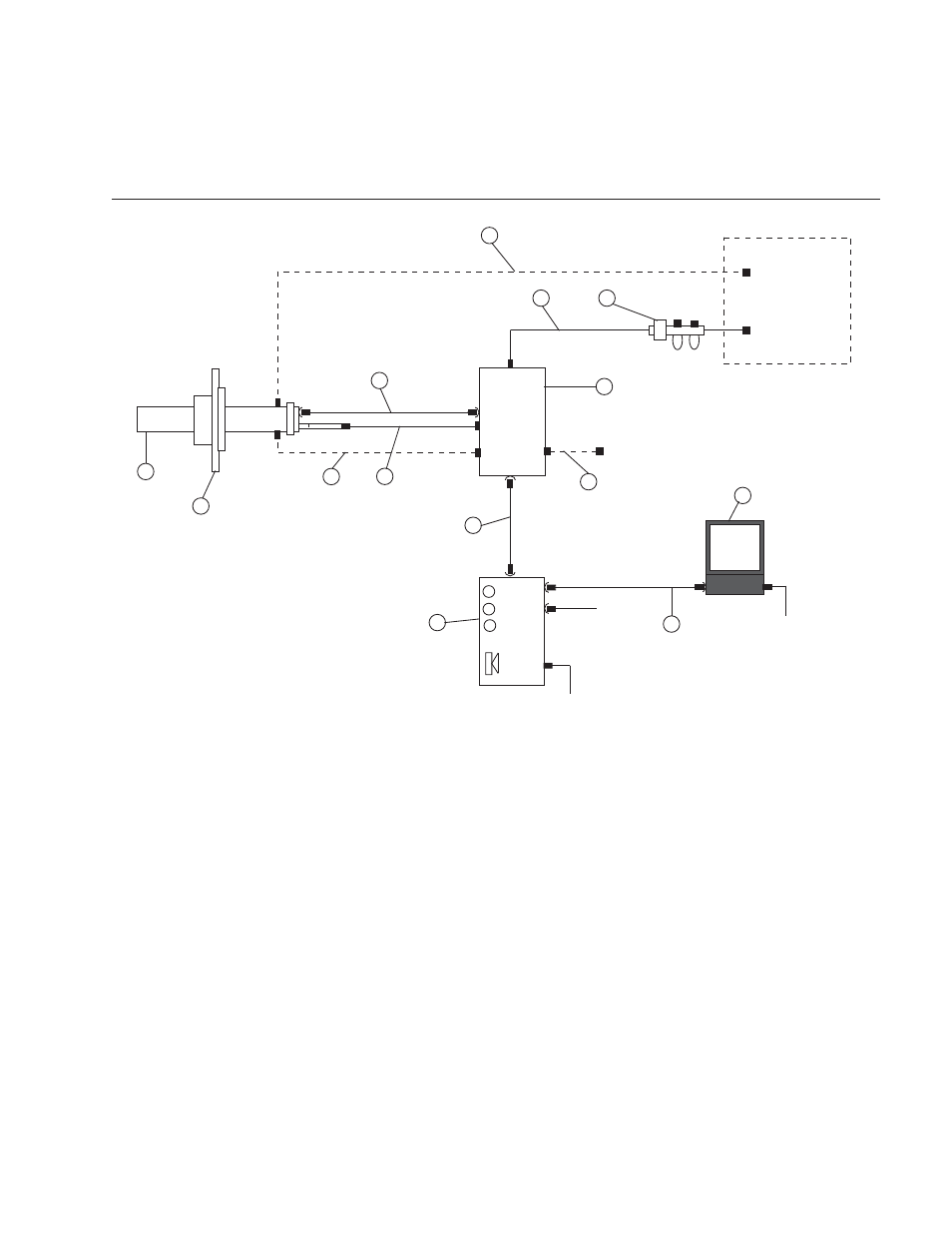

Typical Standard System Configuration
*
*Dotted line for water
cooled cameras only.
