Technical specifications: checkpoint:Waste™ rTM644
Detector
Type
Size
RADOS
Plastic Scintillation Detector
RPD25/125
RPD15/78
RPD14,5/72,5
50 x 50 x 5 cm
42 x 37 x 5 cm
50 x 29 x 5 cm
detector housing, shielding
aluminium, 3 mm, 4π with 50 mm lead bricks
electronics
Industrial PC, hard disc, CD-RW disc drive, LC-display, keyboard with mouse,
printer interface, USB device, operators desk, electronics cabinet, control console
software
Real-time, multi-tasking operating system QNX (UNIX like, POSIX compliant),
user software, System Check tool, lnc (leading nuclide correlation)

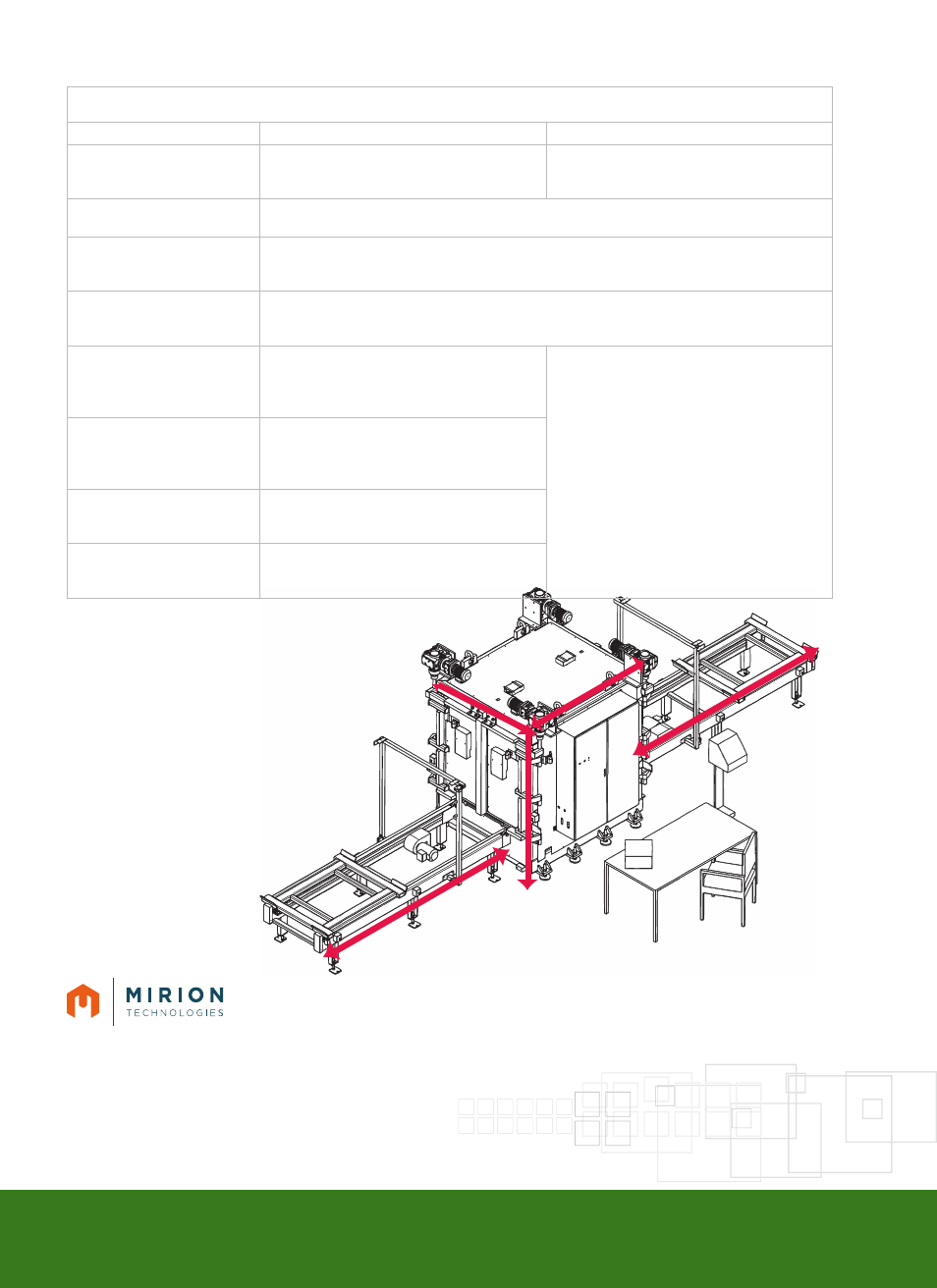

Dimensions
(see also figure)
overall
1900 mm x 1800 mm x 2150 mm
chamber 1360 mm x 1120 mm x 1200 mm
weight approx. 12 000 kg to 16 000 kg
environmental conditions
Temperature
0 °C - 45 °C
Relative humidity < 75 %, max. 95 %
on yearly average, no condensation
eMc
Compliant with European Electromagnetic
Compatibility Directives
Mechanical options
Installation in container,
setup with office container on request
7NUC_RTM644_Y015-042E_3_PDB
Minimum detectable activity (MDA)
Some examples for geometry and nuclides
for a grid box with a filling level of 100 %
parameters: t
0
= 300 s BG = 0.15 µSv/h,
K1-
α = 1.65 s (false alarm safety);
K1-ß = 1.65 s (detection safety);
K1-
γ = 1.65 s (confidence level)
100 kg
300 kg
600 kg
t
m
60
Co
55 Bq
70 Bq
100 Bq
60s
137
Cs
170 Bq
210 Bq
280 Bq
60s
RADOS RTM644lnc
Large Clearance Monitoring System
CheckPoint:Waste™ family
