ELECTRONIC THERMOSTAT
The electronic thermostat displays room temperature if the cooling system is on. Select the temperature
you want by pressing the ▲ or ▼ buttons. (The word COOL and the temperature setting is displayed for
5 seconds). The FAN button controls the evaporator fan motor . In the ON selection mode the fan runs
continuously. In the AUTO selection mode the fan cycles with the compressor. The OUTDOOR button is
not used in portable air conditioning. The MODE button controls the cooling function by selecting COOL
or OFF. The DAY/NIGHT allows day and night set points. A built in 4 minute time delay protects the
compressor from short cycling. Pressing the ▲ and ▼ simultaneously switches the display between
Celsius and Fahrenheit.
A two position rocker switch located next to the thermostat provides high fan when depressed upward,
low fan speed when depressed downward. The red light above or next to the rocker switch indicates tank
is full and needs to be emptied. (Except 5-ton which is factory equipped with a condensate pump).
FILTER
All units are
equipped with
1/2 or 1/8 inch
thick, washable,
mesh air filters
located behind
the evaporator
and condenser
inlet air grilles.
They can be
easily removed
and cleaned. Just
pull the grilles
out and remove
the filters.
SERVICE
CORD
All AirBoss
Series units are
equipped with
the standard ten
foot long service
cord with plug
configurations
and receptacle
requirements as
shown in this
chart. As of Au-
gust 1, 2004 units
will be equipped
with electric pro-
tection devices
(LCDI/AFCI), as
required by UL.
LCDI
(
Leakage Current
Detection & Interruption.
AFCI (Arc Fault Circuit
Interrupter).
5 airbossmanpg5

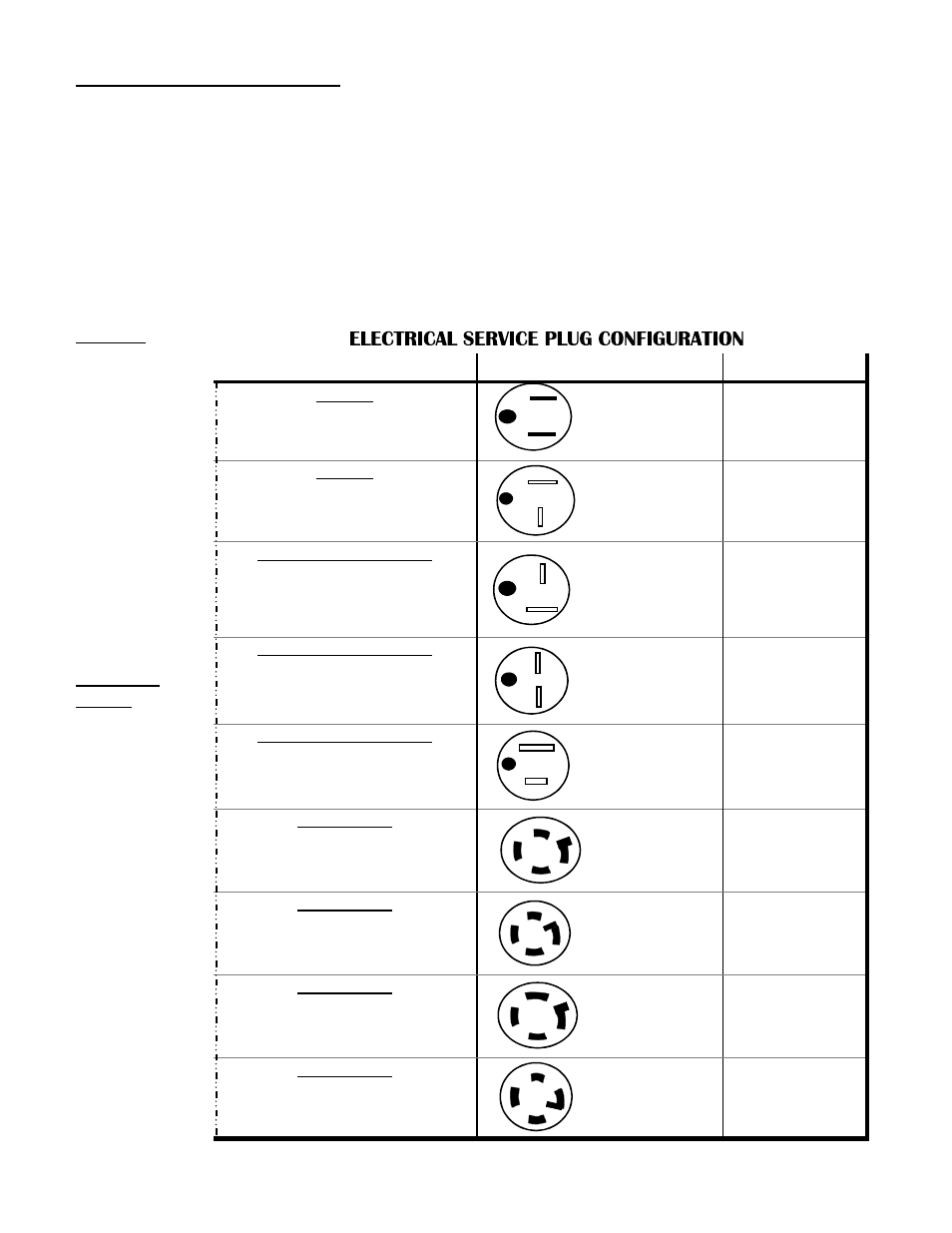

UNIT/MODEL PLUG CONFIGURATION RECEPTACLE
115 VOLT
PWC1011, PWC1211, PWC1811
PAC1011 , PAC1211, OWC1211,
OWC1811, OAC1211, OACH1211
NEMA-5-15R
115 VOLT
PAC18 , OAC18, OACH18
NEMA 5-20R
208/230 VOLT SINGLE PHASE
PAC1012,1212,1812,2412
OAC1212,1812,2412
OACH1212,1812,2412
PWC1012,1212,1812,2412,3612
OWC1212,1812,2412,3612
NEMA 6-20R
208/230 VOLT SINGLE PHASE
PAC3612 , OAC3612, OACH3612
PWC6012 , OWC6012
NEMA 6-30R
208/230 VOLT SINGLE PHASE
PAC6012,
OAC6012,
OACH6012
NEMA 6-50R
208/230 3 PHASE
OAC/ PAC3632
OACH3632
OWC3632, PWC3632
NEMA L15-20R
208/230 3 PHASE
PAC6032
OAC6032,OACH6032
PWC6032 ,OWC6032
NEMA L15-30R
460/480 3 PHASE
OAC/ PAC3634
OACH3634
PWC /OWC 3634
NEMA L16-20R
460/480 3 PHASE
OAC6034, PAC6034
OACH6034
PWC /OWC 6034
NEMA L16-30R
15A-125 VOLT
NEMA 5-15P
20A-125 VOLT
NEMA 5-20P
20A-250 VOLT
NEMA 6-20P
30A-250 VOLT
NEMA 6-30P
50A-250 VOLT
NEMA 6-50P
20A-250 VOLT
NEMA L15-20P
30A-250 VOLT
NEMA L15-30P
30A-460 VOLT
NEMA L-16-30P
20A-460 VOLT
NEMA L16-20P
