STANDARD FEATURES
SERVICEABILITY
All AirBoss Series units are designed with removable panels to provide full service accessibility. Turn to
page 13 “Part Replacement Procedure” for removal of the correct panel when replacing a part. The
interior is divided into three sections. The upper front face encloses the evaporator coil and blower
assembly. The lower front section contains the electrical controls and the condensate holding tank and its
level detection system. The rear section encases the compressor, condenser blower assembly and the
condenser coil.
ATTRACTIVE CABINET
The AirBoss Series cabinet is constructed of 18 gauge galvanized steel with a platinum texture polyester
powder coated finish that will compliment any decor. The entire cabinet is insulated with a sound
absorbant insulation for cool, quiet comfort.
HIGH PRESSURE SAFETY SWITCH
All units incorporate a manual re-set high pressure switch for maximum protection of the refrigeration
system and compressor. The cut-out pressure setting is 375 ±5 psig for models 10, 12, 18, 24 and 425 ±5
psig for models 36 and 60. If the pressure exceeds this setting, the compressor stops and can be re-started
by depressing the “RESET” button located on the back panel of the unit. The high pressure control’s
capillary line is attached to a schrader valve. This allows replacement of a defective control without
recovering the refrigerant.
4

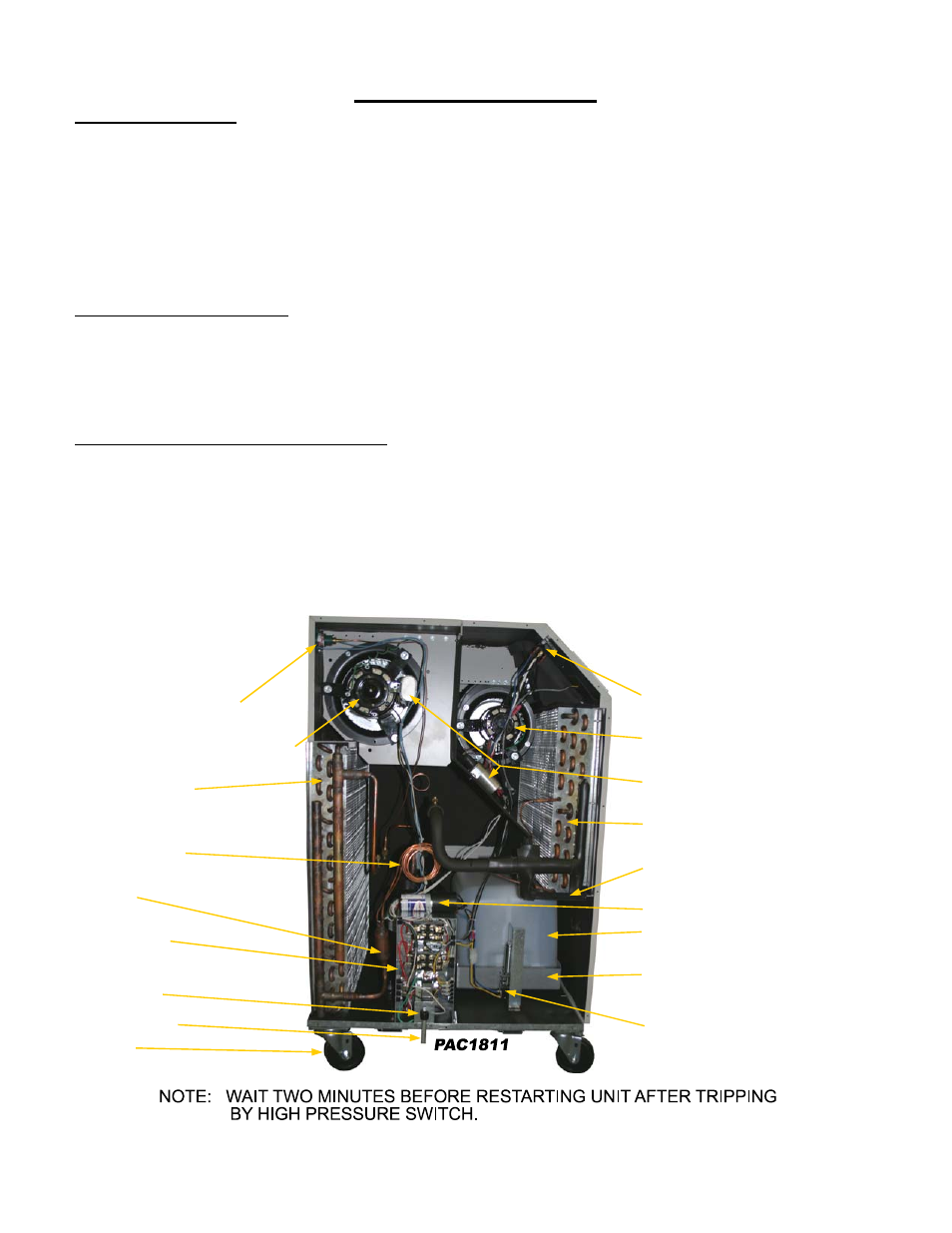

High Pressure Switch
Condenser Blower Assembly
Condenser Coil
Capillary tube
Strainer
Control Box
Heyco strain relief
bushing
Service Cord
Casters
Hi/Lo Fan Switch
Evaporator Blower Assembly
Motor Capacitors
Evaporator Coil
Evaporator Pan
Start Assist
Condensate Tank
Condensate Tank Tray
Water Level Detection
Control
