CONDENSER INLET AIR PLENUM
DCP, Condenser Plenums are used to duct condenser air to the unit. The plenum easily attaches with one
screw (supplied) to the back of the unit. The plenum transitions the condenser inlet air opening to 12 inch
round on the PAC10,12,18, 24 and 36. The PAC60 uses 2-12 inch round.
25 equivalent feet (.25 E.S.P.) of 12 inch round duct can be applied to the PAC10 and 12. 50 equivalent feet
(.25 E.S.P.) of 12 inch round duct can be applied to the PAC18, 24 and 36. 100 equivalent feet (.50 E.S.P.)
of 2-12 inch round ducts can be applied to the PAC60.
To calculate “equivalent feet”, add the length of the condenser intake duct run and the length of the
condenser air discharge duct run...allowing for elbows ( adding 6 equivalent feet per 90° (elbow). This is
total equivalent feet. At any rate, do not exceed the rated E.S.P.
Condenser air plenums can substantially reduce air noise and increase the number of options for solving
difficult cooling problems.
AirBoss has a dedicated blower for the condenser section and a dedicated blower for the evaporator section.
So, the “equivalent feet” may be applied to either or both sections at the same time.
Model
Evaporator
Plenum
Round
Duct
Size
PAC
10
PAC
12
PAC
18
PAC
24
PAC
36
PAC
60
DCP-1
Size/Fits
12 inch Yes Yes No No No No
DCP-2
Size/Fits
12 inch No No Yes Yes No No
DCP-3
Size/Fits
12 inch No No No No Yes No
DCP-4
Size/Fits
2-12 Inch No No No No No Yes
Maximum Approx
Equivalent Feet
(ESP)
- 25
(.20)
25
(.20)
50
(.25)
50
(.25)
50
(.25)
100
(.50)
10 airbossmanpg10

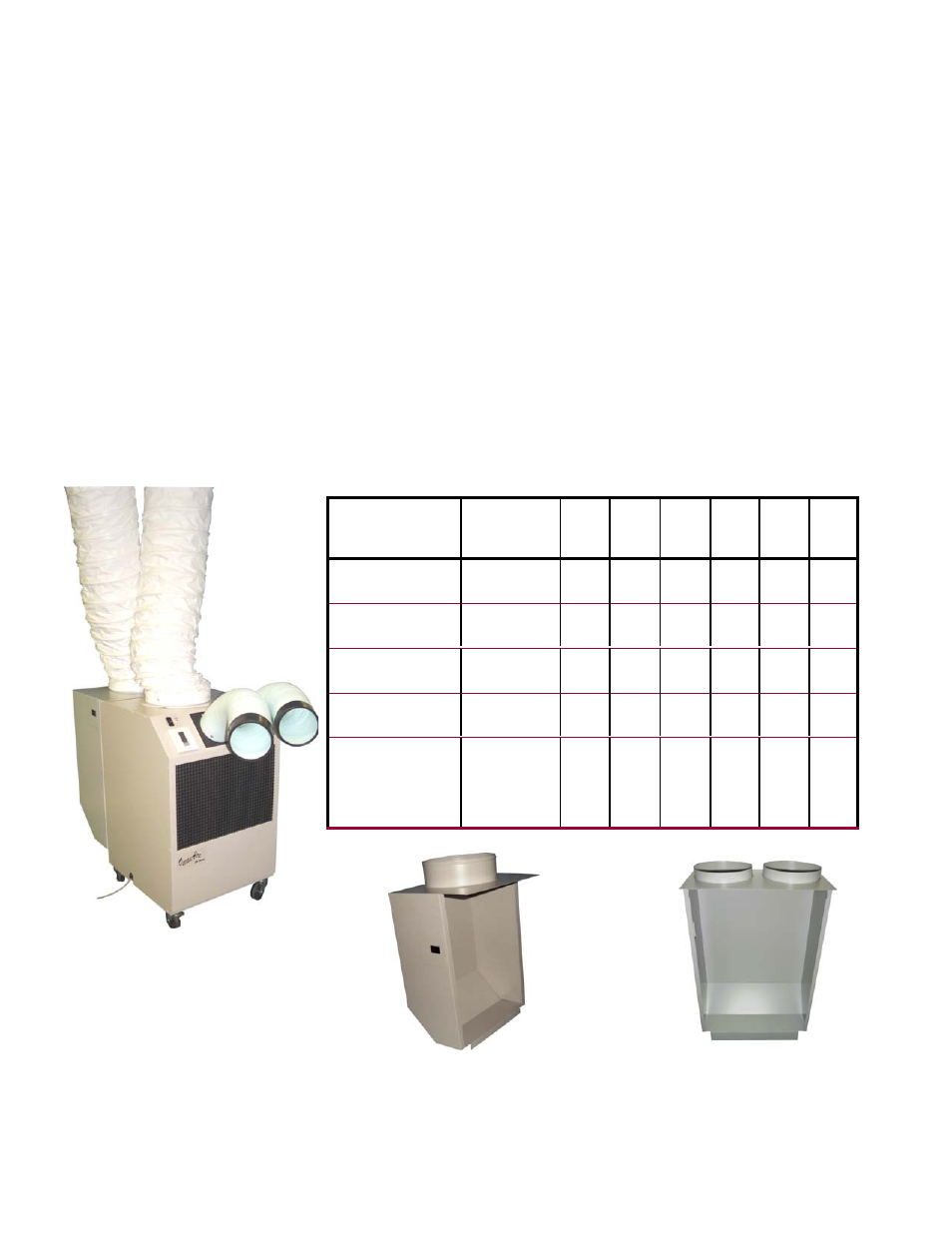

PAC1811 with DCP-2 installed
DCP-2
DCP-4
