Hhy yf fiir re e 6 6a al l2 2 – Mallory Ignition Mallory HYFIRE 6AL2 ELECTRONIC IGNITION CONTROL 6861m User Manual
Page 12
®
PART No. 6861M
YELLOW
BLUE
TO TACHOMETER
AUX RPM LIMITER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (-)
GREEN
PURPLE
RED (SMALL 18 GA)
MAGNETIC PICKUP
NOT USED
ORIGINAL COIL (+) WIRE
SPLICE HERE
WHITE
(-) BLACK (SMALL 18 GA)
AMPLIFIER
ORIGINAL COIL (-)
TERMINAL FROM
AMPLIFIER
TO IGNITION
SWITCH
(+) ORANGE
SPLICE HERE
www.malloryracing.com
©2005
12

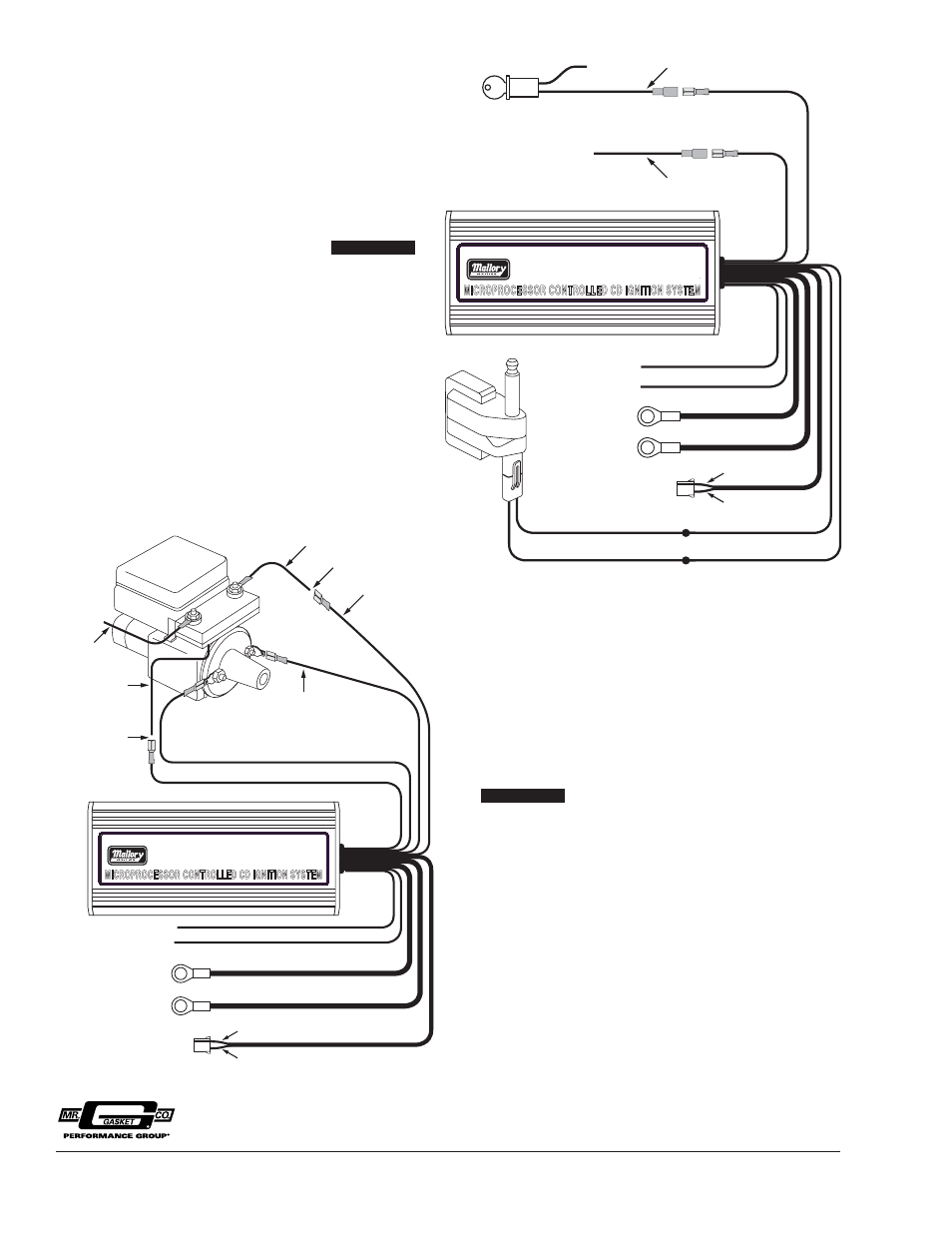

Installing the HYFIRE
®
6AL2 with
a Typical Import Application
FORM 1643
03/05
Made in U.S.A.
Printed in U.S.A.
MALLORY IS A DIVISION OF THE MR. GASKET PERFORMANCE GROUP
10601 MEMPHIS AVE. #12, CLEVELAND, OH 44144
216.688.8300
FAX 216.688.8306
FIGURE 23
®
PART No. 6861M
BLACK (SMALL 18 GA)
ORANGE
BLACK/GRAY OR GRAY
YELLOW
BLUE
TO TACHOMETER
AUX RPM LIMITER
RED (LARGE 14 GA)
TO BATTERY POS (+)
BLACK (LARGE 14 GA)
TO BATTERY NEG (-)
WHITE
ORIGINAL COIL (+) WIRE
GREEN
PURPLE
GREEN/ORANGE
RED (SMALL 18 GA)
GREEN/ORANGE
IGNITION KEY
TO 12 VOLTS
MAGNETIC PICKUP
NOT USED
BLACK/GRAY
FROM POINTS OR
ELECTRONIC IGNITION
AMPLIFIER
ORIGINAL COIL (-) WIRE
Installing the HYFIRE
®
6AL2 with a Late
Model Dodge (with 2-Pin Connector)
FIGURE 22
H
HY
YF
FIIR
RE
E 6
6A
AL
L2
2
H
HY
YF
FIIR
RE
E 6
6A
AL
L2
2
