Magnum Venus Plastech Hypaject MK III User Manual
Page 7
Hypaject MK III Instructions
Issue 07: April 2001-04-23
7
20 Load Platform Up/Down
Turn left to lower resin platform, right to raise resin platform and centre to hold resin
platform in position.

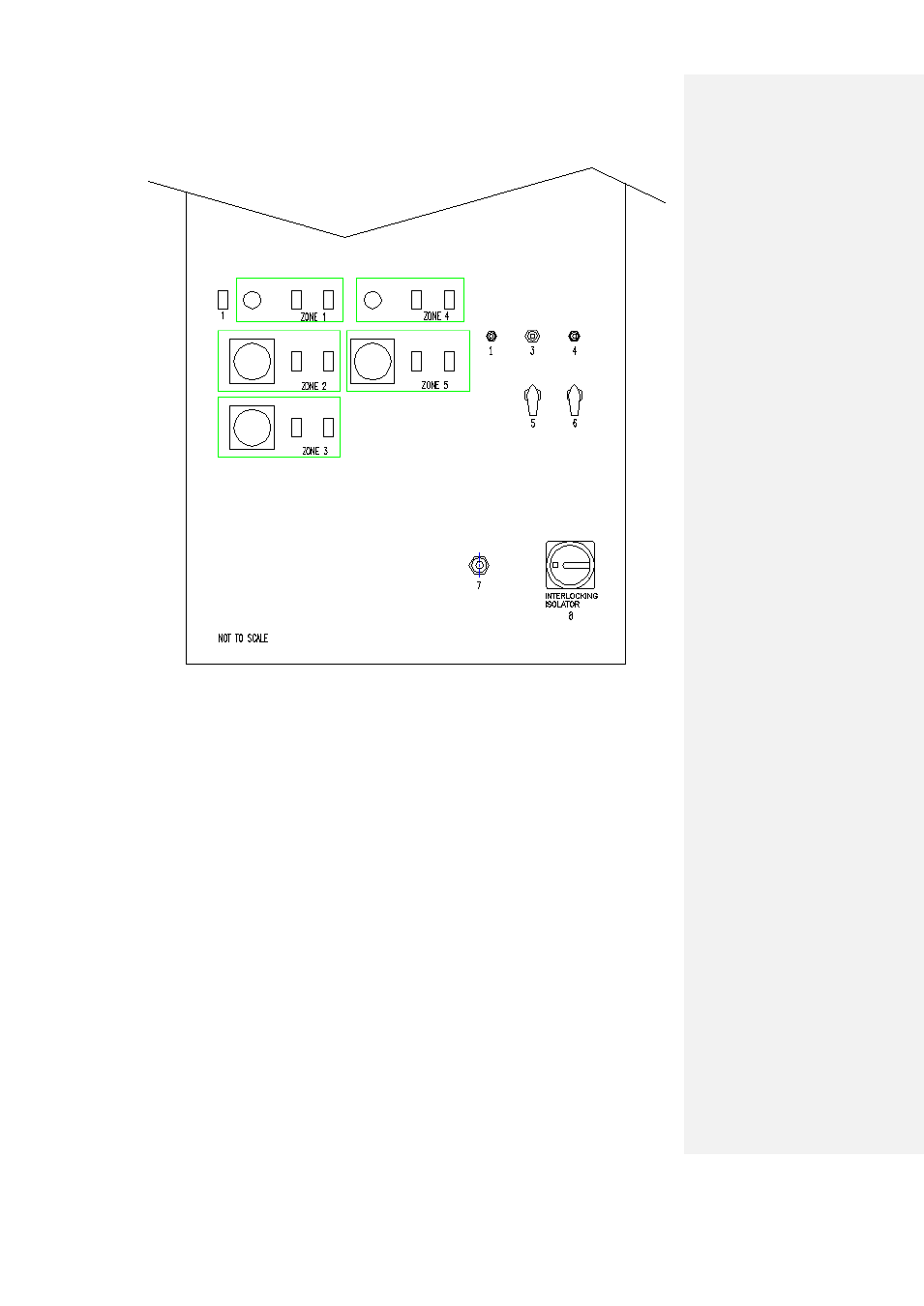

Desktop Cabinet Rear
1. Homogeniser thermocouple connector. (option)
Provides input from homogeniser thermocouple to homogeniser temperature readout unit.
2. Mould Vacuum Connection
6mm quick fit connector for mould vacuum output. (option)
3. External Pressure Source. (option)
6mm connection port for external machine pressure source (max 10 bar). Allows alternative
gasses to be used. e.g. Argon
4. External Vacuum Source. (option)
6mm quick fit connector enables external vacuum sources to be connected. Allows greater
homogeniser vacuum levels to be achieved.
5. External/internal Pressure Source Selector (option)
180 degree operation. Enables selection of internal or external pressure source. Turn
towards external connection port to enable external source.
6. External/Internal Vacuum Source Selector (option)
