3 control panel – Magnum Venus Plastech Hypaject MK III User Manual
Page 5
Hypaject MK III Instructions
Issue 07: April 2001-04-23
5

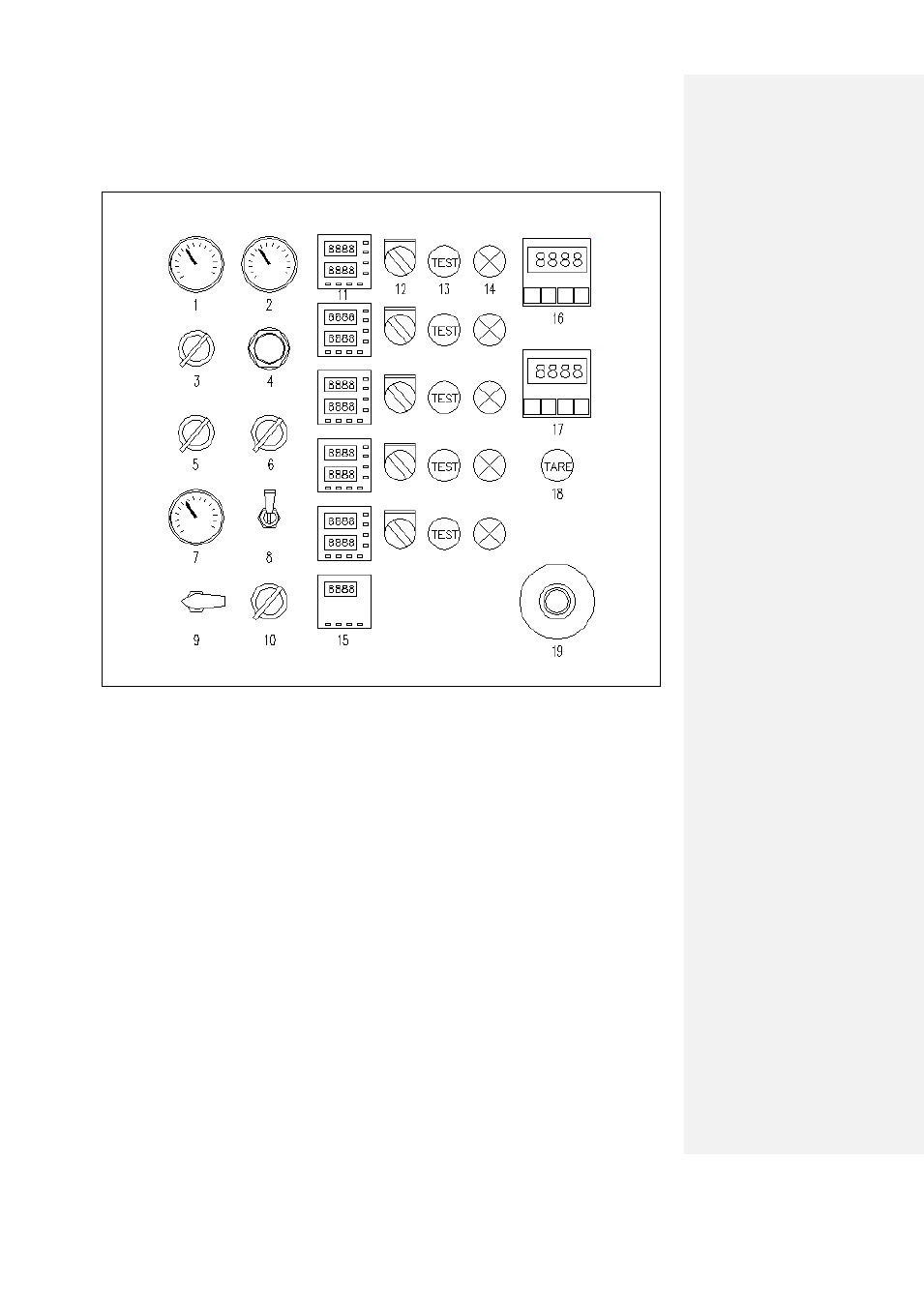

2.3 Control panel
2.3.2 Desktop Mounted Control Cabinet
1. Homogeniser Vacuum Gauge
Measures the vacuum level in the homogeniser when under vacuum
2. Homogeniser Pressure Gauge
Measures the pressure in the homogeniser when pressurised
3. Homogeniser Vacuum/Off /Pressure switch
Switches the homogeniser between operating under vacuum and operating under pressure.
Releases vacuum or pressure in Off position
4. Homogeniser Pressure Regulator
Adjusts homogeniser pressure. Push in to lock regulator
5. Autosprue Open/Close
Sends the open/close signal to the Autosprue control valve.
6. Injection & Load Valves Open/Close
Opens the diaphragm valves between the homogeniser and the mould injection hose and
the homogeniser and the resin load pipe.
7. Mould vacuum level indicator (option)
Indicates mould vacuum output level
