Hypaject MK III Instructions Issue 07: April 2001-04-23 18
5.0 Maintenance
CAUTION :- Wear suitable protective clothing , approved eye protection
goggles and chemically resistant gloves at all times when carrying out any
maintenance on the Hypaject as solvents and resin systems may still be
present within the units internal parts
Disconnect electrical and pneumatic supplies before commencing any maintenance.
As the Hypaject has no basically no “moving” parts it requires very little maintenance.
The following should be checked at least every 12 weeks of constant use.
5.1 Resin Homogeniser
The Homogeniser internals can be accessed by removing the two Victaulic clamp ring bolts.
Carefully prise the clamp split ring clamp apart whilst ensuring lower Homogeniser body is
supported. The Victaulic seal will now be visible and can be removed as the lower body is
carefully lowered.
The Homogeniser internals can be inspected at this stage and cleaned as required.
Reassemble in reverse order.

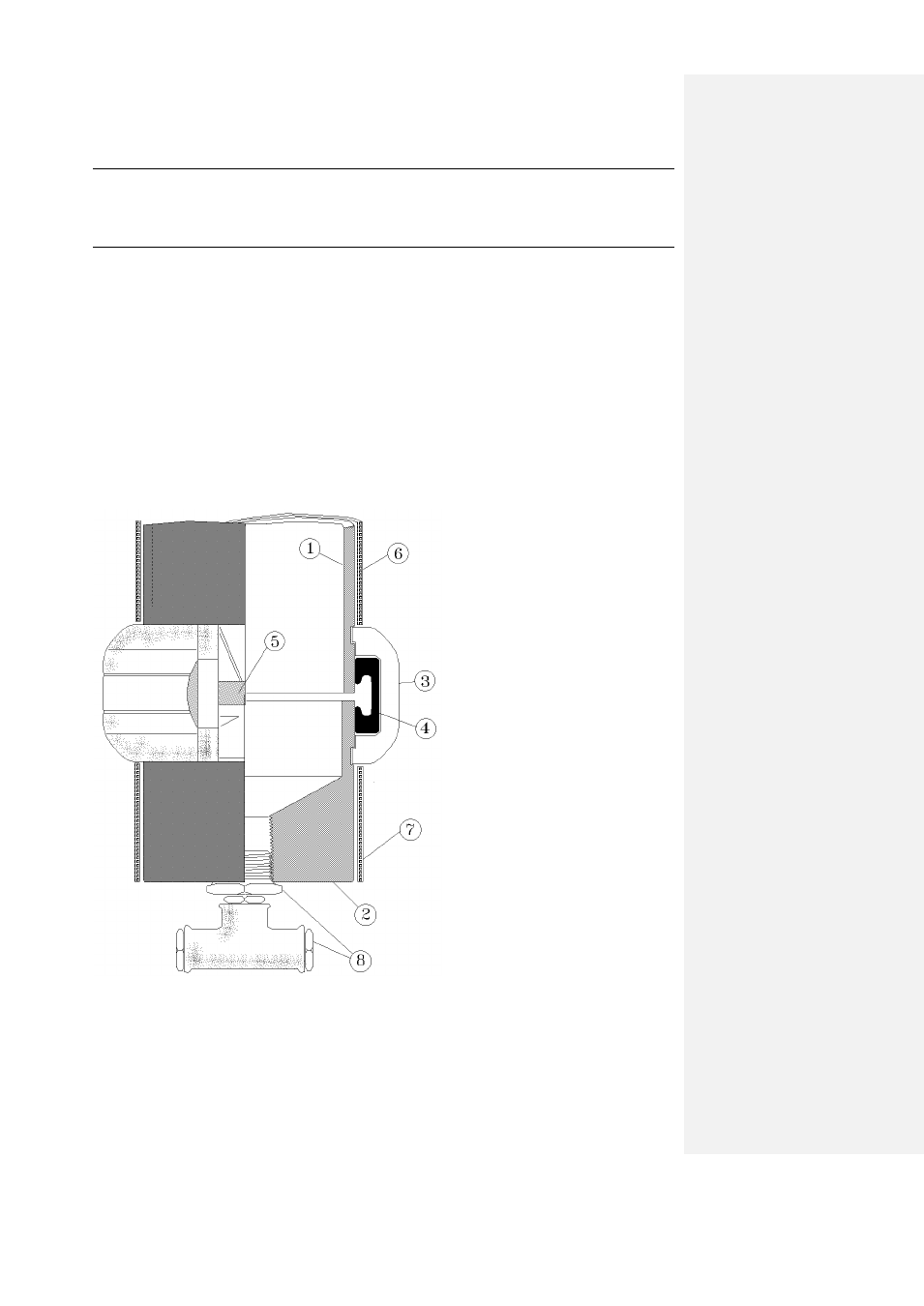

1. Homogeniser main body(top) 5. Victaulic clamp bolt (x 2)
2. Homogeniser body (lower ) 6. Main body heater element (x 2)
3. Victaulic seal clamp (two part) 7. Lower body heater element
4. HT Victaulic seal 8. Resin Inlet /Outlet fittings (BSP)
