Magnum Venus Plastech Infusion Unit DHV-5100-INT - Manual (Page 42)

Infusion Unit Operations Manual
Rev. 10/2012 Page | 42
DESCRIPTION PART NO. ITEM
PARTS LIST
QTY
3 Gal Flush Tank Assy 6101-01-01
2 8703-3-1 1 3 GAL FLUSH TANK INLET TUBE
3 8703-4-1 1 3 GAL FLUSH TANK OUTLET TUBE
4 8703-1-1 1 FLUSH TANK CHECK VALVE
6 55210-1 2 HOSE FITTING
10 O-E-109 2 O-RING
11 7701-6-10 1 STRAIGHT POLY FITTING
13 6701-13-EN 1 AIR DECAL
14 6701-14-EN 1 SOLVENT DECAL
12 6701-12-EN 1 PRESSURE RELIEF INSTRUCTION
15 95172-EN 1 DECAL - MAGNUM VENUS PRODUCTS
8 8703-5-1 1 FLUSH TANK RELIEF VALVE
9 O-E-5-381 2 O-RING (1 SPARE)
ASSOCIATED PARTS AND ASSEMBLIES
PART NO. DESCRIPTION ITEM QTY
1 8703-2-1 1 3 GAL FLUSH TANK W/ ACCESSORIES
5 6101-02-01 1 LID ASSEMBLY

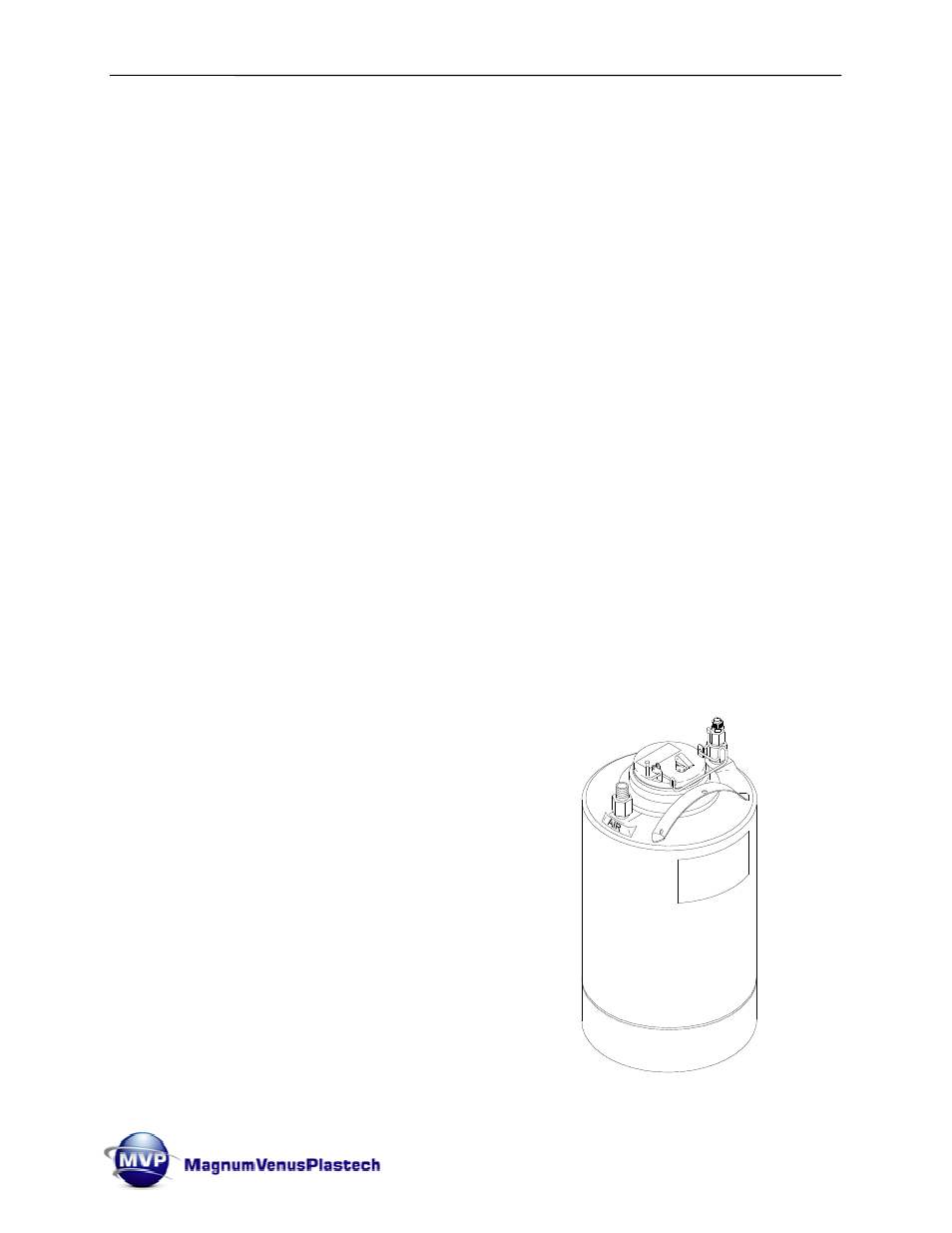

FIGURE 1-1
