14. Install the 7304-1-1 (Piston Seal) onto the treaded end of the
4102-7-1 (Piston Body) spring side up.
15. Install the 4102-8-1 (Piston Guide) onto the 4102-7-1 (Piston Body)
below the 7304-1-1 (Piston Seal).
16. Screw the 4102-9-1 (Seal Retainer) onto the 4102-7-1 (Piston
Body) hand tight.
17. Hold the 4102-2-1 (Piston Rod) with a wrench on the wrench flats,
and tighten the 4102-9-1 (Seal Retainer) with another wrench.
18. Insert the Piston Rod assembly into the 4102-6-1 (Cylinder)
screwing the 4101-14-1 (Outlet Body) onto the cylinder threads.
19. Align the 4101-14-1 (Outlet Body) so the outlet port is one hex flat
to the left of the inlet port of the 4101-7-1 (Inlet body). See Fig. 4.1.
NOTE
Note orientation of seal on drawing. Note orientation of seal on drawing. Note orientation of seal on drawing. Note orientation of seal on drawing. Note orientation of seal on drawing.
NOTE
Screw the Outlet body down until you feel the O-Ring start to Screw the Outlet body down until you feel the O-Ring start to Screw the Outlet body down until you feel the O-Ring start to Screw the Outlet body down until you feel the O-Ring start to Screw the Outlet body down until you feel the O-Ring start to
compress. compress. compress. compress. compress.

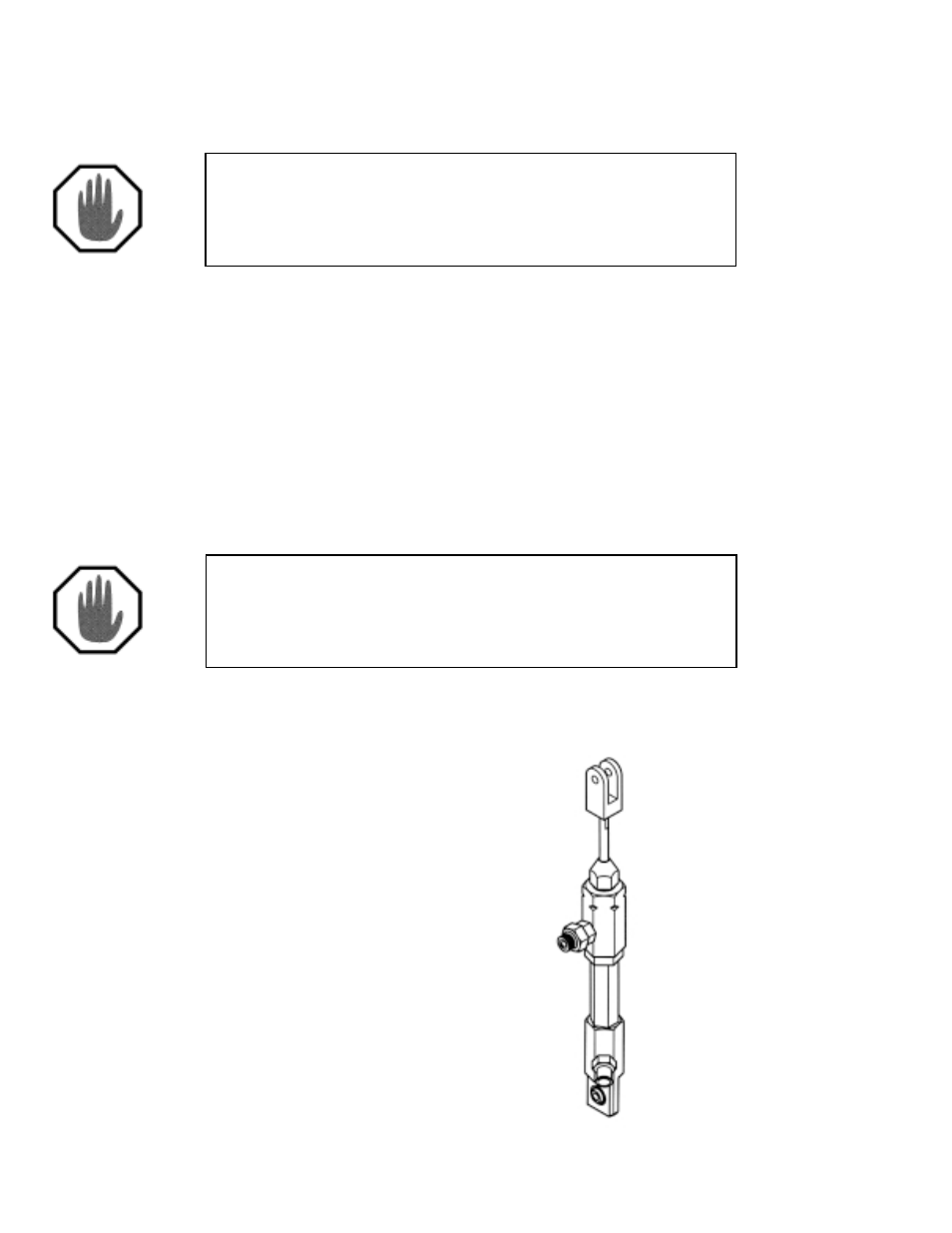

Fig. 4.1
Offeset intake and outlet
ports one flat hex as
shown in figure.
