PAT-CCP-LS-0590 Chop Check Fluid Section Manual
Rev. 02/2012 Page | 24
24. Install the Priming Seal (PAT-CCP-0524) onto the Priming Piston (PAT-CCP-
0523).
25. Install the Priming Piston (PAT-CCP-0523) onto the end of the Priming Rod.
26. Install onto Hex Bolt (F-HB-04F-08) a Backup Washer (PAT-CCP-0528) then the
Relief Washer (PAT-CCP-0525) then the last Backup Washer (PAT-CCP-0528)
27. Thread the Hex Bolt (F-HB-04F-08) into the end of the Priming Rod.
28. Thread the four Tie Rods (PAT-CCP-0520) into the Outlet Body.
29. Apply a light coat of the appropriate grease to a new O-ring (O-E-032) then install
onto the Bell Frame (PAT-CCP- 0537).
30. Install the Inlet Bell Frame (PAT-CCP-0537) onto the end of the Tie Rods (PAT-
CCP-0520) over the Priming Piston. It is preferable to install the Bell Frame so
that the fitting ports are perpendicular to the pump outlet.
31. Thread the four Hex Nuts (F-HN-06C) onto the end of the Tie Rods to secure the
Bell Frame and pump assembly.

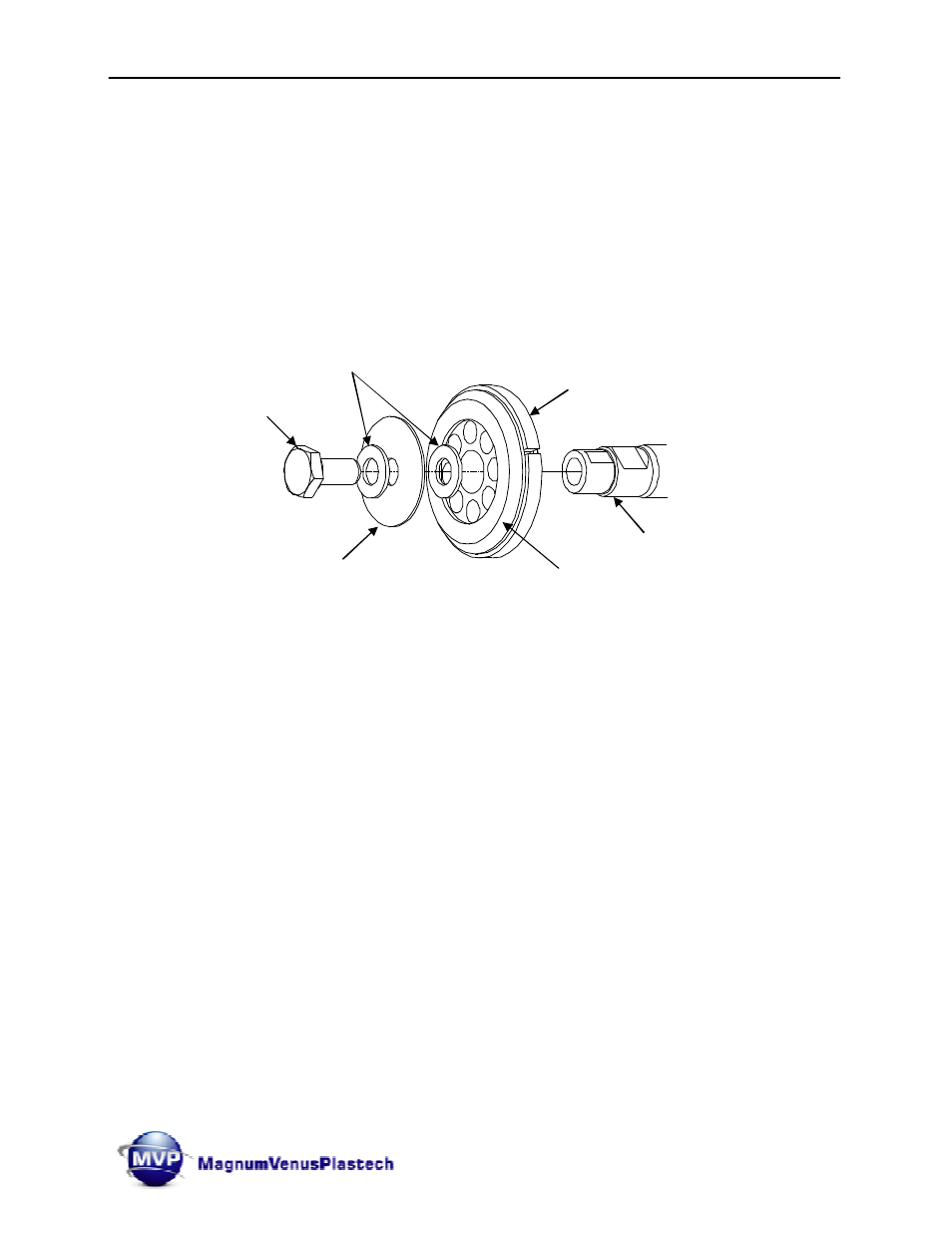

Priming Rod
Priming Seal (PAT-CCP-0524)
Priming Piston (PAT-CCP-0523)
Backup Washer
Relief Washer (PAT-CCP-0525)
Hex Bolt (F-HB-04F-08)
