PAT-CCP-LS-0590 Chop Check Fluid Section Manual
Rev. 02/2012 Page | 23
16. Install the Valve Stop (PAT-CCP-0530) over the Priming Rod into the end of the
Cylinder.
17. Install the Spacer into the end of the Cylinder on top of the Valve Stop.
18. Apply a light coat of the appropriate grease to the two Foot Valve Seals (PAT-
CCP-0536) and install them into the Intake Valve o-ring side facing up.
19. Install the Intake Bushing (PAT-CCP-0533) into the Valve Nut (PAT-CCP-0532).
20. Thread the Valve Nut (PAT-CCP-0532) into the Intake Valve.
21. Apply a light coat of the appropriate grease to the Priming Rod and in a threading
motion slide the Intake Valve assembly onto the Priming Rod.
22. Apply a light coat of the appropriate grease to a new O-ring (O-E-032) then install
onto the Lower Seat.
23. Install the Lower Seat into the end of the Cylinder the small chamfer side (seat)
should face in towards the Intake Valve.

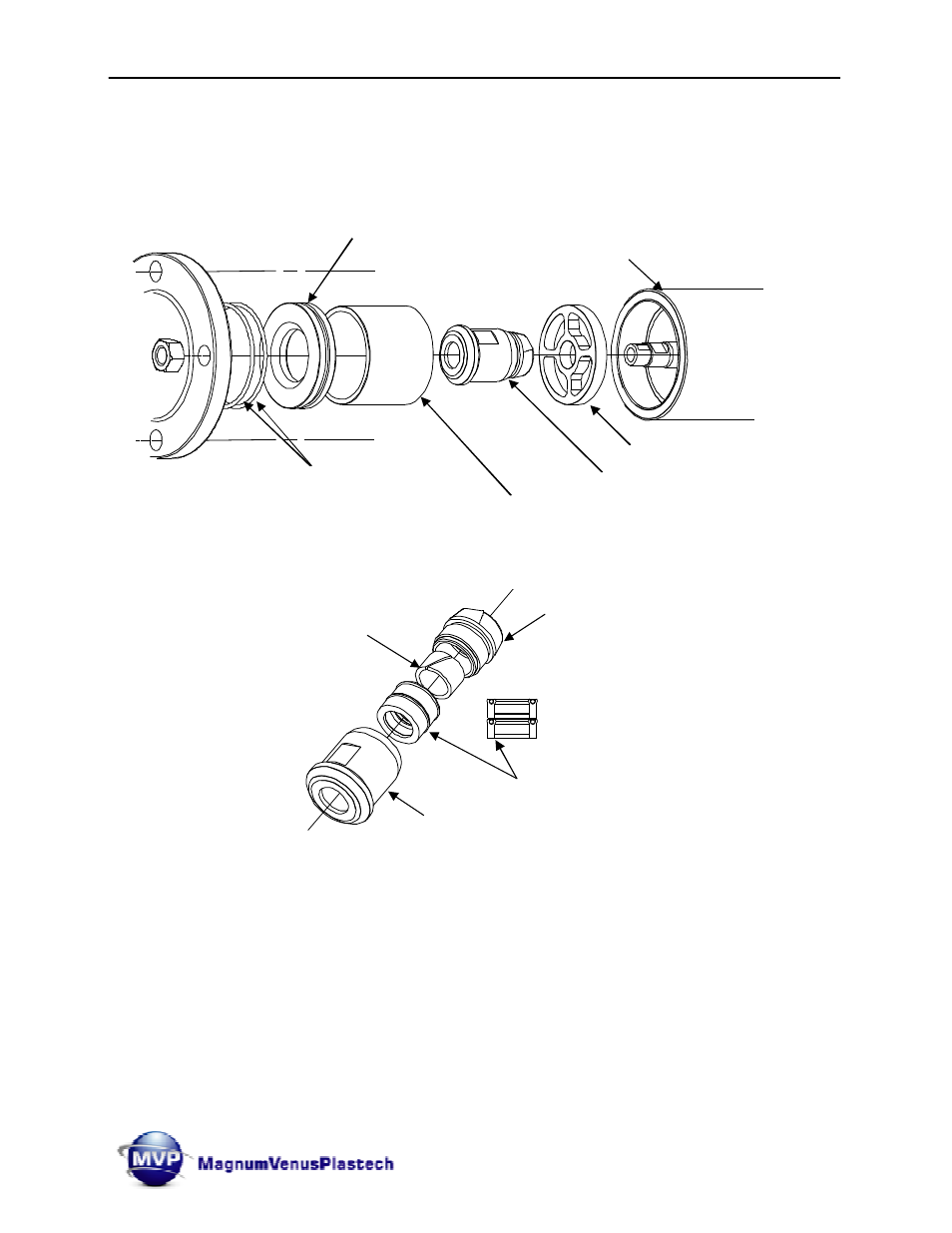

Valve Stop (PAT-CCP-530)
Intake Valve Assy.
Spacer
Cylinder
Spacer
O-Ring (O-E-032)
Foot Valve Seals (PAT-CCP-536)
Intake Bushing (PAT-CCP-533)
Valve Nut (PAT-CCP-532)
Intake Valve
