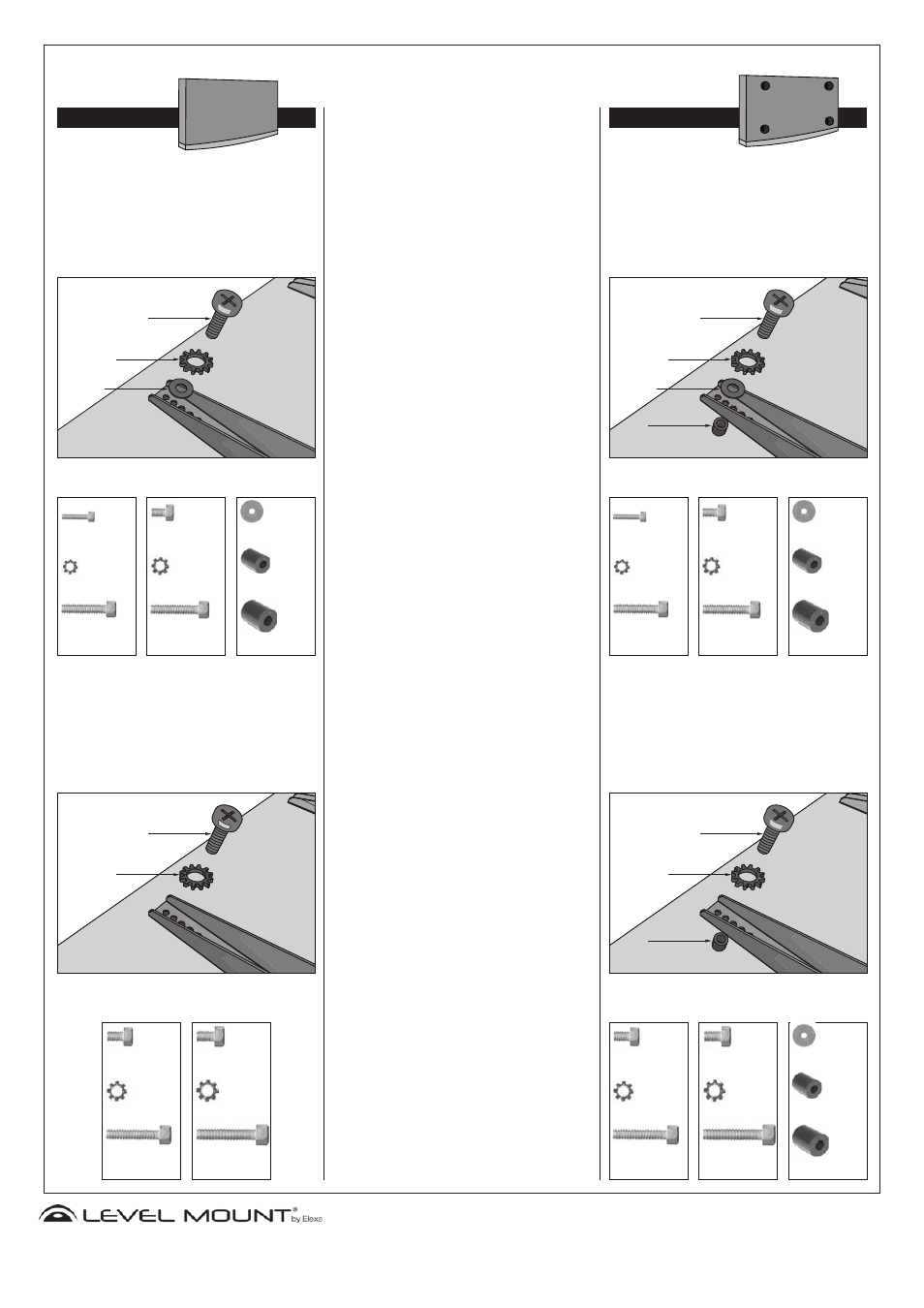

Attaching Monitor Bracket to a LCD/Plasma with:

FLAT BACK


Plasma/LCDs with a flat back panel will require a shorter
bolt. For a flat back Plasma/LCD that required a M4 or
M5 diameter bolt, thread a M4 x 12(A) or a M5 x 12(C)
bolt through the appropriate Lock Washer(L,M), an
M4/M5 Washer, the Tilt Arm and into the TV. Please see
Diagram 1 below for a detailed drawing. Tighten bolts
firmly with a Phillips screwdriver. Do not over tighten.

Diagram 1

Plasma/LCDs with a flat back panel will require a shorter
bolt. For a flat back Plasma/LCD that required a M6 or
M8 diameter bolt, thread a M6x12(E) or a M8x16(G) bolt
through the appropriate Lock Washer(N,O), the Tilt Arm
and into the TV. Please see Diagram 2 below for a detailed
drawing. Tighten bolts firmly with a Phillips screwdriver. Do
not over tighten.

Diagram 2

RECESSED BACK

Plasma/LCDs with a recessed back will require a longer
bolt with a spacer. For a recessed back Plasma/LCD that
required a M4 or M5 diameter bolt, thread a M4x30(B) or a
M5x30(D) bolt through the appropriate Lock Washer(M,N),
an M4/M5 Washer, the Tilt Arm, a M4/M5 Spacer(J) and
into the TV. Please see Diagram 5 below for a detailed
drawing. Tighten bolts firmly with a Phillips screwdriver.
Do not over tighten.

Diagram 5

Plasma/LCDs with a recessed back will require a longer
bolt with a spacer. For a recessed back Plasma/LCD that
required a M6 or M8 diameter bolt, thread a M6x35(F) or a
M8x40(H) bolt through the appropriate Lock Washer(N,O),
the Tilt Arm, a M6/M8 Spacer(J) and into the TV. Please
see Diagram 6 below for a detailed drawing. Tighten bolts
firmly with a Phillips screwdriver. Do not over tighten.

Diagram 6

A or C

L or M

I

Bag 2

(4x) Phillips

Screws

M5 x 12 Bolt

(4x) M5 Lock

Washer

(4x) Phillips

Screws

M5 x 30 Bolt

Bag 5

(4x) M4/M5

Washer

(4x) M4/M5

Spacer

(4x) M6/M8

Spacer

Bag 1

(4x) Phillips

Screws

M4 x 12 Bolt

(4x) M4 Lock

Washer

(4x) Phillips

Screws

M4 x 30 Bolt

E or G

N or O

B or D

L or M

I

J

F or H

N or O

J

Bag 2

(4x) Phillips

Screws

M5 x 12 Bolt

(4x) M5 Lock

Washer

(4x) Phillips

Screws

M5 x 30 Bolt

Bag 5

(4x) M4/M5

Washer

(4x) M4/M5

Spacer

(4x) M6/M8

Spacer

Bag 1

(4x) Phillips

Screws

M4 x 12 Bolt

(4x) M4 Lock

Washer

(4x) Phillips

Screws

M4 x 30 Bolt

Bag 4

(4x) Phillips

Screws

M8 x 16 Bolt

(4x) M8 Lock

Washer

(4x) Phillips

Screws

M8 x 40 Bolt

Bag 3

(4x) Phillips

Screws

M6 x 12 Bolt

(4x) M6 Lock

Washer

(4x) Phillips

Screws

M6 x 35 Bolt

Bag 5

(4x) M4/M5

Washer

(4x) M4/M5

Spacer

(4x) M6/M8

Spacer

Bag 4

(4x) Phillips

Screws

M8 x 16 Bolt

(4x) M8 Lock

Washer

(4x) Phillips

Screws

M8 x 40 Bolt

Bag 3

(4x) Phillips

Screws

M6 x 12 Bolt

(4x) M6 Lock

Washer

(4x) Phillips

Screws

M6 x 35 Bolt

www.LevelMount.com

1-888-229-1459

©2008 Level Mount

Patents Pending
