Impulse MAQ20 - Manual (Page 5)

Model Number
MAQ20-IO
MAQ20-VO
0-20mA or 4-20mA
0-10V, 0-5V, 0-2.5V, ±10V, ±5V, ±2.5V
Number of Channels
Per Channel Setup
Over-range
MAQ20-IO
MAQ20-VO
Compliance
MAQ20-IO
Load Resistance Range
MAQ20-IO
Current Limit
MAQ20-IO
Output Drive (Max Load)
MAQ20-VO
Output Protection
Continuous
Transient
8, isolated
Individually configurable for range,
default output, waveform
21.5mA
10.5V
15V
0 to 600Ω
26mA
10mA (1000Ω at 10V)
40Vrms max
ANSI/IEEE C37.90.1
CMV
Channel-to-Channel
CMR
300Vrms, 425VDC
75dB at 50Hz or 60Hz
Accuracy (1) ±0.04% Span
Bandwidth
Update Rate
Output Waveform
Waveform Definition
Update Rate
Power Supply Current
100Hz
1600 Ch/s
100 points per channel
10ms for 8-ch
450mA
Model Number
MAQ20-DIOL
MAQ20-DIOH
3 to 60 VDC input
3 to 60 VDC output, 3A
90 to 280 VAC/VDC input
24 to 280 VAC output, 3A
Number of Channels
Per Channel Setup
Input Protection
(Digital Input Channels)
Continuous
Transient
Output Protection
(Digital Output Channels)
Continuous
Transient
CMV
Channel-to-Channel
5 discrete input, 5 discrete output
Individually configurable for special
function, default output
70VDC max, reverse polarity protected
ANSI/IEEE C37.90.1
70VDC max, reverse polarity protected
ANSI/IEEE C37.90.1
300Vrms, 425VDC
I/O Special Functions
Pulse/Frequency Counter
Pulse/Frequency Counter
with De-bounce
Waveform Measurement
Time Between Events
Frequency Generator
PWM Generator
One-Shot Pulse Generator
Alarms
Scan Rate
Freq to 10kHz, count to 10M, RPM to 65k
Freq to 50Hz, count to 10M, RPM to 65k
Freq to 500Hz at 1% accuracy, 10kHz at 21%
accuracy; # periods, pulse width, period, duty cycle
Min, max, avg, selectable timebase
Up to 700Hz at 1% accuracy,
10kHz at 14% accuracy
Selectable timebase
100µs min, programmable pre- and post-delay
High / High-High / Low / Low-Low
3500 Ch/s
Power Supply Current 20mA
Analog Output Process Current and Voltage Output
Modules are offered with 4-20mA and 0-20mA process current
output or up to ±10V voltage output with drive capability; they control
motors, drive valves and perform many other crucial process opera-
tions. Up to eight channels of output on the modules results in physi-
cally small control systems and low cost per channel. Output modules
have each field-side channel galvanically isolated from all others to
eliminate common mode signal problems and offer maximum durability.
Signal ranges are user selectable and channels can be independently
configured to match the most demanding applications. Processing
power within each module allows users to enter waveshapes to output
to field devices. Power-on delay and default channel states guarantee
proper process performance upon startup and during power interrup-
tions. Field I/O connections are made through a pluggable terminal
block with positions provided for the termination of wiring shields.
Discrete Input/Output Modules have multiple channels of
input and output per module. Solid state circuits provide or interface to
discrete signals up to 60V and 3A. In addition to standard discrete I/O,
these modules provide advanced special functions including Pulse/
Frequency Counter with or without de-bounce, Waveform Measure-
ment, Time Between Events, Frequency Generator, PWM Generator,
and One-Shot Pulse Generator. Alarms can be set on the discrete
input channels.
Specifications: Analog Output Modules
Typical at T
A
= +25°C and +24VDC system power
Specifications: Discrete Input/Output Modules
Typical at T
A
= +25°C and +24VDC system power
(1) Includes linearity/conformity, hysteresis and repeatability.

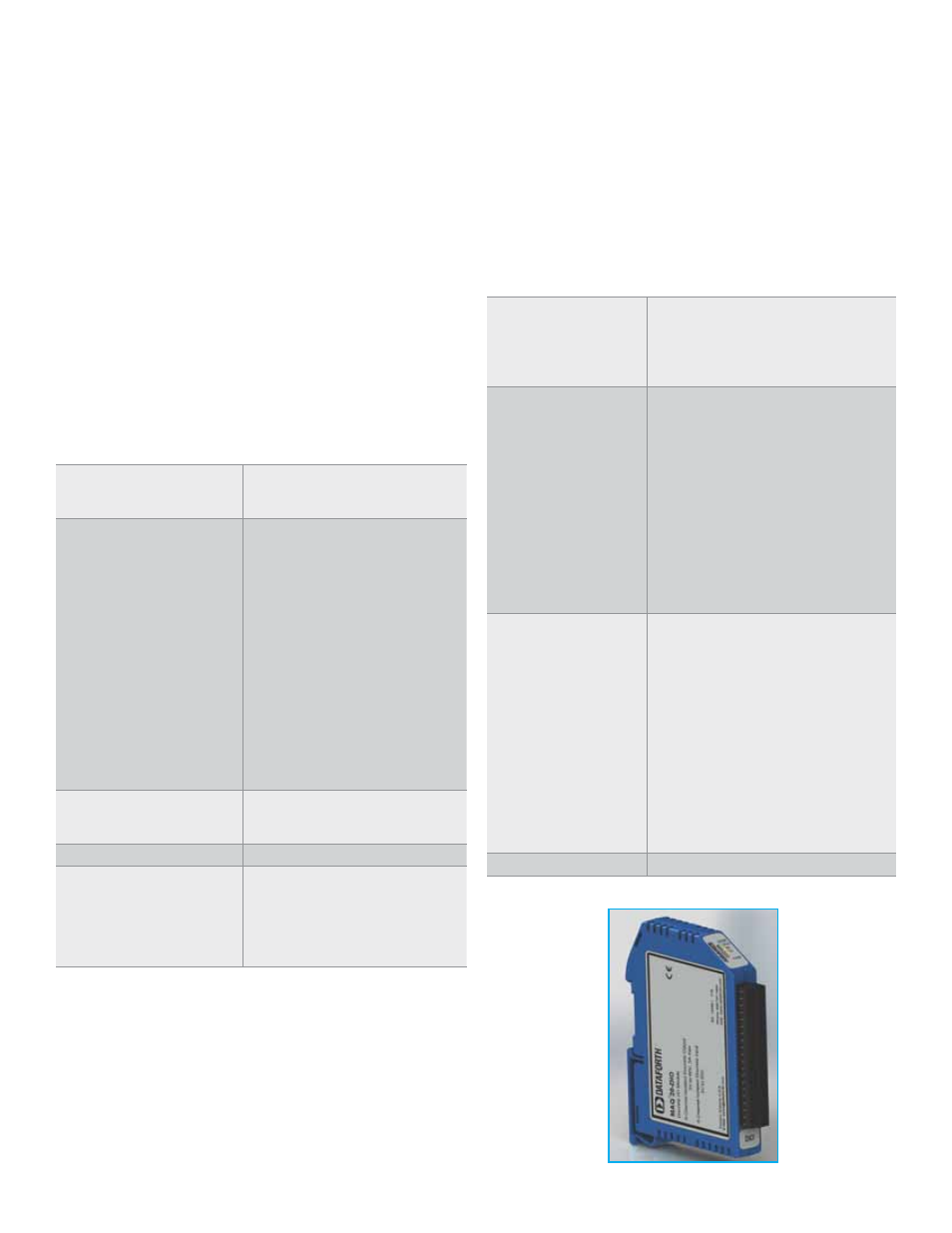

Discrete I/O Module
