Model Number
MAQ20-COM4
MAQ20-COM2
Ethernet, USB, RS-485
Ethernet, USB, RS-232
Communications
Ethernet
USB
RS-485
RS-232
10/100 Base-T, RJ-45, Modbus TCP
USB 2.0, Type B, Proprietary Modbus over USB
4-wire, up to 921.6kbps, RJ-12, Modbus RTU
up to 921.6kbps, RJ-12, Modbus RTU
Isolation 50V to bus
Power Supply
Input Power
Power to Bus
7-34VDC at 2A max
5VDC at 3A max
Communication Modules are offered in two models covering
standard industrial buses: Ethernet, RS-232, RS-485, and USB. Host
software interfaces to the system using the Modbus TCP or RTU
protocol. When using the Ethernet interface, up to four simultaneous
socket connections are supported and each socket can process up to
four simultaneous Modbus TCP transactions. Serial communications
over RS-232 or RS-485 can be run at baud rates as fast as 921.6kbps.
Another useful feature of the system is the capability to store acquired
data locally for later analysis. Each communication module has an easily
accessible and removable 4GB micro-SD memory card that can be
used to log data from all input modules.
To power the system, a 7-34VDC power source is connected to the
communication module. Regulated and protected supplies within the
module then provide power both to the internal circuits and to all mod-
ules in the system. When many high power I/O modules are used in a
system, load-sharing power boost modules can be installed in standard
I/O module slots to provide the necessary additional power.
Specifications: Communication Modules
Typical at T
A
= +25°C and +24VDC system power
Model Number
MAQ20-MVDN
MAQ20-VDN
MAQ20-VSN
MAQ20-IDN
MAQ20-ISN
MAQ20-JTC
MAQ20-KTC
MAQ20-TTC
MAQ20-RSTC
Description
8-ch, mV, Differential Input
±2.0V, ±1.0V, ±250mV, ±100mV, ±50mV
8-ch, V, Differential Input
16-ch, V, Single-Ended Input
±60V, ±40V, ±20V, ±10V, ±5V
8-ch, mA, Differential Input
16-ch, mA, Single-Ended Input
0-20mA or 4-20mA
8-ch, TC, Type J
–100°C to +760°C, 3 selectable ranges
8-ch, TC, Type K
–100°C to +1350°C, 3 selectable ranges
8-ch, TC, Type T
–100°C to +400°C, 3 selectable ranges
8-ch, TC, Type R and Type S
0°C to +1750°C
Per Channel Setup
CMR
NMR
Individually configurable for range, alarm limits,
averaging
100dB at 50Hz or 60Hz
30dB at 50Hz or 60Hz
Accuracy (1)
mV, V, mA Input
TC Input
±0.035% Span
±0.06% Span
Bandwidth
Scan Rate
Alarms
Open Input Response
TC Input
Cold Junction Compensation
Accuracy, +25°C
Power Supply Current
3Hz
200 Ch/s
High / High-High / Low / Low-Low
Upscale, Flag set
±0.25°C
30mA
Analog Input Modules
interface to a wide range of standard
industrial sensors and equipment, including volt, millivolt, milliamp,
thermocouple, RTD, potentiometer, strain gage and frequency. Four to
16 channels of input on the modules results in physically small control
systems and low cost per channel. Signal ranges are user selectable
and offered in both differential and single-ended configurations. Chan-
nels can be independently configured and alarms can be set to match
the most demanding applications.
Specifications: Process Voltage, Process Current
& Thermocouple Input Modules
Typical at T
A
= +25°C and +24VDC system power
(1) Includes linearity/conformity, hysteresis and repeatability. Does not include CJC accuracy.

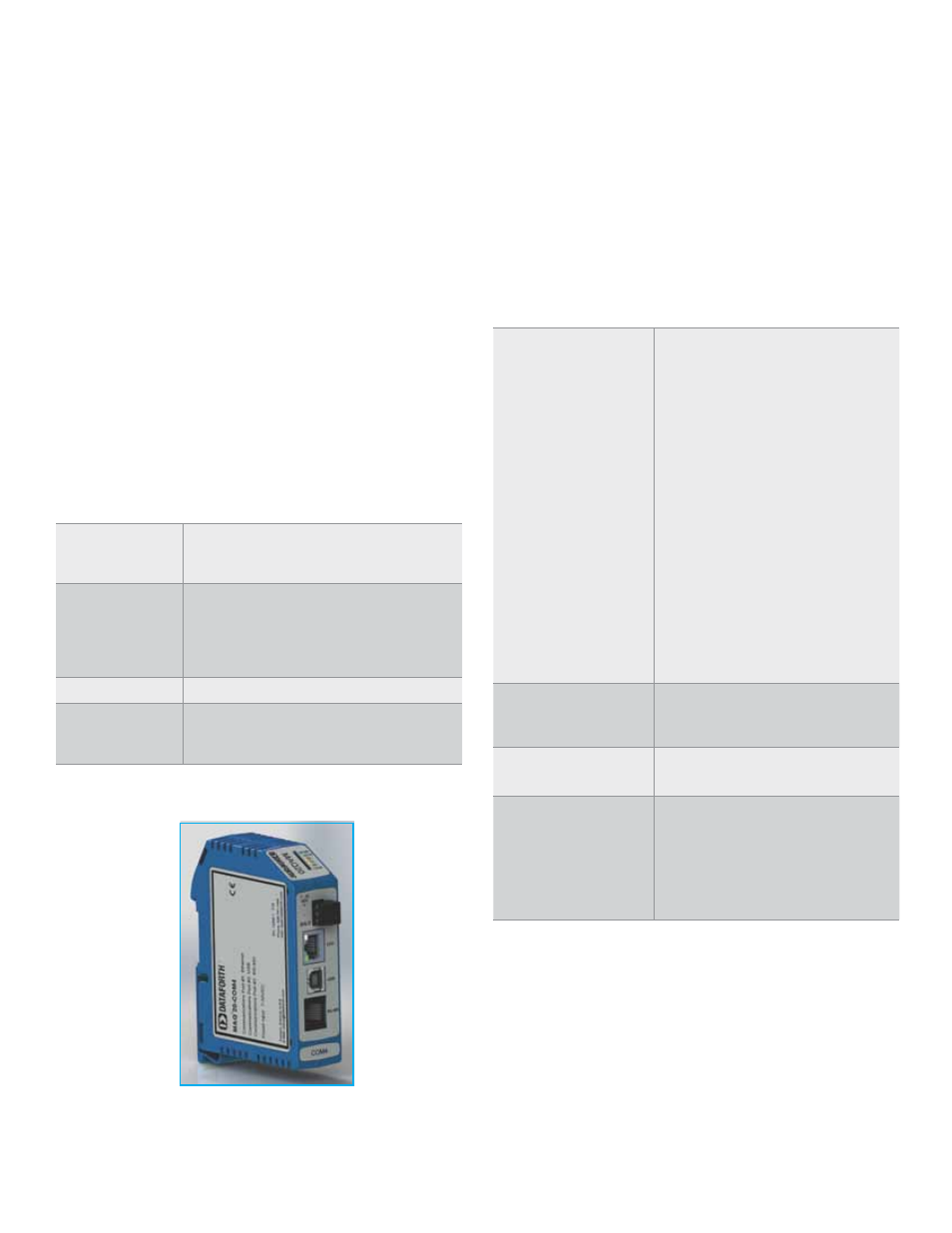

Communication Module
