Installation
Recommended alignment technique is to mount the NIR at the desired location and hold reflector about 2
or 3 feet in front of the unit and while watching the lights to assure that both remain lit, move backward
to the desired mounting location for the reflector. You may have to move the reflector up, down, left or
right to keep the reflector in the middle of the signal path. This assures the least troublesome set up by
keeping the reflector off the edges of the signal where any movement may take it out of alignment.
Note: the signal pattern is only 2 feet diameter.
Installer notes:
TROUBLE SHOOTING GUIDE
Ordering Information
NIR
Reflector-O
NIR-HD
Reflector-O-HD

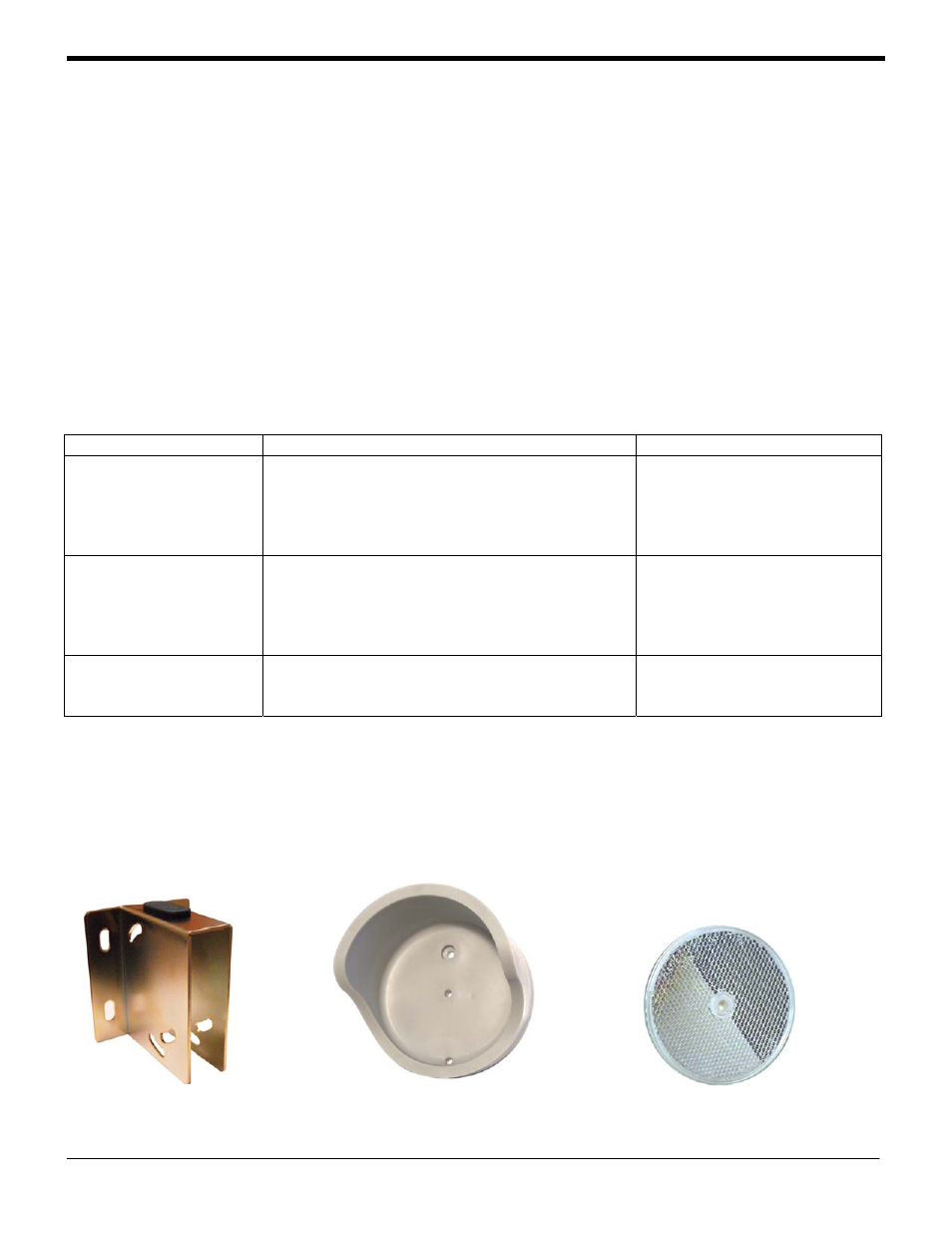

Accessories
NIR-HD
Reflector-O-HD Reflector-O
Symptoms Possible cause Possible Solution
Unit stays in detect Unit out of alignment
Reflector covered with dirt, dust, snow or
water
Water inside reflector Verify alignment
Clean reflector surface of
contaminants
Replace reflector
Add Reflector O-HD
No Output No power
Bad Connection, wires broken
Mis-wired Check Wiring as per chart on
page 2
Check connections
Verify wired to correct inputs
on operator
No Detection Unit not powered
Other reflective surface causing signal return
Check Power
Check surrounding area for
reflective surface
