SG • SG-D Barrier Gate Operator Installation Guide
- 24 -
P1277 Revision X2 8-11-2011

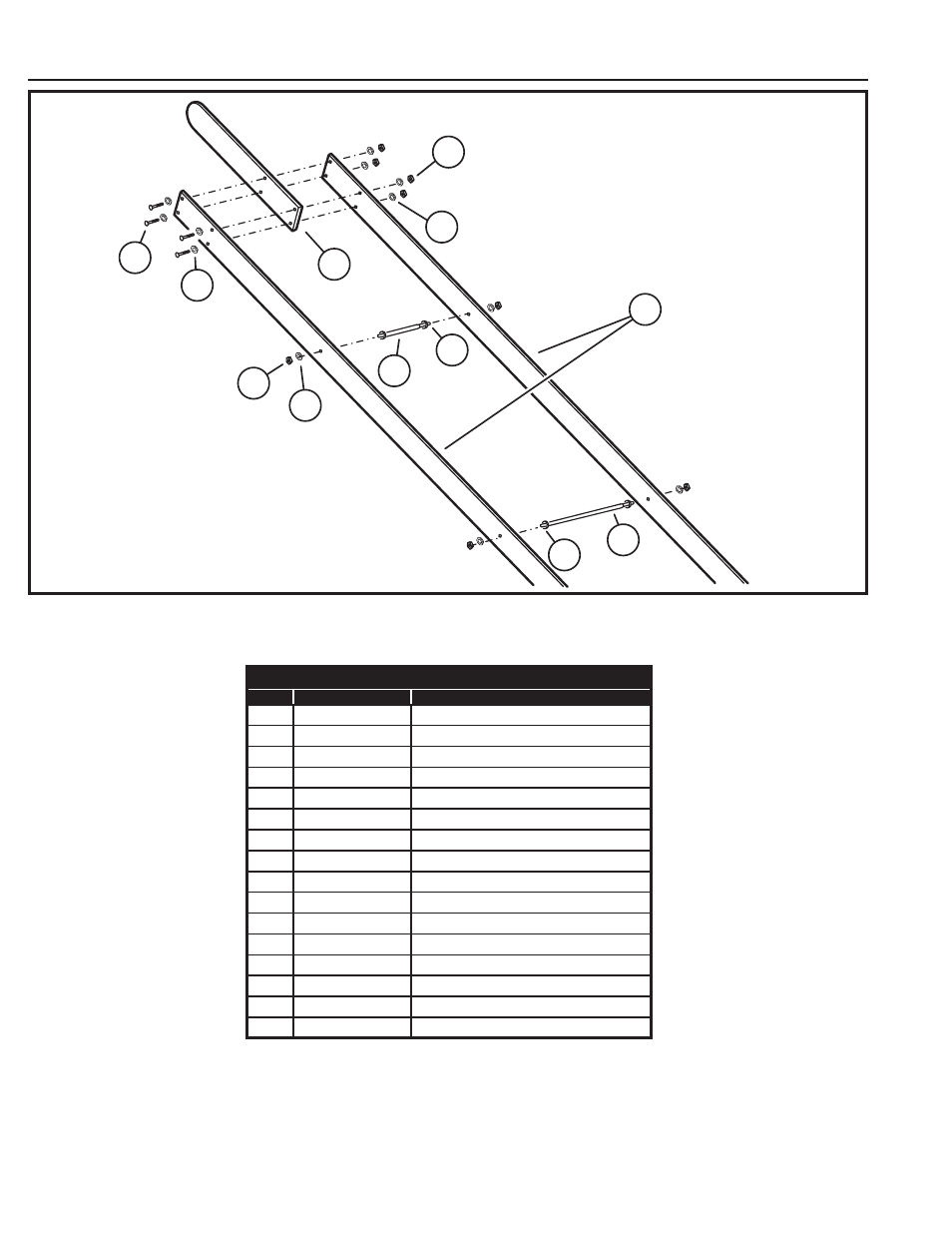

Model SG & SG-D Arm Parts List
1
2
3
4
5
6
7
8
9
10
11
12
MODEL SG & SG-D ARM PARTS LIST
REF. # PART # DESCRIPTION
2700-082 Arm Assembly, complete with hardware
2700-082-NOHDWE Arm Assembly, less hardware
2110-756 Hardware only
1 2100-495 Wood Arm, 1” x 6” x 16’ (2 required)
2 2100-496 Wood Extension Arm, 1” x 6” x 10’
3 2400-108 Screw, 3/8”-16 x 3” hex head
4 2400-017 Flat Washer, 3/8”
5 2400-016 Lock Washer, 3/8”
6 2400-015 Hex Nut, 3/8” -16
7 2400-418 Nylon Lock Nut, 1/2” - 13
8 2400-376 Flat Washer, 1/2”
9 2100-1917 Mechanical Tube, 8” long
10 2100-1963 Threaded Rod, 1/2” - 13 x 12” long
11 2100-1916 Mechanical Tube, 18” long
12 2100-1962 Threaded Rod, 1/2” - 13 x 22” long
2300-663 Yellow/Black 2” Caution Tape, per yard
