SG • SG-D Barrier Gate Operator Installation Guide
- 22 -
P1277 Revision X2 8-11-2011

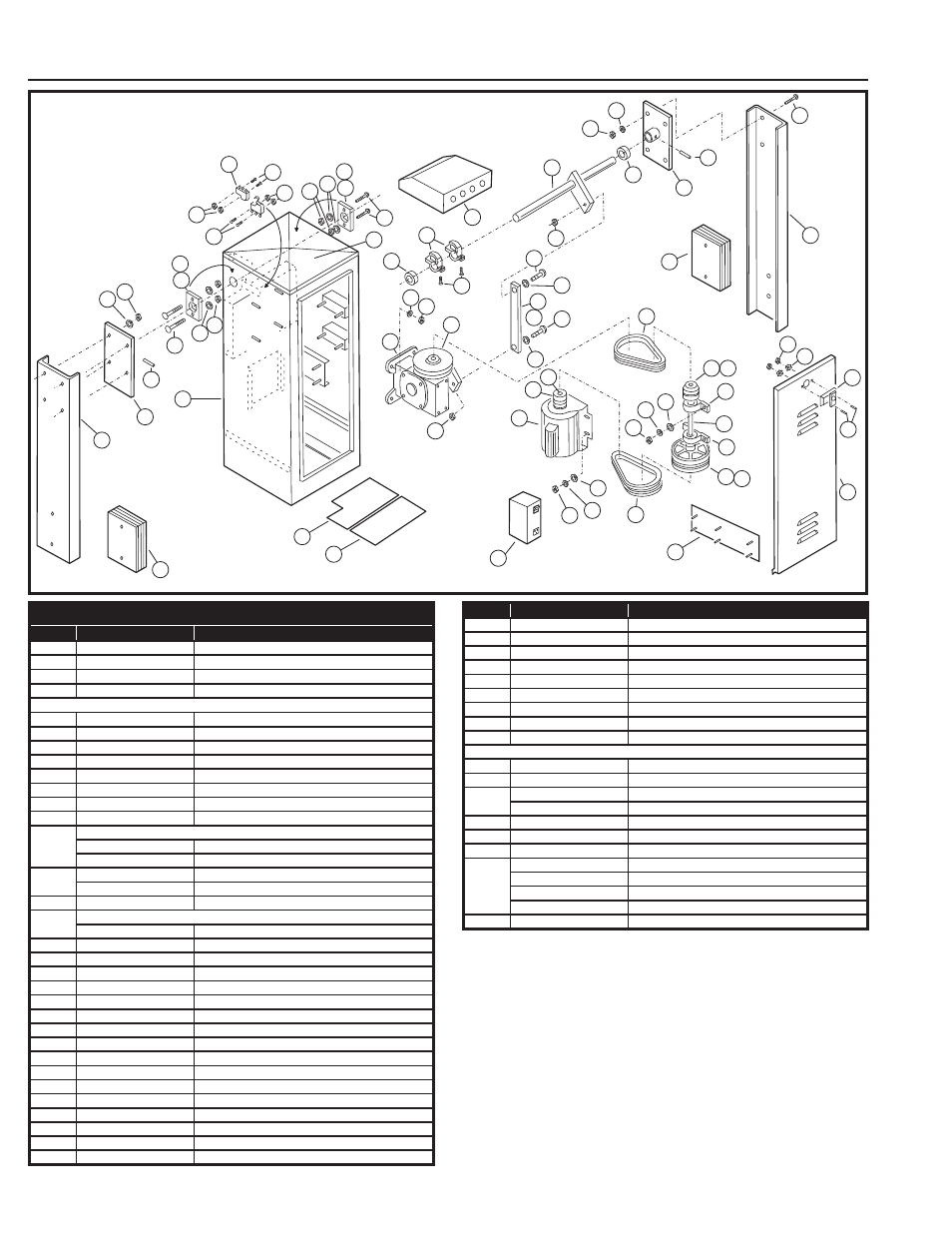

Model SG Exploded View
9
10
47
30
34
2
1
29
47
30
6
11
42
40
40
42
38
30
47
6
11
29
33
43
44
58
65
19
21
7
33
59
56
55
12
26 56
55
28
59
72
73
71
74
24
22
62
54
53
5
52
80
50
63
64
17
23
51
60
31
47
30
18
60
25 61
8
8
34
30
47
46
9
10
3
MODEL SG MECHANICAL PARTS LIST
REF. # PART # DESCRIPTION
1 2110-780* Enclosure only (without Door)
2 2100-2142* Removable Enclosure Top
3 2110-318* Louvered Door Assembly with Lock
2100-2141 Latch for Enclosure Top
* Specify color and texture
5 2220-008 Lock Assembly with Keys
6 2110-746 Bearing Block Assembly Kit
7 2110-034 Drive Shaft Assembly
8 2110-732 Gate Arm Flange
9 2100-1925-BT Arm Attachment Channel
10 2100-1926-BT Counterweight
11 2200-136 Flange Bearing only
12 2110-441 Connecting Link with Bearings
17
MOTORS & CAPACITORS
2500-2307 1/2 HP 115 VAC, 1 PH
2500-2308 1/2 HP 208/230 VAC, 1 PH
2500-2336 Capacitor for 2500-2307 Motor
2500-2337 Capacitor for 2500-2308 Motor
18 2100-364 Intermediate Shaft
19
GEAR REDUCER 75:1
2110-117 Gear Reducer and Crank Arm Assembly
21 2200-917 Reducer Pulley, 7” (2 required)
22 2200-918 Intermediate Pulley, 2” (2 reqiured)
23 2200-151 V-Belt, 25” (2 reqiured)
24 2200-235 Motor Pulley, 1-5/8”
25 2200-011 Intermediate Pulley, 6” (2 reqiured)
28 2200-208 V-Belt, 26” (2 reqiured)
29 2400-178 Carriage Bolt, 3/8”-16 x 1-1/2”
30 2400-015 Hex Nut, 3/8”-16
31 2400-017 Flat Washer, 3/8”
32 2400-182 Wing Nut, #10-32
33 2200-314 Set Collar, 1-1/4”
34 2400-474 Spring Pin, 3/8” x 2”
35 2400-043 Star Washer, #10
36 2400-032 Hex Nut, #10-32
37 2400-049 Screw, #8-32 x 3/8”, Self-tap
38 2500-764 Limit Switch
REF. # PART # DESCRIPTION
40 2400-246 Screw, #6-32 x 2-1/4”, Pan-head
42 2400-069 Keps Nut, #6-32
43 2300-028 Limit Cam
50 2400-238 Key, 3/16” x 3/16” x 1-1/4”
51 2400-254 Key 3/16” x 3/16” x 3”, Intermediate Shaft
55 2400-188 Thrust Washer
56 2400-165 Shoulder Bolt, 1/2”-13 x 2”
60 2200-222 Bearing, Pillow Block
61 2400-133 Key 1/4” x 1/4” x 2-1/4”, Intermediate Shaft
71 2100-1804 Rear Accessory Shelf
72 2100-1879 Power Box Mounting Plate
73
2510-422 115 VAC Power Box Assembly
2510-430 230 VAC Power Box Assembly
74 2100-1820 Front Accessory Shelf
2520-523 Wiring Harness Assembly (not shown)
77 2100-2143 Power Box Mounting Strap
80
2500-2393 APeX Module
2100-2104 APeX Mounting Plate
2300-1025 Plastic Cover Only
2510-423 Knob Kit
2400-343 1/4-20 Tinnerman Clip
