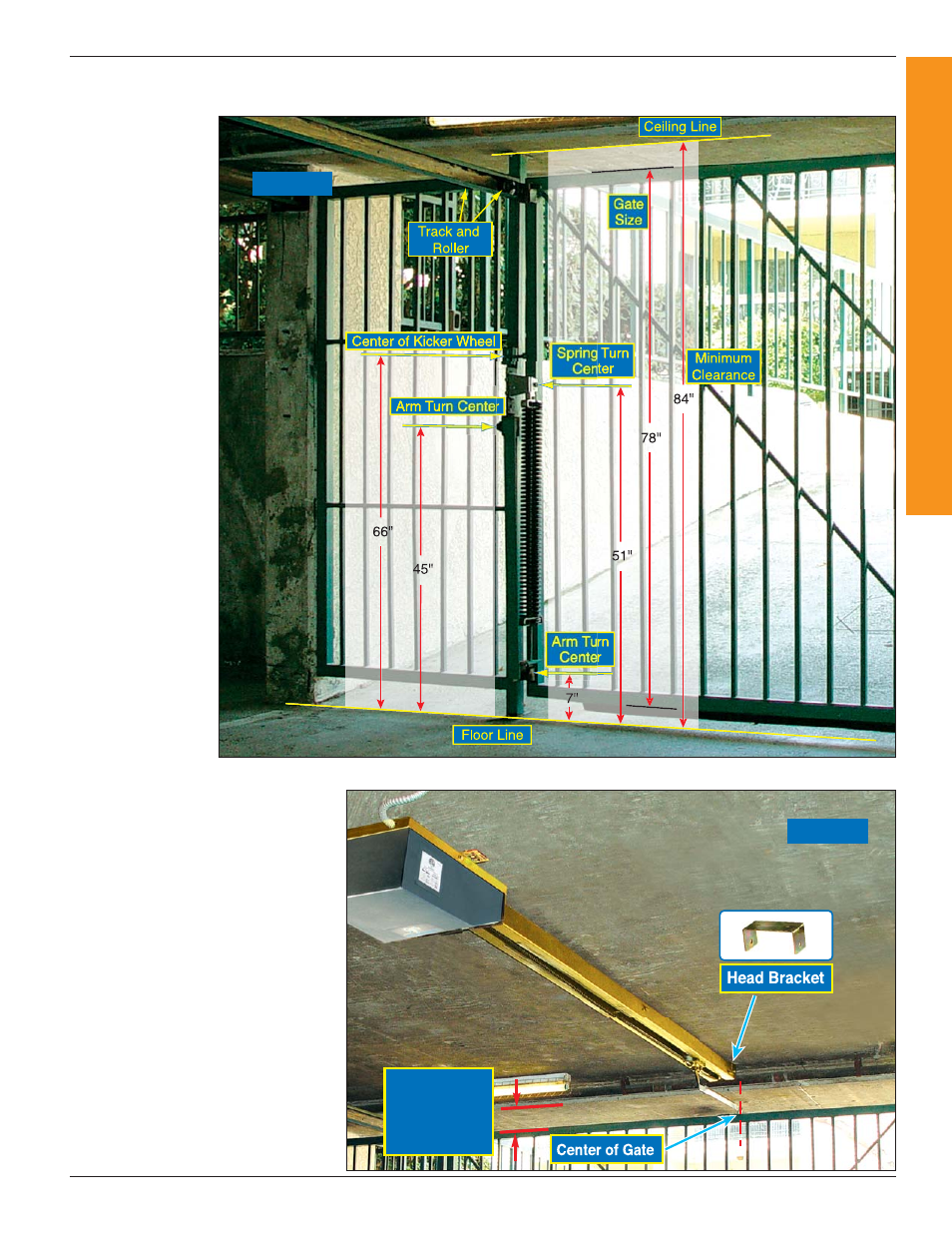

2. SAMPLE GATE HARDWARE:
3. HEAD BRACKET:
Install Head Bracket on the center
position of overall gate opening as
shown. Figure 4
Overhead Track must be centered
above gate and leveled from front
to back.
If Head Bracket is to be installed
onto concrete, use anchor bolts, if
metal, then weld.
Note :
Dimensions of
Installation of
gate hardware,
must be verified
with the gate
hardware
manufacturer.
Figure 3
4" clearance
between top
of gate and
opening
Figure 4
