11
www.ramsetinc.com
RAMSET
RAM 2000 UL
- 2100 UL
- 2200 UL
Opening
Pressing this button will cause the gate to open.
Stop
Pressing this button will cause the gate to
stop moving.
Closing
Pressing this button will cause the gate to close.
Reset E.R.D. Board
Push all three pushbuttons for approximately
5 seconds. All three L.E.D.’s should blink.
"Intelligate" Control Board

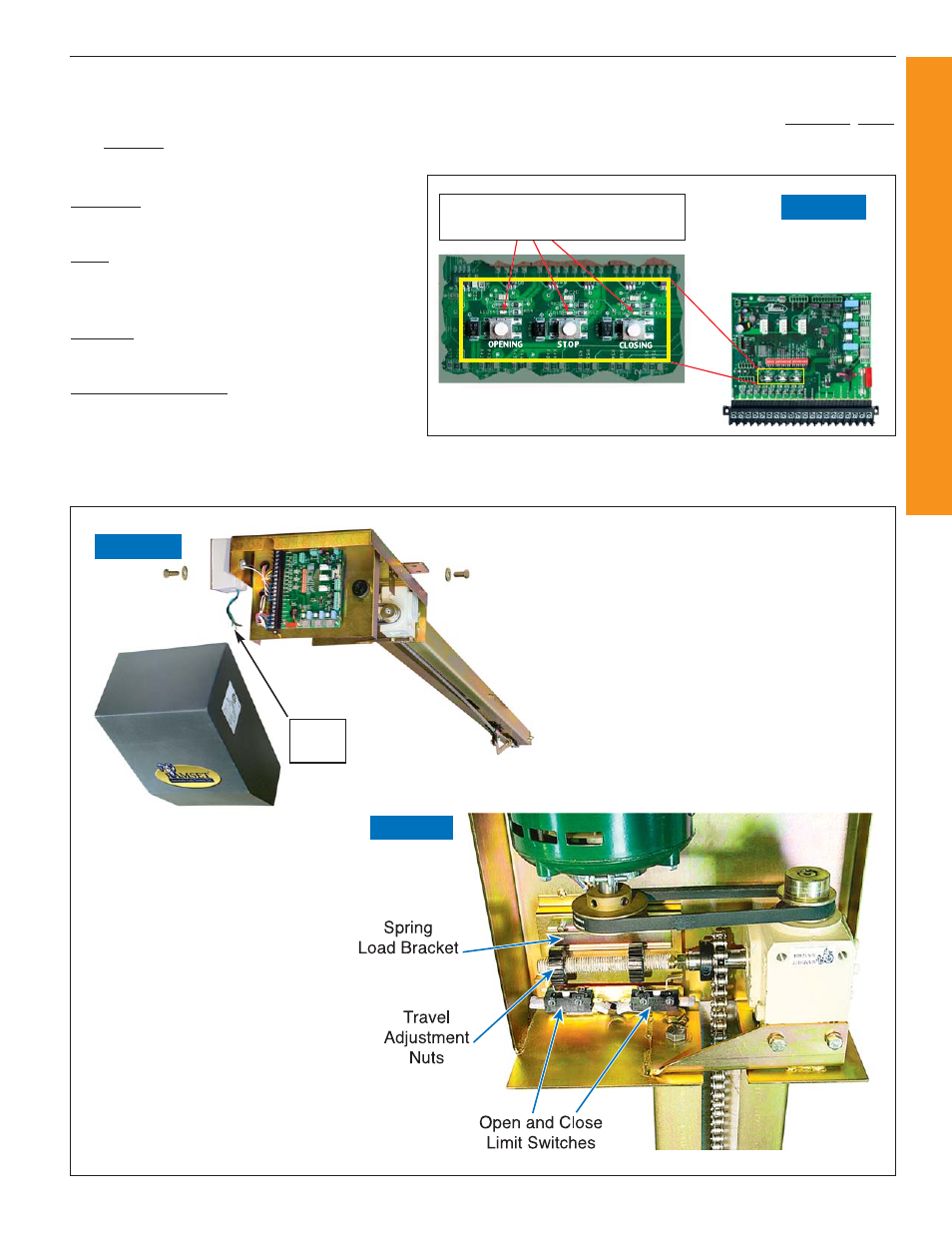

Three pushbuttons are located under the dip switches for operation of the gate (see Figure 9). The opening, stop
and closing buttons can be utilized to set limit switches and verify proper system operation when installing or
servicing an operator.
PUSHBUTTON CONTROLS
L.E.D.’s light up when Opening,
Closing or Stopped
Figure 10
Figure 12
Adjust the Open and Close Limit Switches to
their optimum position prior to attempting
to operating motor.
Remove polyethylene cover by removing the 2 bolts
on each side as shown. Eliminate the outlet leads
and hook up your 120/220 VAC wires direct to
outlet. Figure 11
Outlet
Leads
HOOKUP ELECTRICAL POWER AND GATE TRAVEL ADJUSTMENT
