INSTALLATION SPECIFICATIONS

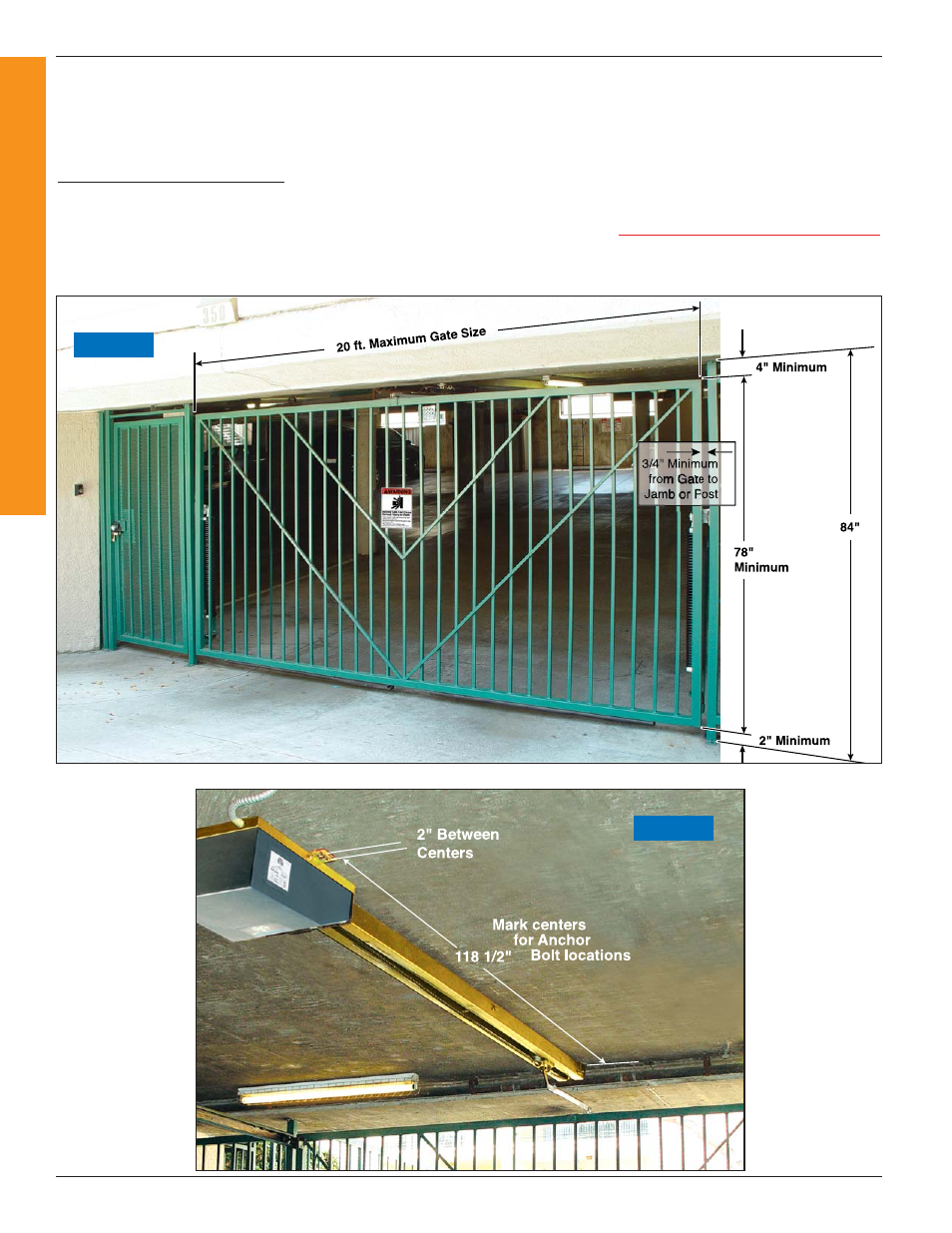

1. CLEARANCES:
Gate must be level and balanced prior
to installing gate springs, hardware,
and Overhead Operator. Jambs must
be installed on left and right sides of
opening. Jambs must be plumbed and
securely attached to both sides of wall. Between jamb and gate: 3/4" minimum.
Bottom of gate to driveway floor: 2"
minimum.
Top of gate to opening at top: 4" mini-
mum.
Maximum Gate Dimensions:
20' Wide, 78" Minimum Tall.
Consult building and safety standards.
Figure 1
Figure 2
Mark centers
for Anchor Bolts
as shown in
Figure 2
